Interface Overview

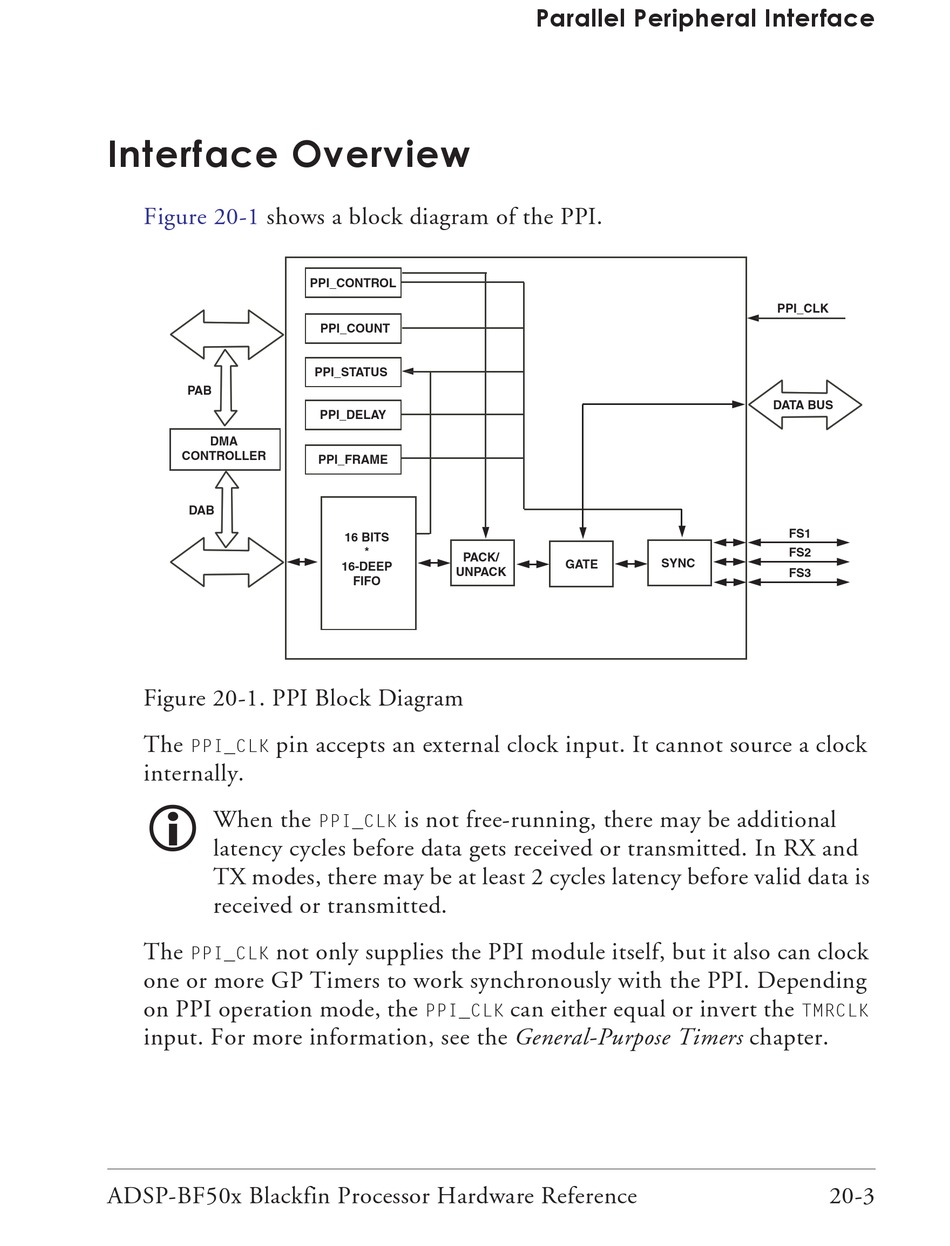

Figure 20-1 shows a block diagram of the PPI.
PAB
DMA
CONTROLLER
DAB
Figure 20-1. PPI Block Diagram
The pin accepts an external clock input. It cannot source a clock
PPI_CLK
internally.

When the
latency cycles before data gets received or transmitted. In RX and
TX modes, there may be at least 2 cycles latency before valid data is
received or transmitted.
The not only supplies the PPI module itself, but it also can clock
PPI_CLK
one or more GP Timers to work synchronously with the PPI. Depending
on PPI operation mode, the
input. For more information, see the General-Purpose Timers chapter.
