Gpio Mask Interrupt Set Registers (Portxio_Maska/B_Set) - Analog Devices ADSP-BF506F Hardware Reference Manual

Memory-Mapped GPIO Registers
GPIO Mask Interrupt Set Registers
(PORTxIO_MASKA/B_SET)
GPIO Mask Interrupt A Set Registers (PORTxIO_MASKA_SET)
For all bits, 1 - Set
Set Px15 Interrupt A
Enable
Set Px14 Interrupt A
Enable
Set Px13 Interrupt A
Enable
Set Px12 Interrupt A
Enable
Set Px11 Interrupt A
Enable
Set Px10 Interrupt A
Enable

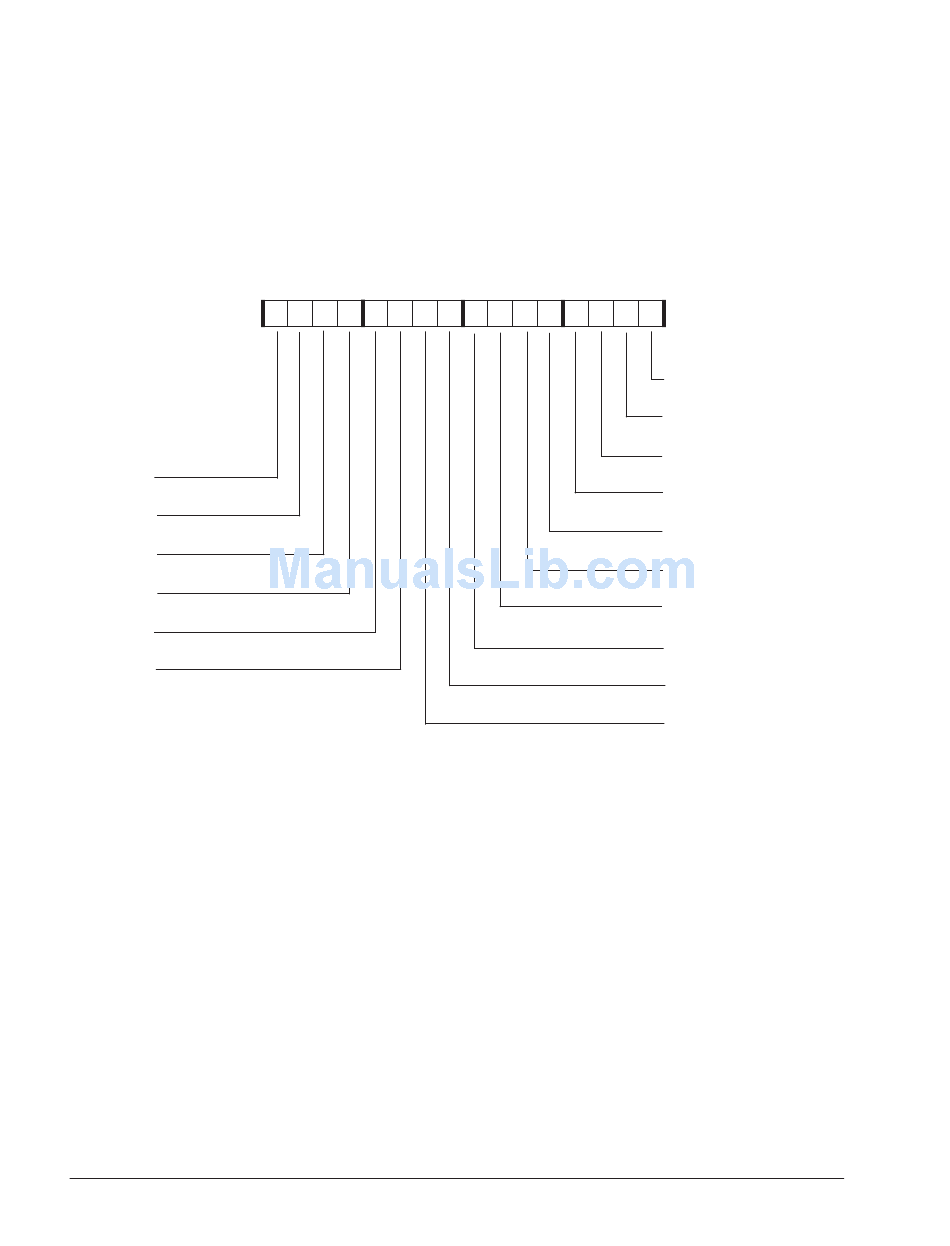

Figure 9-25. GPIO Mask Interrupt A Set Registers
9-36
15 14 13 12 11 10 9 8
0 0 0 0 0 0 0 0
ADSP-BF50x Blackfin Processor Hardware Reference
7 6 5 4 3 2 1 0
0 0 0 0 0 0 0 0 Reset = 0x0000
Set Px0 Interrupt A
Enable
Set Px1 Interrupt A
Enable
Set Px2 Interrupt A
Enable
Set Px3 Interrupt A
Enable
Set Px4 Interrupt A
Enable
Set Px5 Interrupt A
Enable
Set Px6 Interrupt A
Enable
Set Px7 Interrupt A
Enable
Set Px8 Interrupt A
Enable
Set Px9 Interrupt A
Enable
