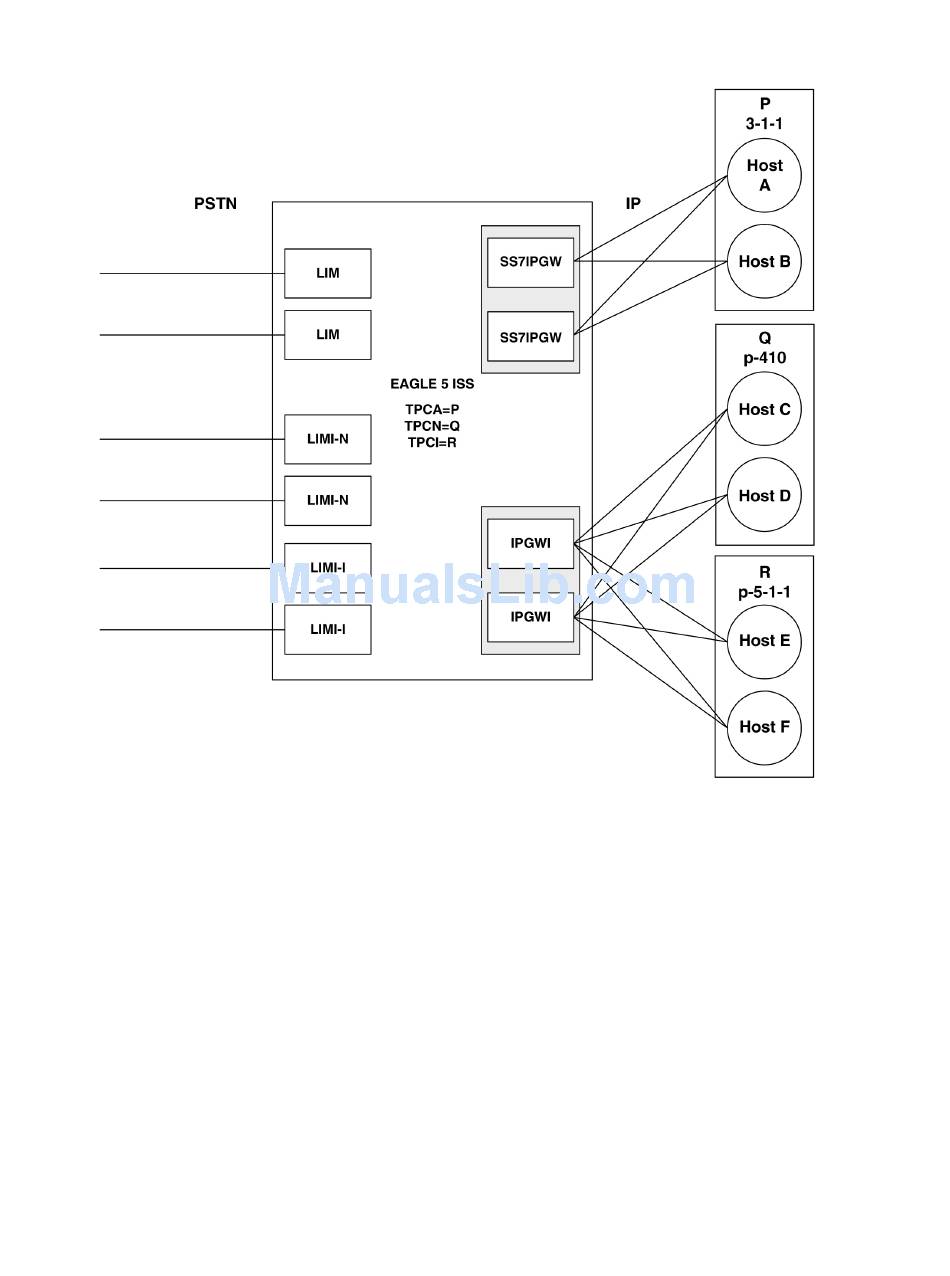

Figure 87: Three Multiple-Element End Office Nodes

Mated Pair Supports Two End Office Nodes
Figure 88: Mated Pair Supports Two End Office Nodes
EAGLE 5 ISS supporting an End Office Node. Note that EAGLE 5 ISS P lacks IP links to IPNE-Q and
EAGLE 5 ISS Q lacks IP links to IPNE-P, since such links would conflict with the C-links of linkset pq.
910-6278-001 Revision A, January 2012
depicts a mated pair of EAGLE 5 ISSs with each
End Office Support
