Database Administration Manual - IP7 Secure
Gateway

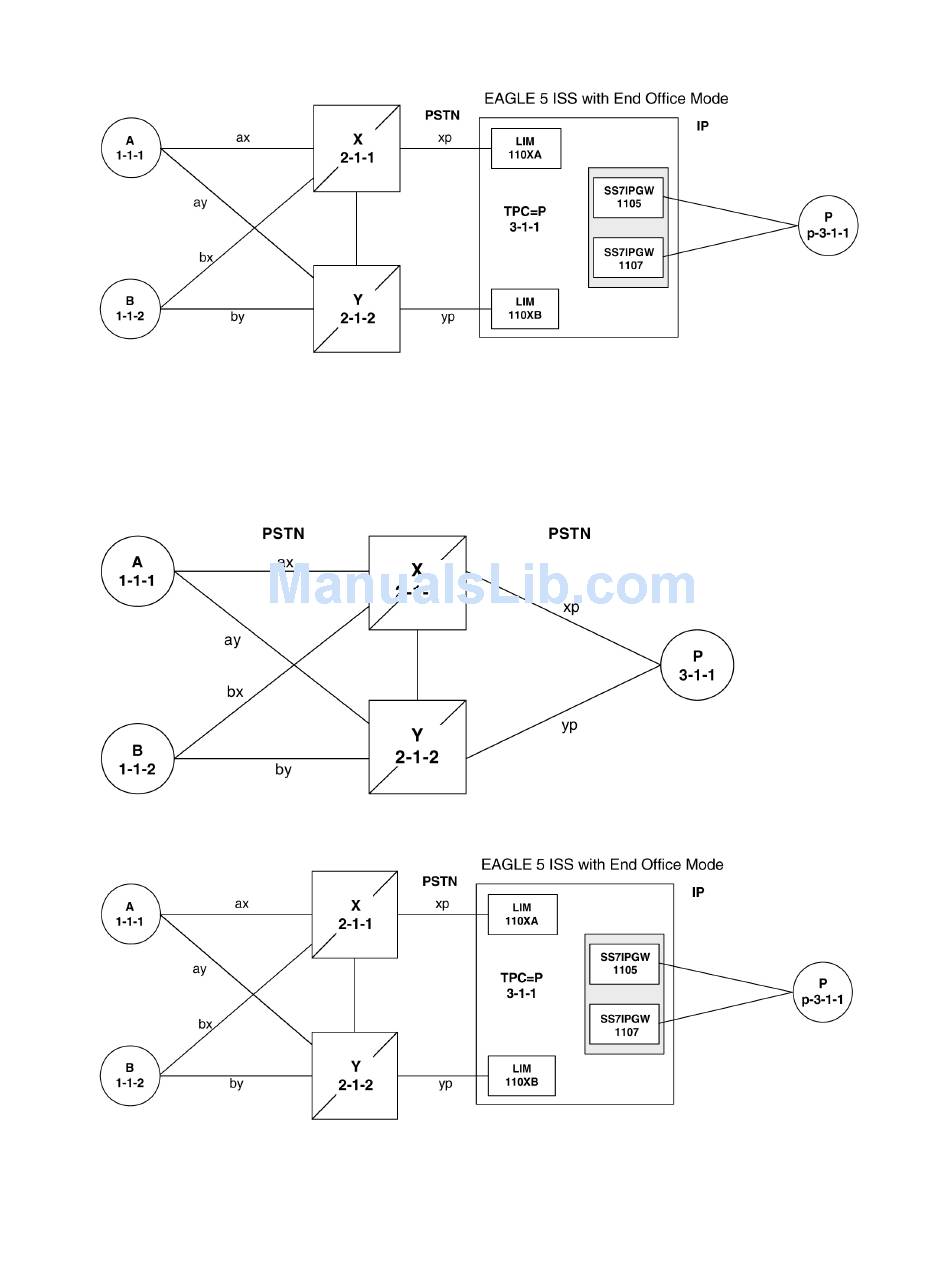

Figure 79: An EAGLE 5 ISS with End Office Support and VXI Node

One Node Migrates from PSTN to IP

Figure 80: Network Before an EAGLE 5 ISS with End Office, Node P is to Migrate

After an EAGLE 5 ISS with End Office, Node P has Migrated
from the PSTN to an IP network using the EAGLE 5 ISS with the End Office Support feature.
Figure 80: Network Before an EAGLE 5 ISS with End Office, Node P is to Migrate

Figure 81: Network After an EAGLE 5 ISS with End Office, Node P has Migrated

910-6278-001 Revision A, January 2012
and
depict the migration of a signaling end point
End Office Support
Figure 81: Network
628
