6. Put the defective PDU board into an anti-static bag.
7. Install the replacement PDU board and secure it with the six screws (4) (cross-head screwdriver).
4

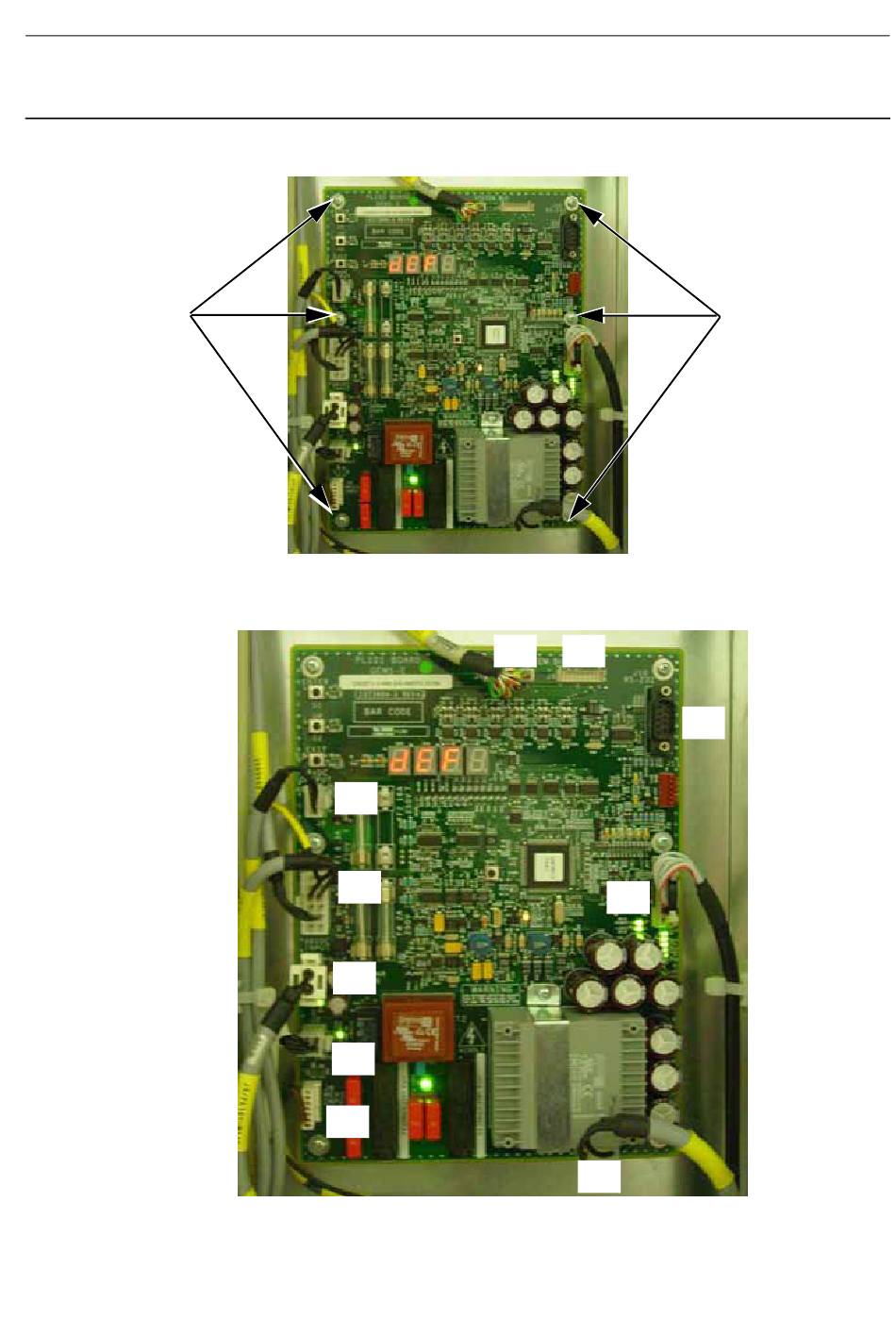

8. Connect all the cables to the new PDU board as summarized in the diagram and table below. To
avoid potential EMC interference ensure that all the cables are routed around (away from) the PDU
board.
JC-DR-A-191.fm
Service Information and Procedures Class A 2385072-16-8EN
J8
J6
J7
J5
J2
J4
Page no. 1139
Job Card D/R A191 - PDU Board
4
J9
J10
J3
J1
