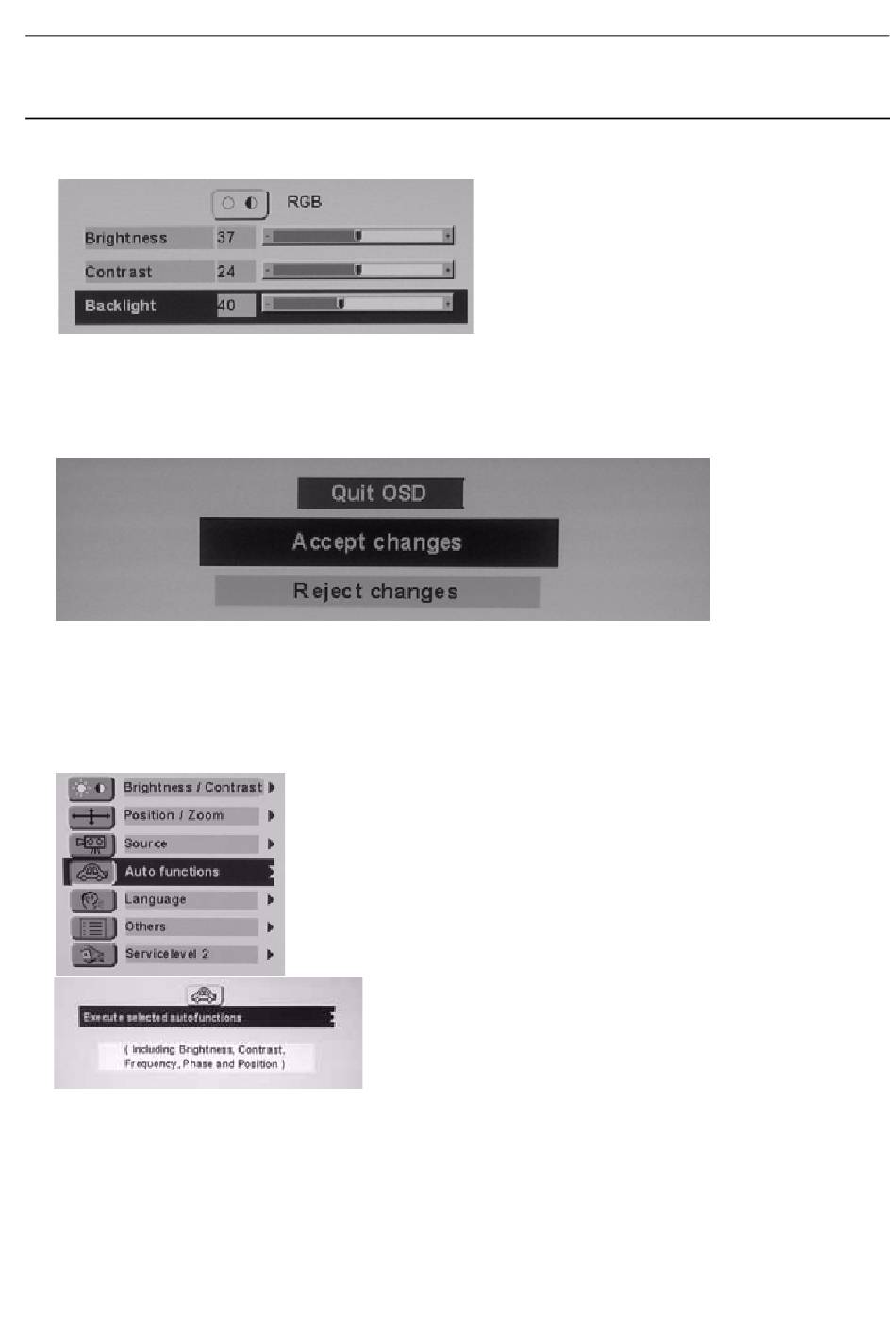

9. Perform a monitor backlight adjustment, as follows:
a. Stay in the RGB menu, and keep pressing the MENU button until Backlight is selected.
b. With the luminance meter positioned on the central white level square of the SMPTE pattern (see
the image in section
menu so that the luminance of the white level meets the target luminance of 400 cd/m² ±10 cd/m².
10. Keep pressing the SET button until Accept changes is selected, then press the UP button to exit and
save the settings.
7-6-2 18" Monitor and V1/V2 Control Station
1. The SMPTE pattern is already displayed on the AWS Monitor. If not, refer to
the SMPTE pattern.
2. Press the MENU button to access the OSD main menu, then keep pressing the MENU button until
Auto functions is selected. Press the UP button to enter the Auto functions menu. Press the UP but-
ton again to perform an auto-calibration.
The auto-calibration takes place.
3. Press the MENU button to access the OSD main menu, then keep pressing the MENU button until
JC-ELE-A-043.fm
Service Information and Procedures Class A 2385072-16-8EN
7-4), use the UP/DOWN buttons to adjust the Backlight value of the RGB
Page no. 739
Job Card ELE A043 - AWS Monitor Calibration
section 7-4
