GE Healthcare
Revision 1
Job Card D/R A233 - Lift Screw Assembly Top Brake

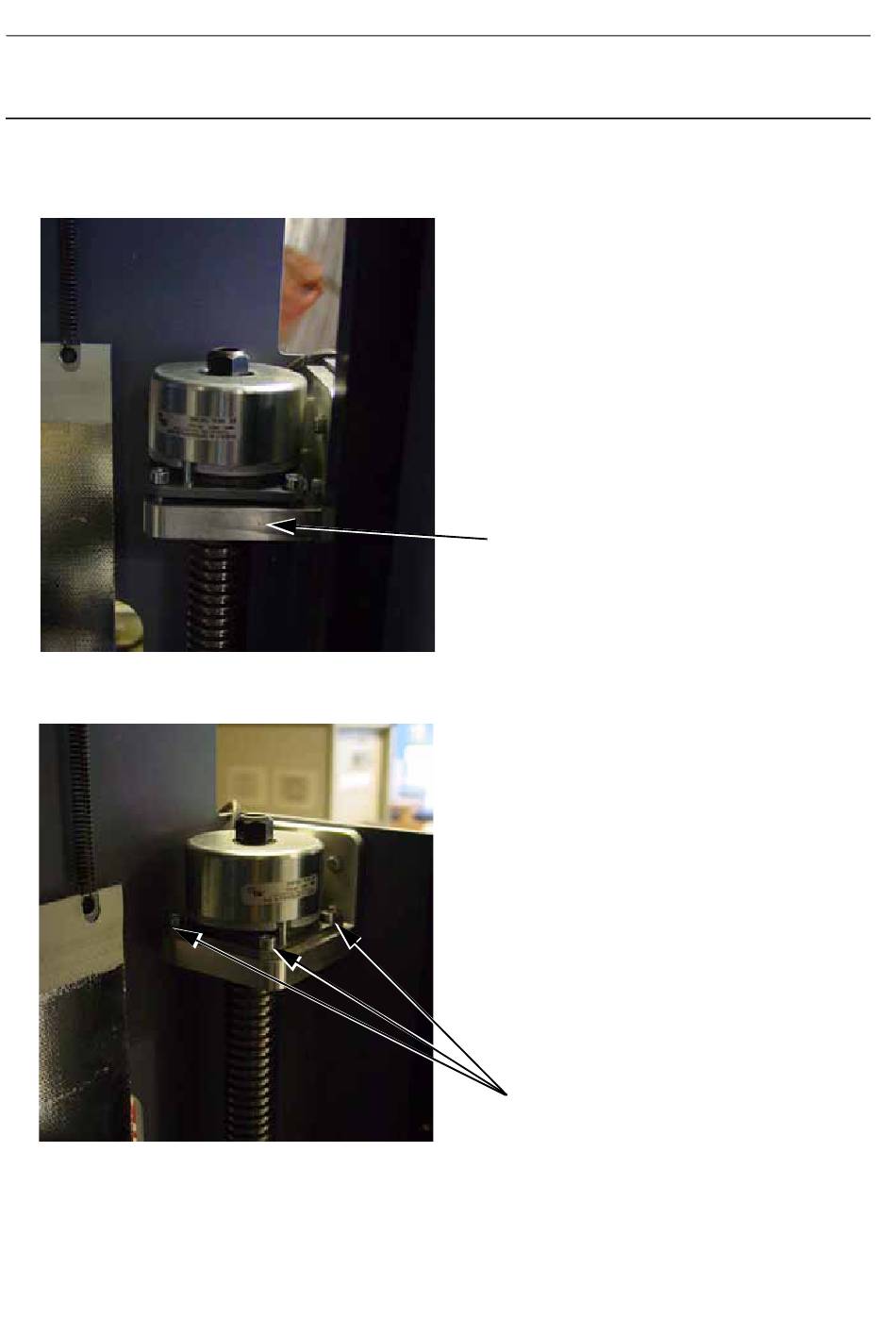

3. Lower the Lift screw Assembly Top Brake (2) down on to the top of the Lift screw Assembly, and
ensure that the holes (4) in the Lift screw Assembly Top Brake align with the threaded holes of the
bracket (5). You may need to move the Lift Screw Assembly Top Brake until each side is flush to the
bracket.
4. Secure the Lift Screw Assembly Top Brake to the bracket with the four allen screws (6) (4 mm allen
wrench). Progressively tighten the opposite corners together so that equal pressure is applied to the
fixations between the bracket and the Lift Screw Assembly Top Brake.
5. Connect the Lift screw Assembly Top Brake cable (W510) to the J6 connector on the Lift Board, and
Chapter 9
Service Information and Procedures Class A 2385072-16-8EN
5
6
Page no. 1284
Senographe DS
JC-DR-A-233.fm
- Quick Links:
- Err Sub A001 - Generator Error...
Hide quick links:
Advertisement
Table of Contents
Troubleshooting
Need help?
Do you have a question about the Senographe DS and is the answer not in the manual?
Questions and answers
G.E.Essential l have recently bought What is the full weight.of the mamo Full weight of the console and other İtem's also measurements of each item with the main machine please All this Shipping Company required
The GE Senographe DS mammography machine is shipped in three crates with the following dimensions and weights:
- Crate 1 (Gantry, Generator Cabinet, and ramp):
- Dimensions: 2066 mm (81.34 in) depth × 848 mm (33.39 in) width × 2292 mm (90.24 in) height
- Mass: 641 kg (1410.2 lbs)
- Crate 2 (Control Station):
- Dimensions: 1110 mm (43.70 in) depth × 770 mm (30.31 in) width × 1850 mm (72.83 in) height
- Mass: 210.5 kg (464.07 lbs) for truck transport (without side covers and lid)
- Mass: 223.5 kg (492.73 lbs) for plane/boat transport (with side covers and lid)
- Crate 3 (Detector):
- Dimensions: 872 mm (34.33 in) depth × 2270 mm (89.37 in) width × 260 mm (10.24 in) height
- Mass: 104.4 kg (229.68 lbs)
### Total Mass:
- For truck transport: 641 + 210.5 + 104.4 = 955.9 kg (2104.95 lbs)
- For plane/boat transport: 641 + 223.5 + 104.4 = 968.9 kg (2133.61 lbs)
These values include the gantry, generator cabinet, control station, detector, and all related components.
