Job Card D/R A401 - Generator CPU Board 400PL3
6
PROCEDURE
6-1
Remove Existing EEPROMs
Remove the existing EEPROMs from the Generator Board CPU as explained
Existing EEPROMs on the Generator CPU Board on page 1627
Board CPU
EEPROMs.
6-2
Removing the Original Generator CPU Board
1. Switch off the electrical power supply from the Mains Distribution Panel in the room. Apply an appro-
priate LOTO padlock and label. Wait 10 minutes for the components within the Generator to dis-
charge.
2. Remove the Generator front panel (CPU side) to reveal the Generator CPU board 400PL3; refer to
Job Card PHY A042 - Remove/Reinstall Generator Covers on page
1

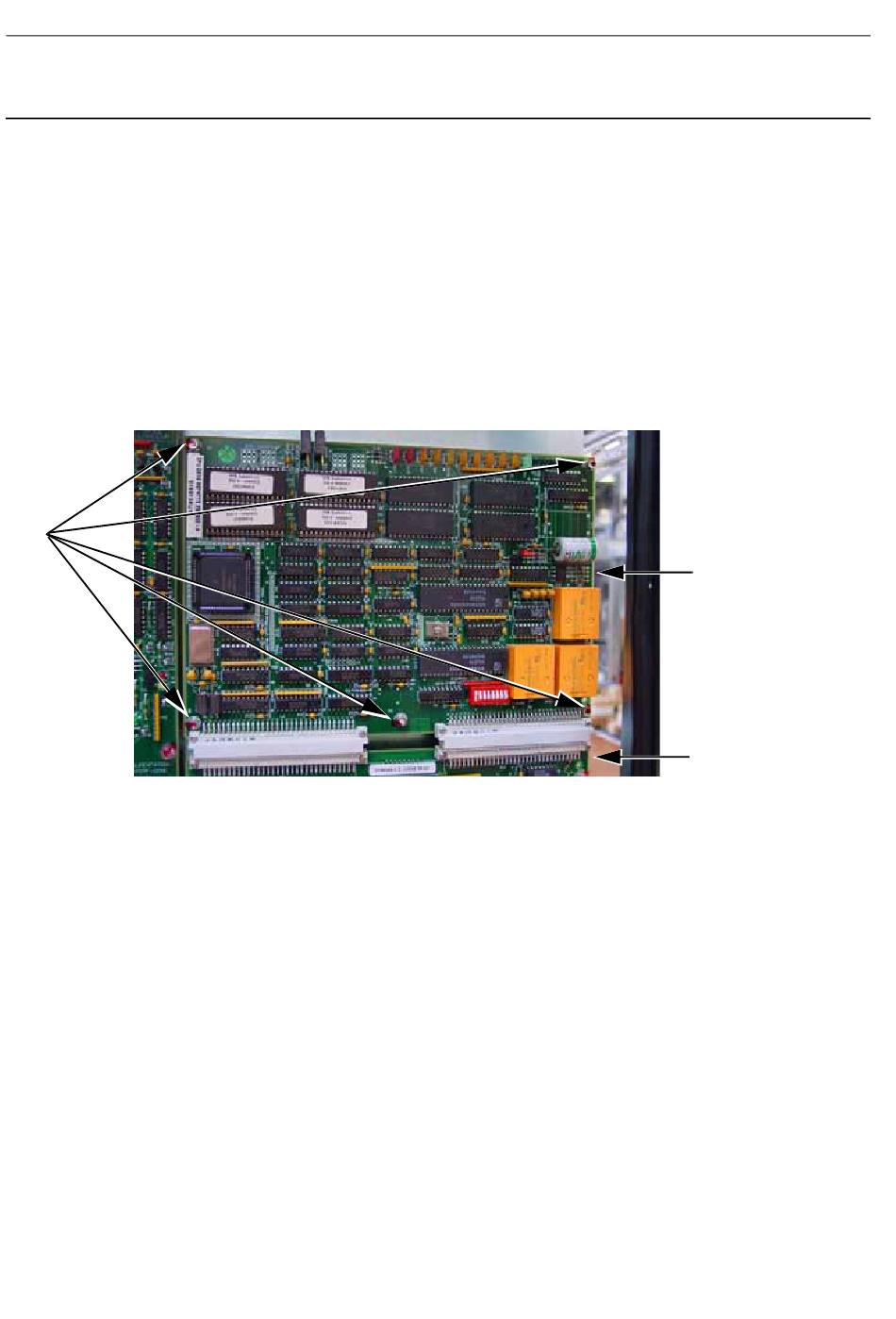

3. Remove the five screws (1) (4 mm allen wrench) that secure the Generator CPU board 400PL3 to
the Generator cabinet.
4. Gently pull and forwards the Generator CPU board 400PL3 to remove it from the two gray connec-
tors (2) on the Generator Command board.
6-3
Installing the New Generator CPU Board
1. Carefully push the new Generator CPU board 400PL3 in to the two gray connectors (1) on the Gen-
erator Command board. Ensure that the connections on the two gray connectors are fully secure and
Chapter 9
Service Information and Procedures Class A 2385072-16-8EN
2
Page no. 1544
insection
in
Job Card D/R A415 - Generator
513.
2
Senographe DS
7-1,
Remove the
Generator
CPU Board
Generator
Control Board
JC-DR-A-401.fm
