Job Card TSG A015 - Lift Movement Troubleshooting
When using this trouble shooting guide, use illustration 1 to help identify the parts on the Lift.

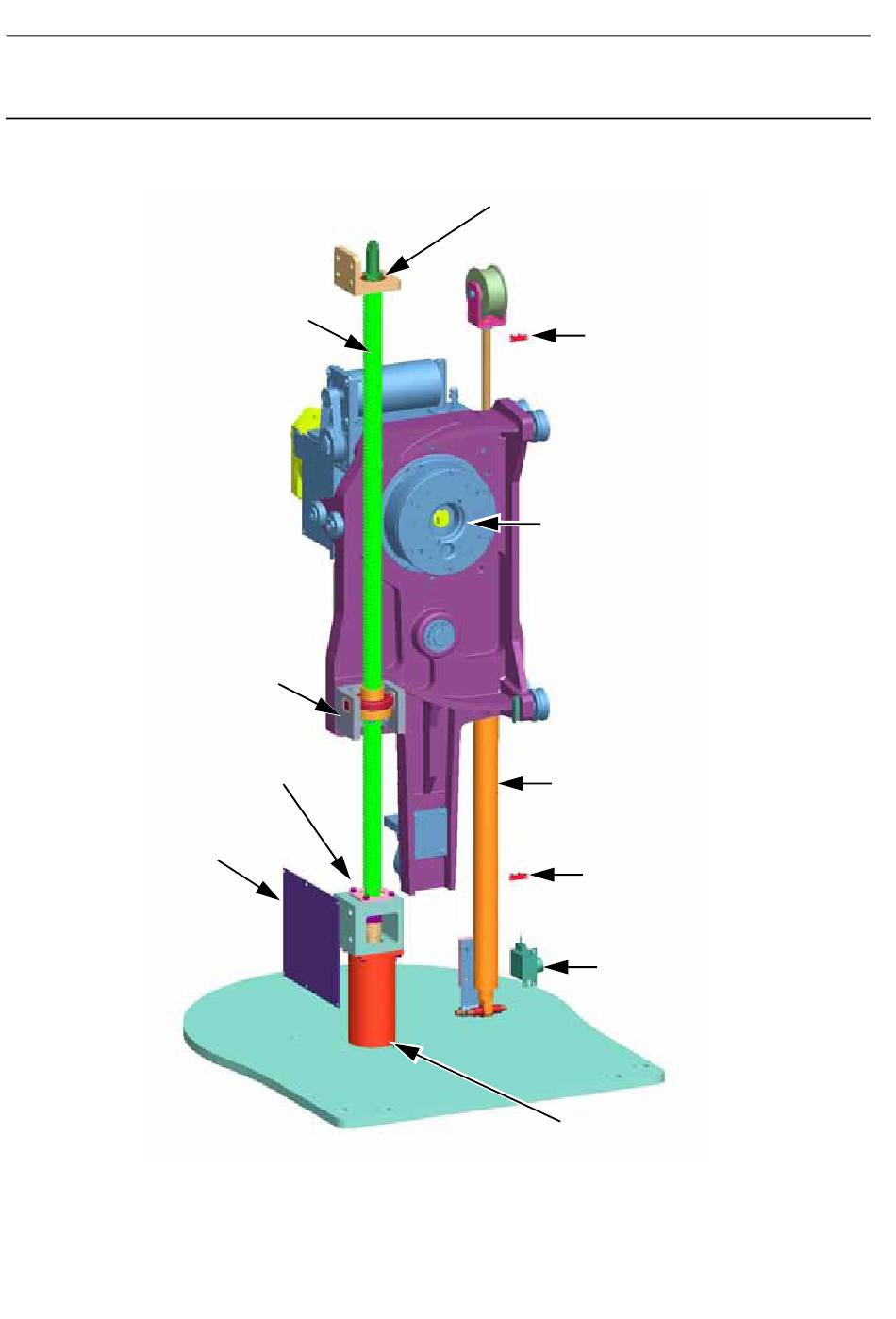

ILLUSTRATION 1 - GANTRY PARTS
Lift Screw Assembly
Lift Cardan Nut Assembly
Lift Screw Assembly
Lower Ball Bearing Ring
Lift Board
Chapter 9
Service Information and Procedures Class A 2385072-16-8EN
Lift Screw Assembly
Ball Bearing Ring
Page no. 1040
Lift Upper Optical Fork
Rotation Brake
Lift Gas Spring
Lift Lower Optical Fork
Lift Potentiometer
Lift Motor & Encoder
Can also include an integrated brake
Senographe DS
JC-TSG-A-015.fm
