Job Card D/R A251 - Paddle Holder Board
1
SUPPLIES

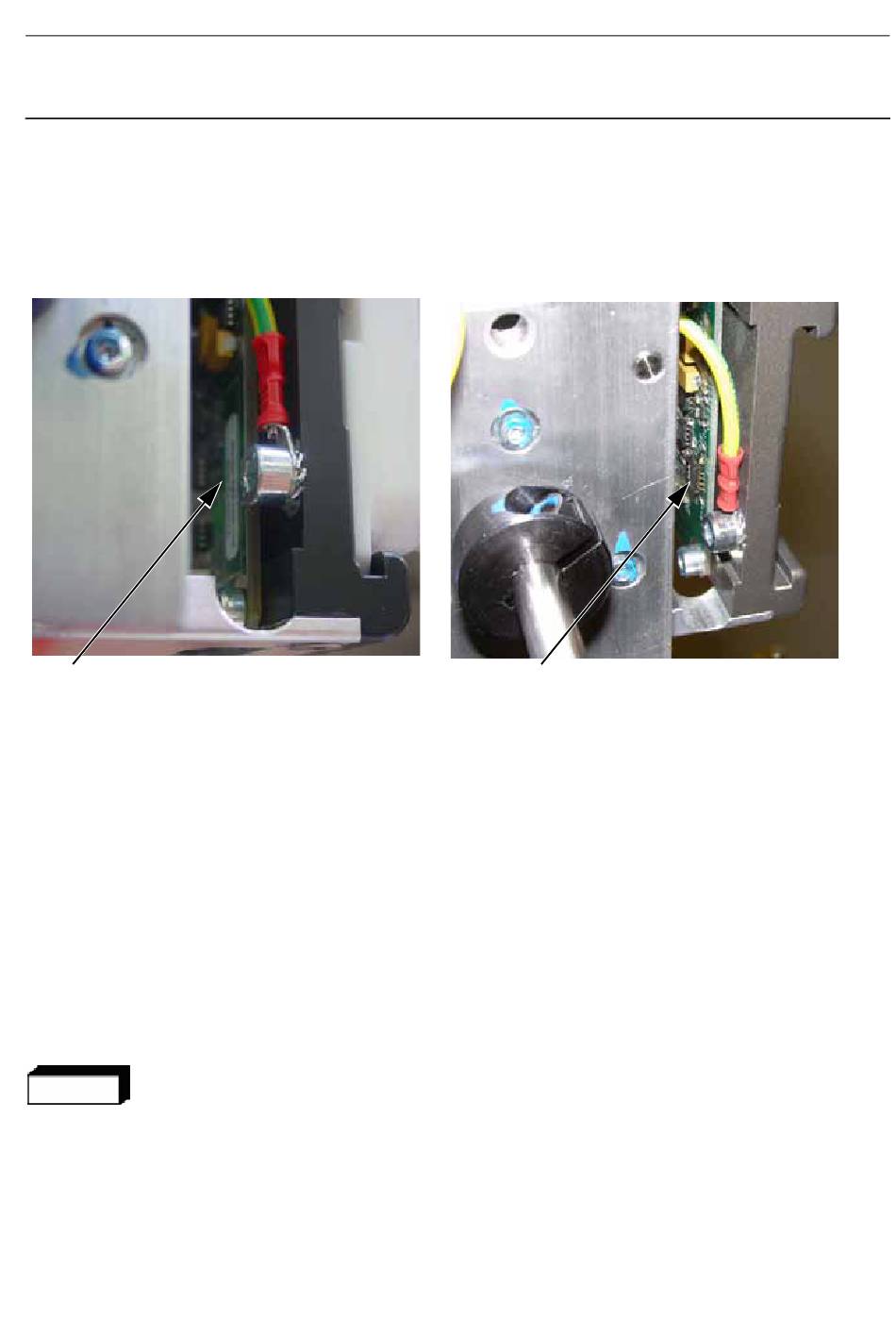

Determine whether you have a Paddle Holder Board with or without DIP switches. To do this, remove
the Paddle Holder Cover and view the left hand side of the Paddle Holder Block where the earth cable
is connected (see below).
Without DIP switches
Order the appropriate Paddle Holder Board according to the type already present in the Gantry.
•
Paddle Holder Board
switches.
•
Paddle Holder Board
switches.
2
TOOLS
Standard Tool Box
3
REQUIRED EFFORT
Personnel: 1 Field Engineer
Time: 30 minutes
4
SAFETY PRECAUTIONS
WARNING
The Gantry must be powered off.
JC-DR-A-251.fm
Service Information and Procedures Class A 2385072-16-8EN
(PN 2369391) if the existing Paddle Holder Board does not have a set of DIP
(PN2369391-2) if the existing Paddle Holder Board does have a set of DIP
Page no. 1331
Job Card D/R A251 - Paddle Holder Board
With DIP switches
Senographe DS
Chapter 9
Chapter 9
