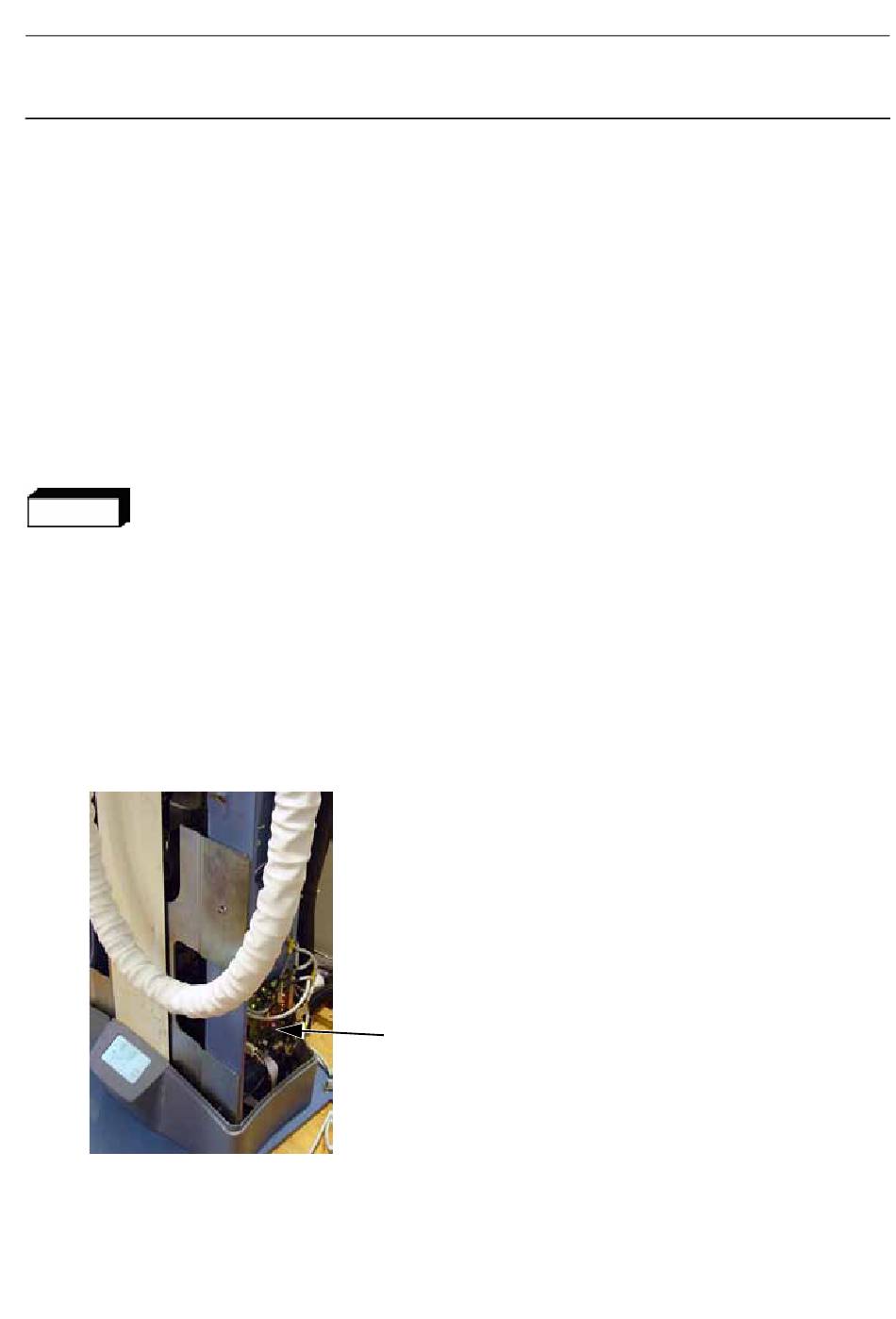

Job Card D/R A201 - Lift Board
1
SUPPLIES
Lift Board
2
TOOLS
Standard Tool Box
3
REQUIRED EFFORT
Personnel: 1 Field Engineer
Time: 30 minutes
4
SAFETY PRECAUTIONS
WARNING
The Gantry must be powered off.
5
PREREQUISITES
•
Switch off the system power.
•
Remove the column covers (Refer to
page
523.
6
PROCEDURE
6-1
Disassembly of Lift Board
Read the following procedure to replace the Lift Board.
1. Carefully disconnect all the cables from the Lift Board.
Pay attention to how the cables are routed around the sides of the Lift Board. You will need to re-con-
nect them in the same way on the replacement Lift Board.
JC-DR-A-201.fm
Service Information and Procedures Class A 2385072-16-8EN
Job Card PHY A044 - Remove/Reinstall Gantry Covers on
Lift Board
Page no. 1161
Senographe DS
Job Card D/R A201 - Lift Board
