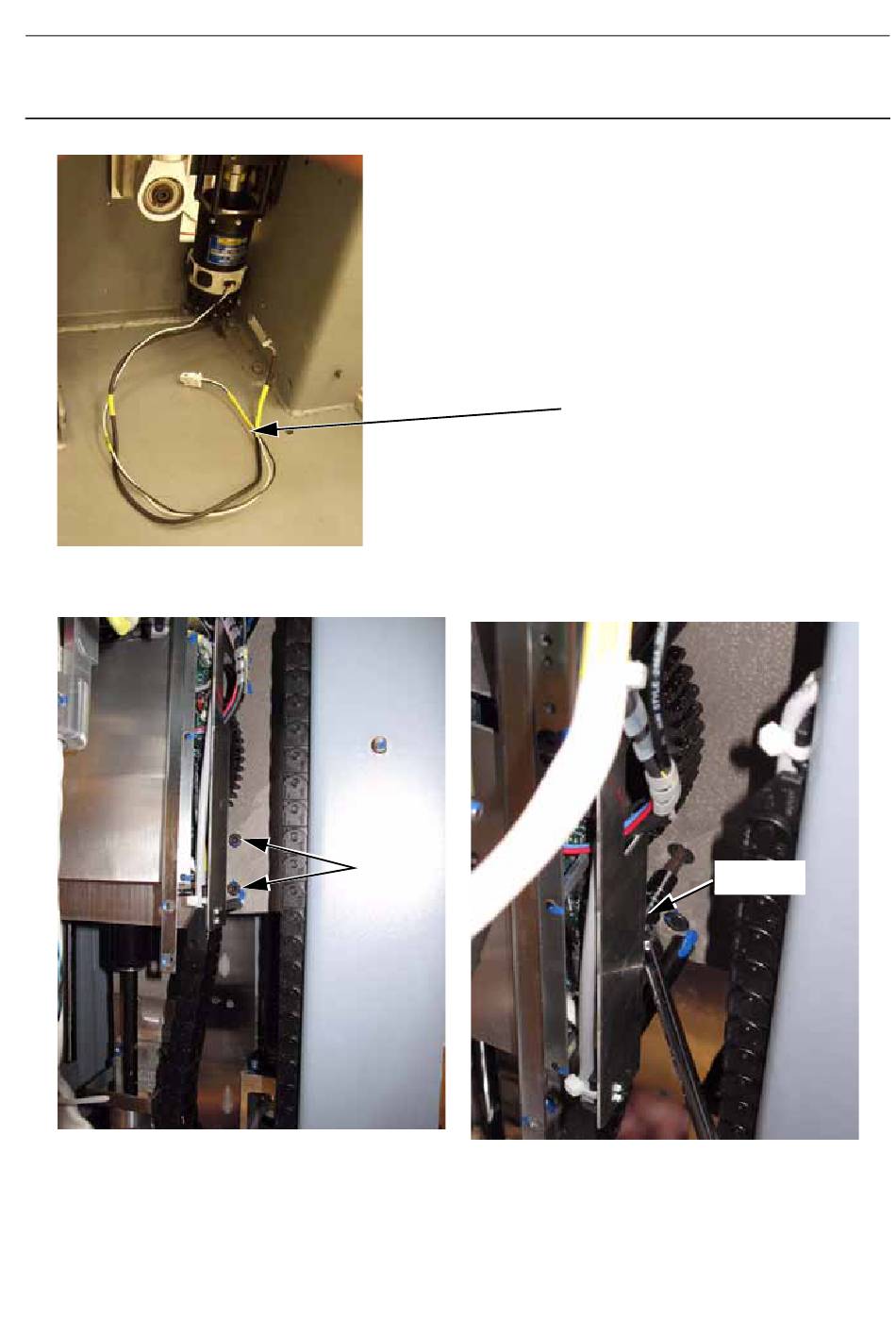

6. Insert and tighten the two left hand screws (5) of Cardan Assembly, ensure that you apply a torque of
20 Nm and apply Loctite 270. To access right hand screws from behind the Rotation board, use a
6 mm socket wrench with universal joint (knuckle joint).
7. Remove the physical LOTO previously applied, as follows:
If you secured the Compression Arm with a nylon belt, remove the nylon belt that secured the Com-
JC-DR-A-232.fm
Service Information and Procedures Class A 2385072-16-8EN
5
Page no. 1271
Job Card D/R A232 - Lift Screw Assembly
4
Universal joint
(knuckle joint)
