Job Card ELE A043 - AWS Monitor Calibration
7-2 Unlocking and Locking the On Screen Display (OSD) on 18" Monitors
If the message OSD Locked appears on the AWS Monitor when pressing any of the keypads, you can
unlock the OSD with the following button sequence:
• Press
the SET button
You can also use the same button sequence to lock the OSD.
• After unlocking the OSD, press
7-3 Preliminary Configuration Checks on 18" Monitors

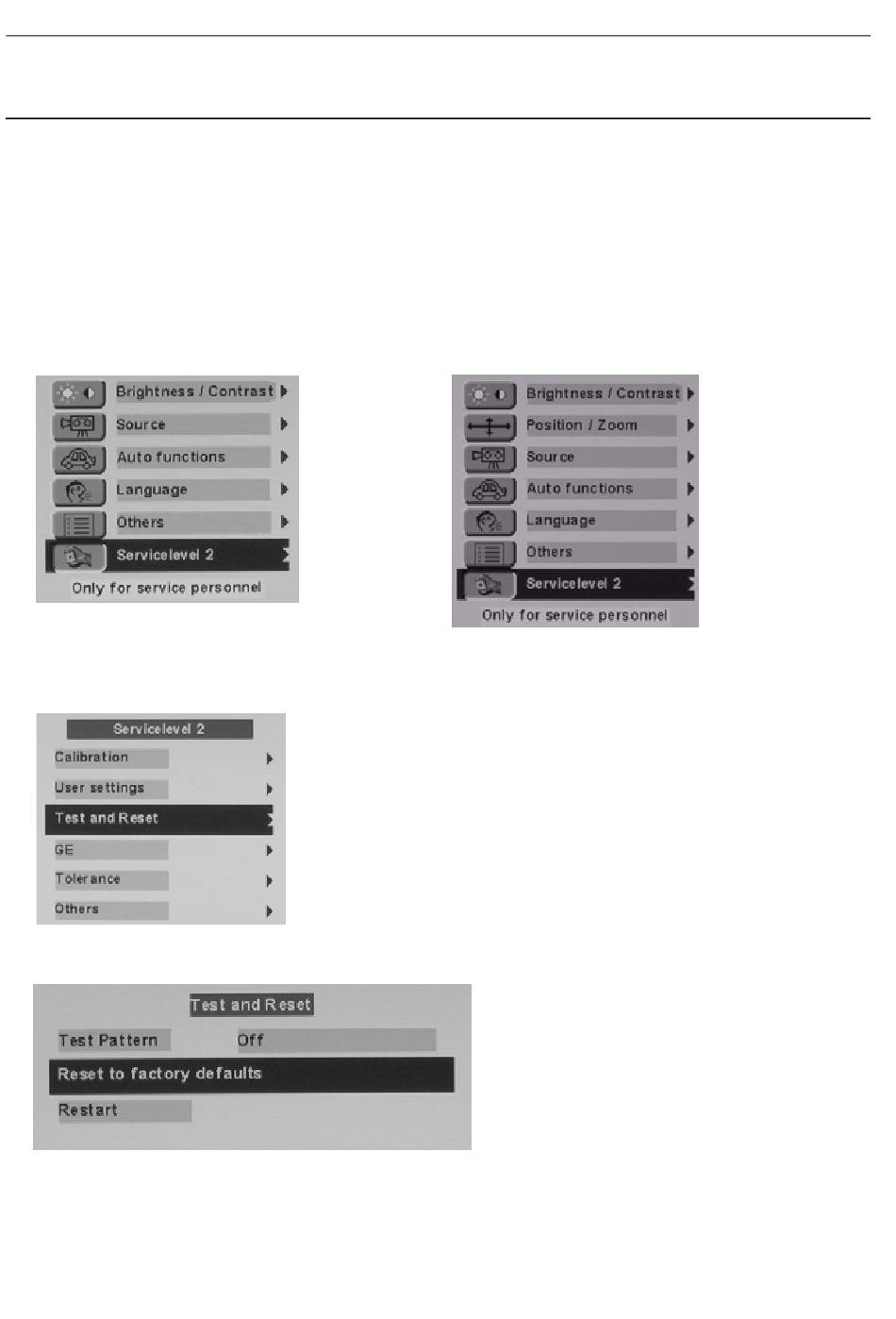

1. Press the MENU button to access the OSD main menu, then keep pressing the MENU button until
Service level 2 is selected.
With monitor connected via DVI (V3/V4 CS)
2. Press the UP button once, then immediately press and hold the DOWN button until the Service level
2 menu re-appears as shown below. .
3. From the Service level 2 menu, keep pressing the MENU button until Test and Reset is selected, and
press
the UP button
4. From the Test and Reset menu, keep pressing the MENU button until Reset to factory defaults is
selected, and press
tings.
Chapter 7
once then press the UP button three times.
the MENU button
to enter the Test and Reset menu.
to select that option. The AWS monitor restarts with the factory set-
the UP button
