Job Card D/R A230 - Rotation Gas Spring

1 SUPPLIES
Rotation Gas Spring
2 TOOLS
• Standard Tool Box
of Loctite on screws))
• Channel Lock Pliers
3 REQUIRED EFFORT
Personnel: 1 Field Engineer
Time: 90 minutes
4 SAFETY PRECAUTIONS
WARNING
The rotation gas spring has a larger mechanical energy when the tube head is at angles
of greater than 0°. To minimize the risk of rapid gas spring movement due to stored
mechanical energy, ensure that the Tube Head is set to 0° before you proceed.
WARNING
The Gantry must be powered off.
5 PREREQUISITES
• Ensure that the orientation Tube Head is set to 0 degrees.
• Switch off the Gantry power.
Remove the front covers and the column covers (refer to
Gantry Covers on page
• Switch on the Gantry power.

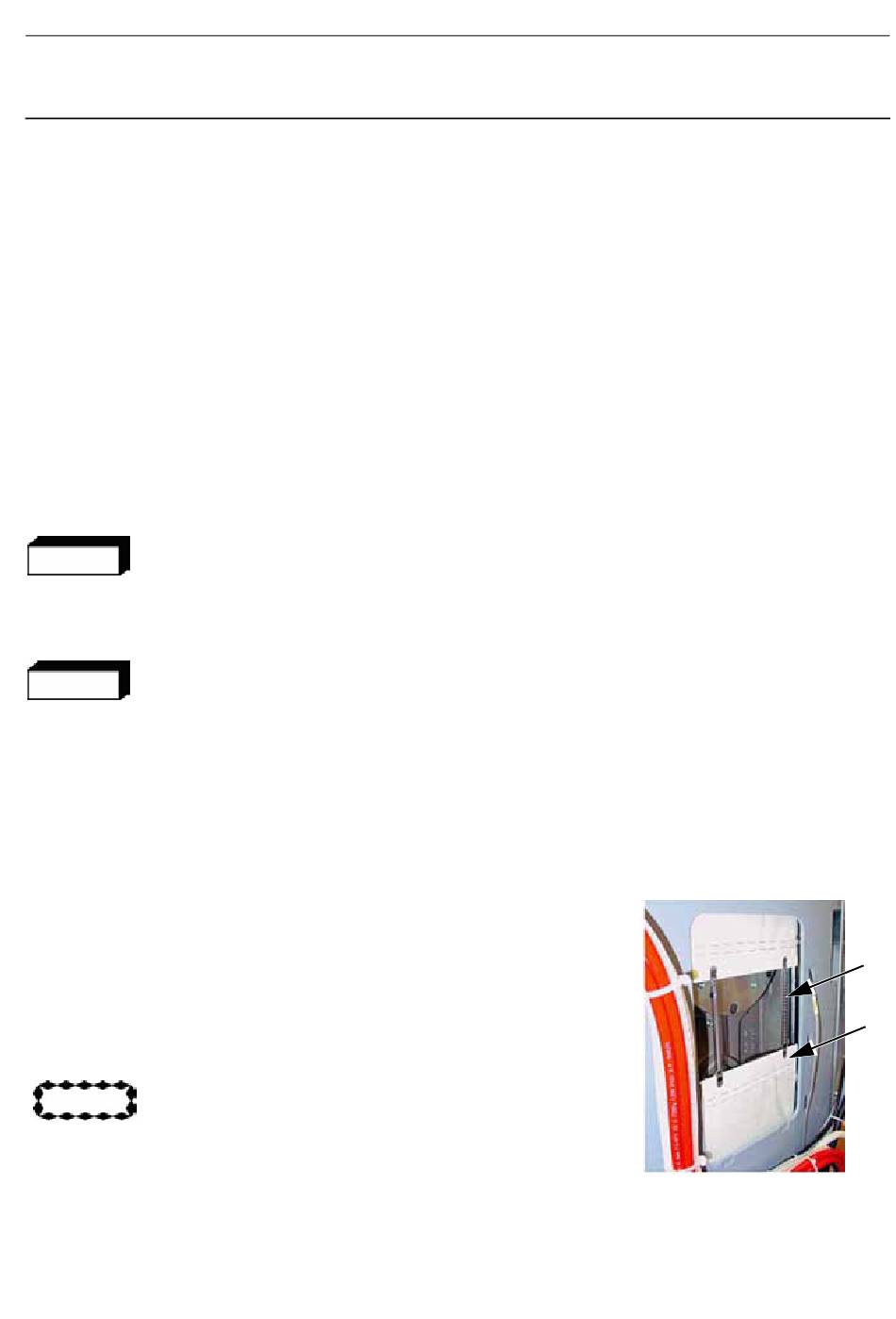

• Use the lift command buttons to move the arm vertically until the two
springs (1) are fully visible in the opening at the rear of the column
frame.
• Switch off the Gantry power.
• Use bent needle-nose pliers to unhook and remove the two springs
from the curtains.
CAUTION
If the extremity of the spring slides out of the pliers, the
spring can fly out and cause injury.
TIP: It is recommended that you use cable ties to temporarily attach
the lower curtain (2) to the coolant pipes so that the curtain does not
JC-DR-A-230.fm
Service Information and Procedures Class A 2385072-16-8EN
(preferably use Allen socket wrench with extension (especially due to presence
523).
Job Card D/R A230 - Rotation Gas Spring
Job Card PHY A044 - Remove/Reinstall
Page no. 1251
Senographe DS
Chapter 9
