Job Card D/R A414 - Power Line Filter Box
on the Power Line Filter.
5
4

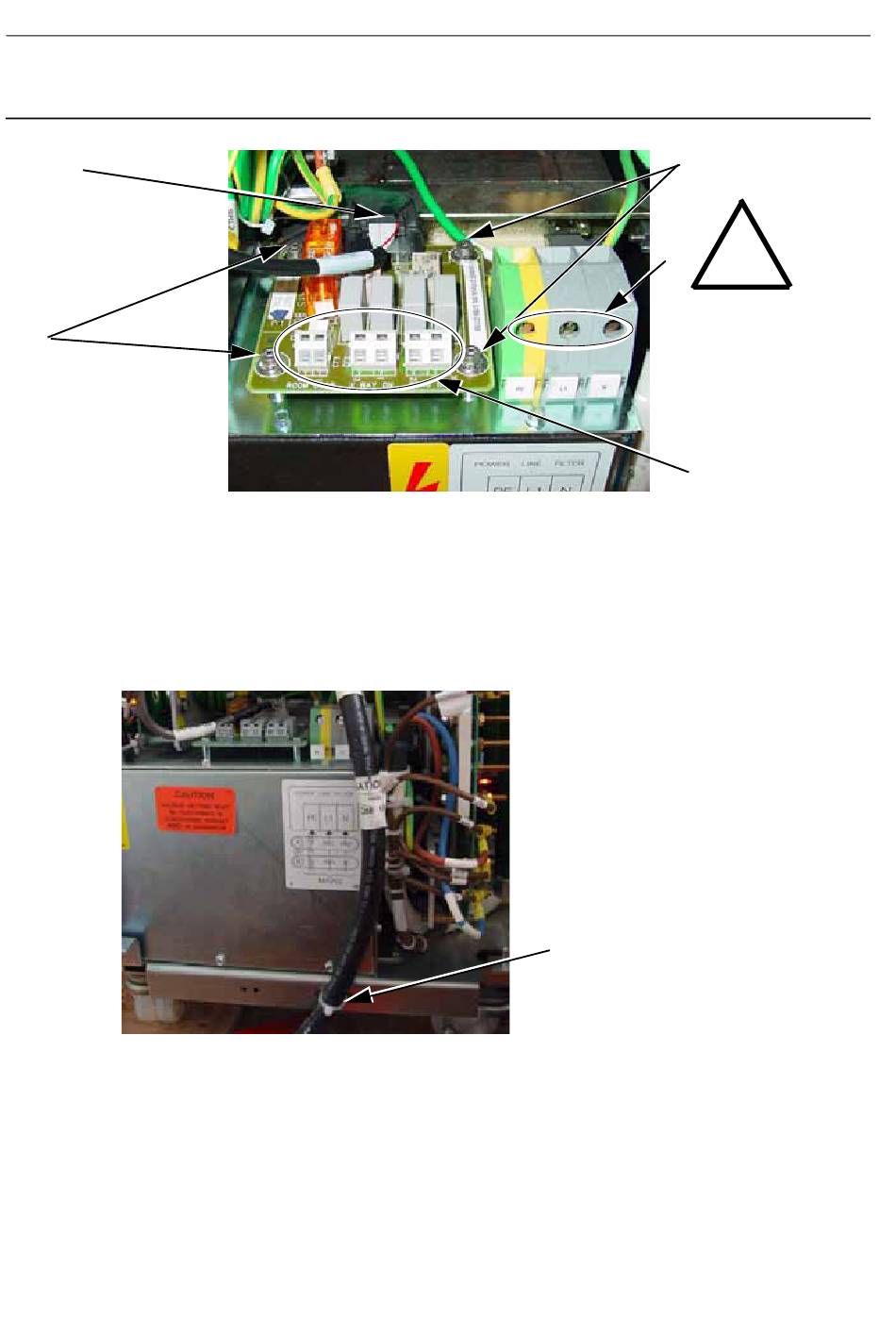

6. Attach the four allen screws (4) (4 mm allen wrench) to secure the Generator Relay board to the
Power Line Filter.
7. Carefully re-connect the data cable (5) to the Generator Relay board. The red line of the ribbon cable
must be on the right-hand side of the connector.
8. Reconnect the lamp and door cables (6) exactly how they were connected before.
9. Reconnect the Line Supply Cables (7) from the Mains Distribution Panel to the Power Line Filter.
10. Ensure that a cable tie is present to secure the Line Supply Cable to the lower cross-member of the
Generator framework.
11. Re-establish the external power supply to the room lamps.
12. Switch on the electrical power supply, both from the Mains Distribution Panel in the room and on the
Chapter 9
Service Information and Procedures Class A 2385072-16-8EN
Page no. 1622
4
7
Ensure that the external
power from the room Mains
Distribution Panel has been
switched off before you start
to handle the Line Supply
Cables.
6
Cable Tie
Senographe DS
!
JC-DR-A-414.fm
