GE Healthcare
Revision 1
6-2
Disassembly of Conditioner
•
Before beginning work, shut down correctly the equipment and switch OFF the Senographe hospital
supply circuit breaker. Lock it in the OFF position or mark it clearly with a warning sign to prevent oth-
ers from applying power.

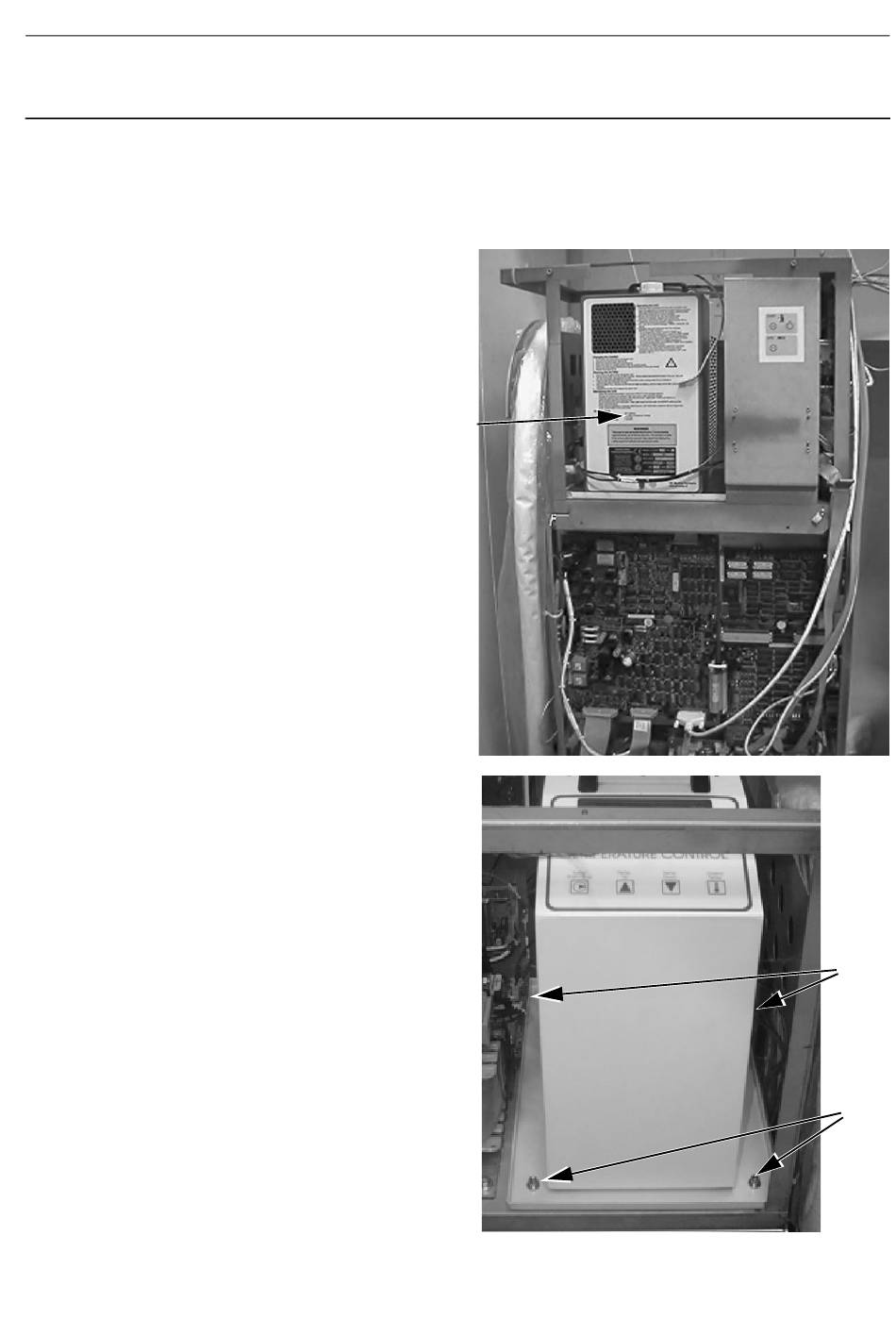

1. Locate the Conditioner unit (1) in the Mains
Distribution Rack.
2. Disconnect serial line connector from the Con-
ditioner unit.
3. Disconnect the two coolant pipes from the Con-
ditioner unit.
Note:
The coolant pipe connectors are self-seal-
ing.
4. Disconnect the AC Mains cable connector.
5. Remove the two front screws (2) and the two
rear screws (3) securing the Conditioner unit to
the generator support.
Note:
Some systems use a nylon strap to secure the
Conditioner instead of the four screws.
JC-DR-A-421.fm
Service Information and Procedures Class A 2385072-16-8EN
1
Page no. 1635
Senographe DS
Job Card D/R A421 - Conditioner Unit
2
3
