5. Remove the ground cable (5) (8 mm open ended wrench) from the bottom metal panel, and place the
bottom metal panel in a safe place.

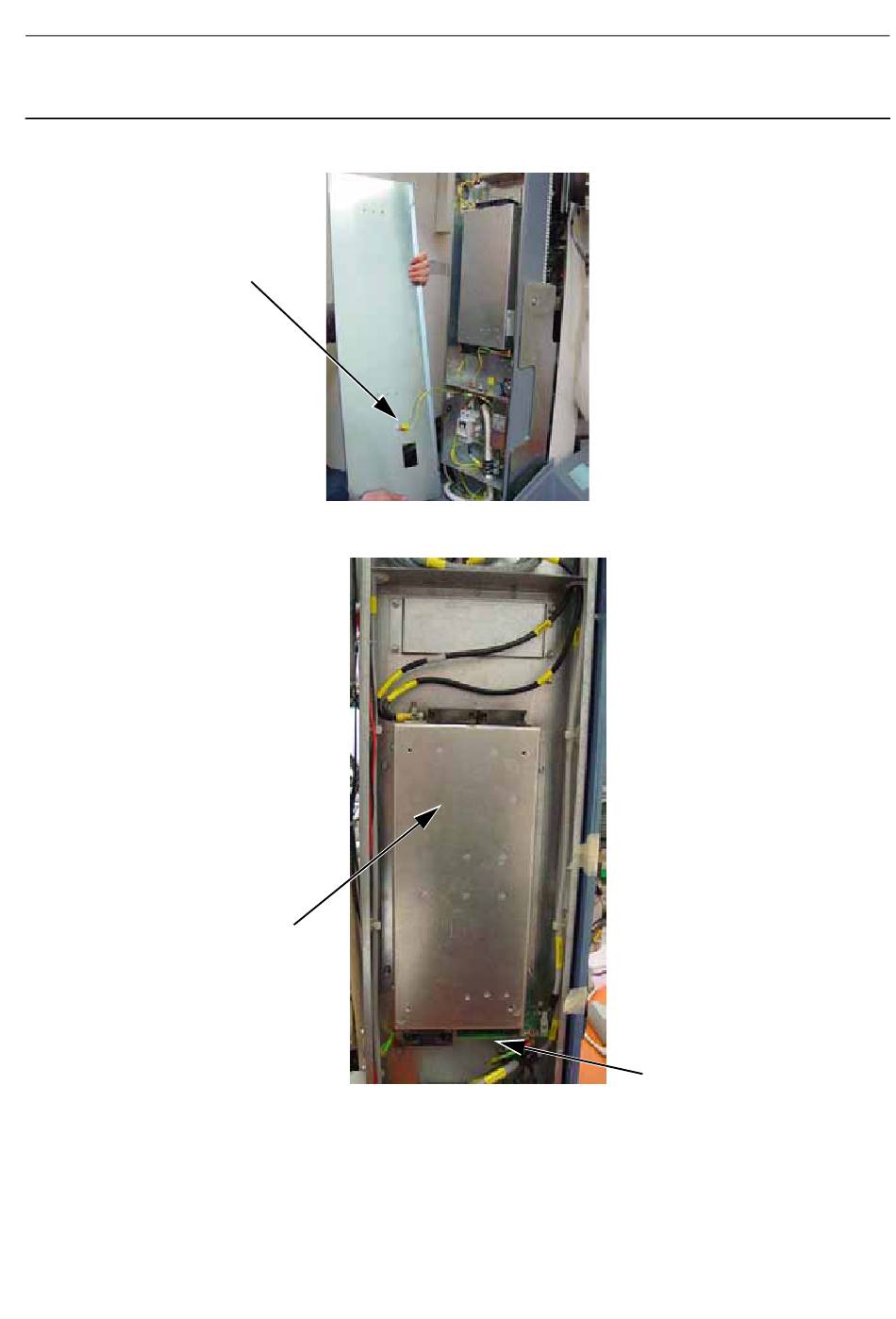

6. Removing the bottom metal panel exposes the AC/DC Module (6), AC/DC Board (7) and associated
cabling. In this Job Card, you are only replacing the AC/DC Board.
7. Disconnect the J138/PL107-W107 cable (8) and the J137/PL102-W106 cable (9) from the
