6-3 Check Cable Positioning
• The cables around the Compression board must be carefully positioned to avoid possible damage
when installing or removing covers.

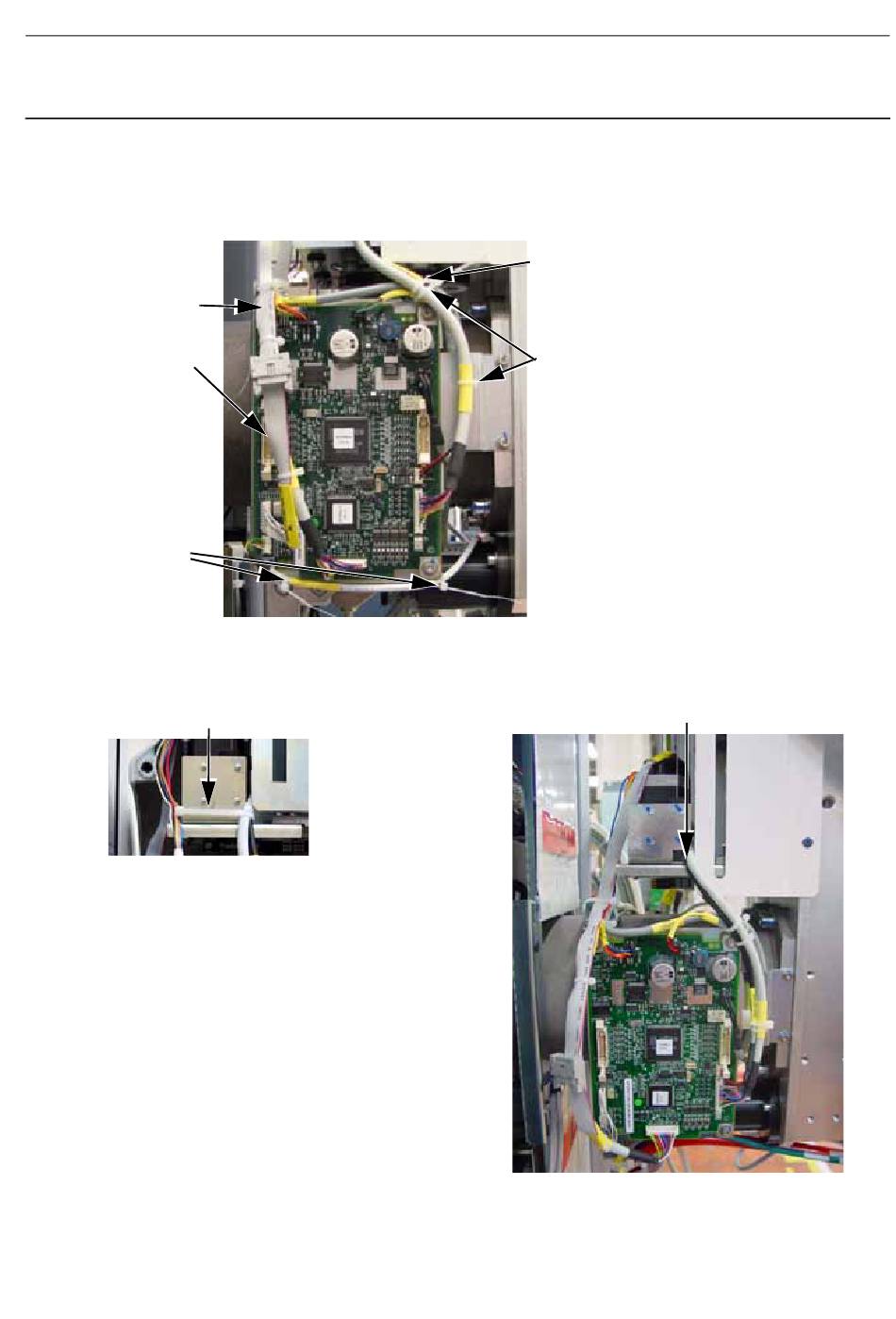

• Ensure that all cables are positioned and secured as shown below:
1
Use cable ties to
secure cables W302
and W308 together.
Cable W302 must
pass in front of the
board as shown.
Use cable ties to
secure cable W313 to
the board spacers.
2
Pre October 2007 Systems
Use a cable tie to secure
cables W301, W303, and
W304 above the board.
• To avoid electromagnetic interference, ensure that the cables W303 and W304 do not pass over the
microprocessor that is located in the center of the Compression board.
JC-DR-A-250.fm
Service Information and Procedures Class A 2385072-16-8EN
Use cable ties to
secure cables W303
and W304 together.
In order to avoid EMC interference,
use cable ties to ensure that the
W303 and W304 cables pass
around the Compression Board.
October 2007 Systems and later
OR
Page no. 1327
Job Card D/R A250 - Compression Board
Pass the cables cables W303
and W304 above the board
through the indicated cut-out.
