GE Healthcare
Revision 1

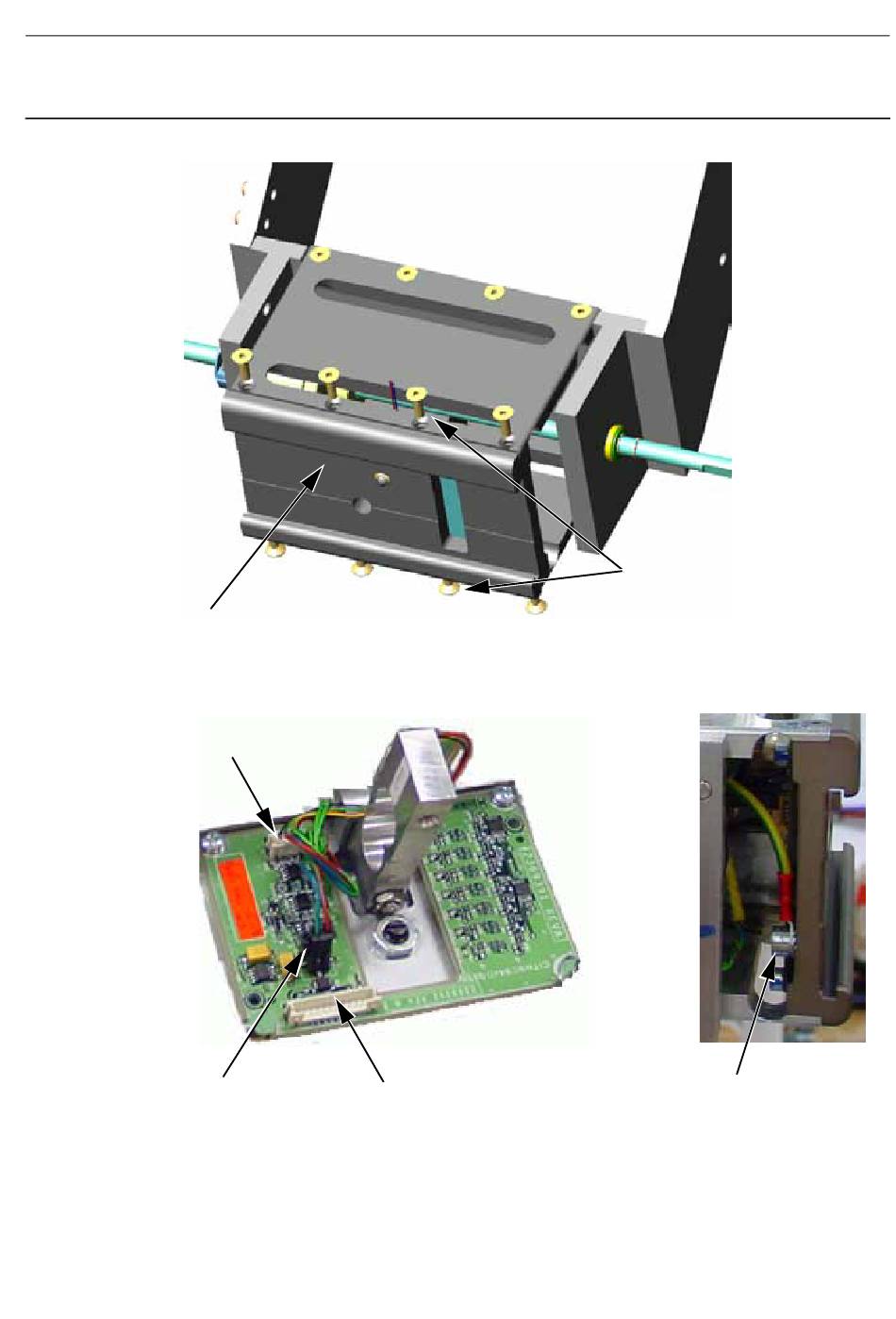

Holder (4) being sure not to brake the cables connected to the Paddle Holder board.
4. On the Paddle Holder board, carefully disconnect the Paddle Recognition cable from the J2 connec-
tor, Force Sensor cable from the J1 connector and Motor cable from the J2 connector. Disconnect
the ground cable from the Paddle Holder.
J1 : Force Sensor
(J1 / PL304 - W304)
J3 : Manual Compression Brake
(J3 / PL304 - W314)
5. Remove the four pairs of M4 screws (5) (3 mm allen wrench), and then remove the upper and lower
JC-DR-A-246.fm
4
Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A246 - Manual Compression Brake
J2 : Paddle Recognition Cable
(J2 / PL304 - W319)
Page no. 1303
Senographe DS
3
Paddle Holder
Earth Cable
Chapter 9
- Quick Links:
- Err Sub A001 - Generator Error...
Hide quick links:
Advertisement
Table of Contents
Troubleshooting
Need help?
Do you have a question about the Senographe DS and is the answer not in the manual?
Questions and answers
G.E.Essential l have recently bought What is the full weight.of the mamo Full weight of the console and other İtem's also measurements of each item with the main machine please All this Shipping Company required
The GE Senographe DS mammography machine is shipped in three crates with the following dimensions and weights:
- Crate 1 (Gantry, Generator Cabinet, and ramp):
- Dimensions: 2066 mm (81.34 in) depth × 848 mm (33.39 in) width × 2292 mm (90.24 in) height
- Mass: 641 kg (1410.2 lbs)
- Crate 2 (Control Station):
- Dimensions: 1110 mm (43.70 in) depth × 770 mm (30.31 in) width × 1850 mm (72.83 in) height
- Mass: 210.5 kg (464.07 lbs) for truck transport (without side covers and lid)
- Mass: 223.5 kg (492.73 lbs) for plane/boat transport (with side covers and lid)
- Crate 3 (Detector):
- Dimensions: 872 mm (34.33 in) depth × 2270 mm (89.37 in) width × 260 mm (10.24 in) height
- Mass: 104.4 kg (229.68 lbs)
### Total Mass:
- For truck transport: 641 + 210.5 + 104.4 = 955.9 kg (2104.95 lbs)
- For plane/boat transport: 641 + 223.5 + 104.4 = 968.9 kg (2133.61 lbs)
These values include the gantry, generator cabinet, control station, detector, and all related components.
