Revision 1
Note:
You can normally identify whether the top brake is installed without removing the Gantry covers
due to its distinctive clamping noise. When stopping the Gantry lift movement, a distinctive clamp-
ing noise can be heard almost immediately after letting go of the lift control buttons.
Type 3: Brake motor - (stationary and mobile systems) - the latest systems in the install base dat-
ing from June 2011 onwards. At this stage of the product life cycle, brake functionality was consid-
ered a product improvement. All Gantries manufactured from June 2011 were installed with a Type
3 Lift Screw Assembly containing the "brake motor".

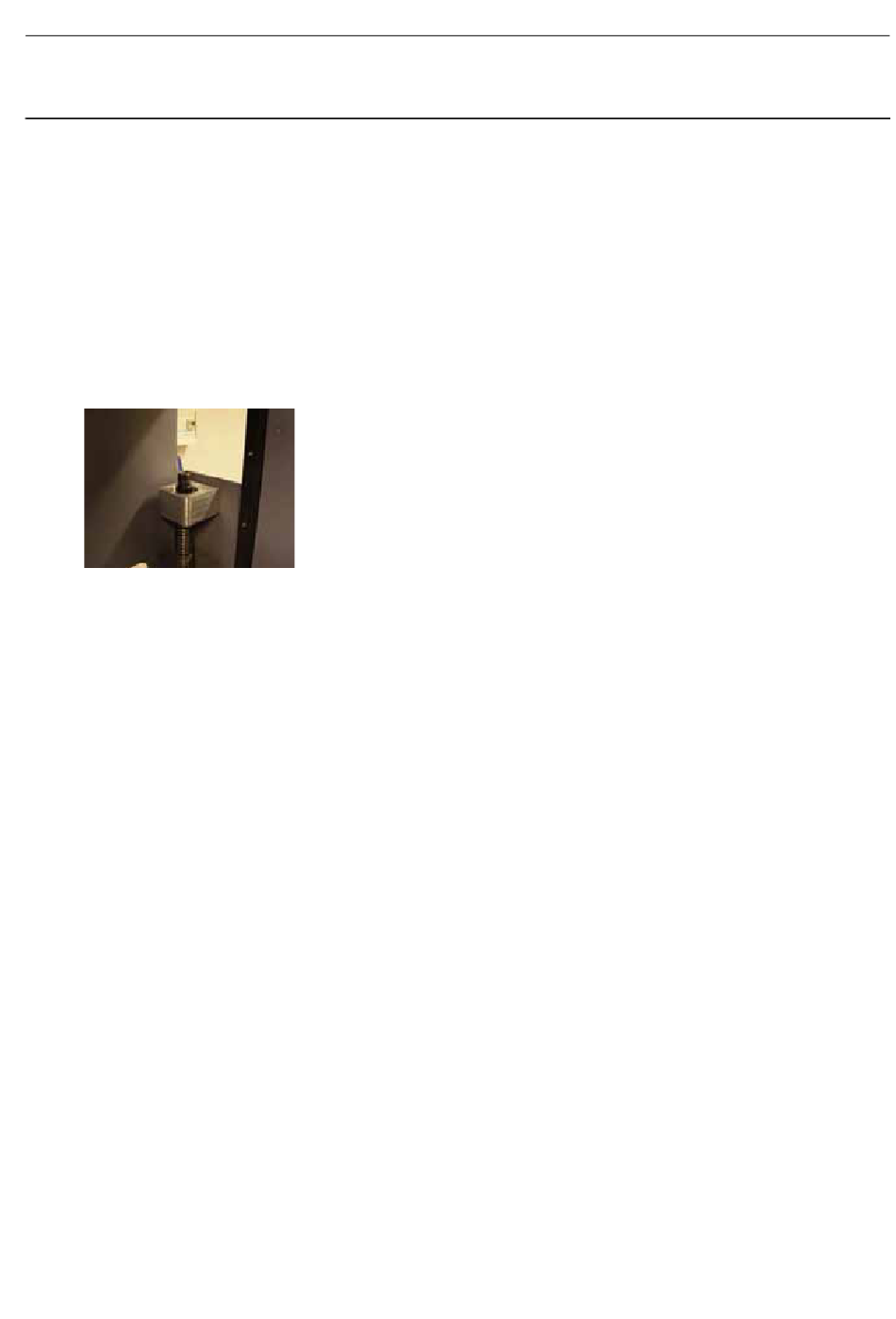

A system containing a "brake motor" can be identified by:
-
the sliver block with no threaded holes at the top of the Lift Screw Assembly
-
in addition to the power cables, the motor at the bottom of the Lift Screw Assembly contains an
earth cable and a brake cable
JC-TSG-A-015.fm
Service Information and Procedures Class A 2385072-16-8EN
Job Card TSG A015 - Lift Movement Troubleshooting
Page no. 1037
Senographe DS
Chapter 9
- Quick Links:
- Err Sub A001 - Generator Error...
Hide quick links:
Advertisement
Table of Contents
Troubleshooting
Need help?
Do you have a question about the Senographe DS and is the answer not in the manual?
Questions and answers
G.E.Essential l have recently bought What is the full weight.of the mamo Full weight of the console and other İtem's also measurements of each item with the main machine please All this Shipping Company required
The GE Senographe DS mammography machine is shipped in three crates with the following dimensions and weights:
- Crate 1 (Gantry, Generator Cabinet, and ramp):
- Dimensions: 2066 mm (81.34 in) depth × 848 mm (33.39 in) width × 2292 mm (90.24 in) height
- Mass: 641 kg (1410.2 lbs)
- Crate 2 (Control Station):
- Dimensions: 1110 mm (43.70 in) depth × 770 mm (30.31 in) width × 1850 mm (72.83 in) height
- Mass: 210.5 kg (464.07 lbs) for truck transport (without side covers and lid)
- Mass: 223.5 kg (492.73 lbs) for plane/boat transport (with side covers and lid)
- Crate 3 (Detector):
- Dimensions: 872 mm (34.33 in) depth × 2270 mm (89.37 in) width × 260 mm (10.24 in) height
- Mass: 104.4 kg (229.68 lbs)
### Total Mass:
- For truck transport: 641 + 210.5 + 104.4 = 955.9 kg (2104.95 lbs)
- For plane/boat transport: 641 + 223.5 + 104.4 = 968.9 kg (2133.61 lbs)
These values include the gantry, generator cabinet, control station, detector, and all related components.
This answer is automatically generated
