Job Card D/R A414 - Power Line Filter Box
Access to these allen screws is underneath the Generator framework.

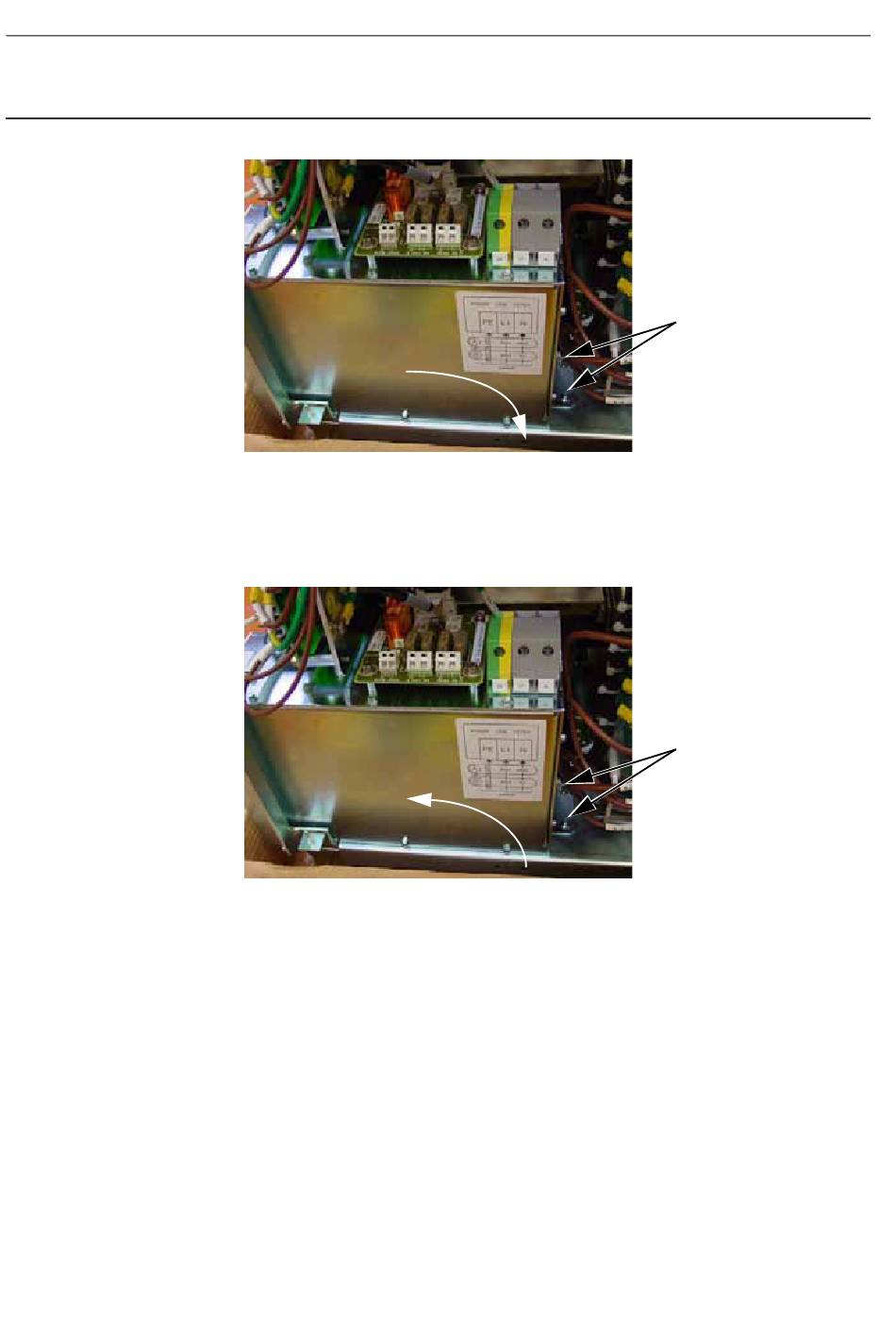

14. Carefully remove the faulty Power Line Filter from the Generator by lifting it and turning it clockwise.
6-2
Installation of the Power Line Filter
1. Carefully put the new Power Line Filter into the Generator by turning it anti-clockwise so that it screw
threads line up with the holes on the Generator framework.
2. Use the two allen screws (1) to secure the right side of the Power Line Filter to the Genrator base
(4 mm allen wrench). These allen screws point upwards with their heads underneath the Generator
framework.
3. Use the allen screw (2) to secure the left side of the Power Line Filter to the Generator Framework
Chapter 9
Service Information and Procedures Class A 2385072-16-8EN
Page no. 1620
Senographe DS
7
1
JC-DR-A-414.fm
