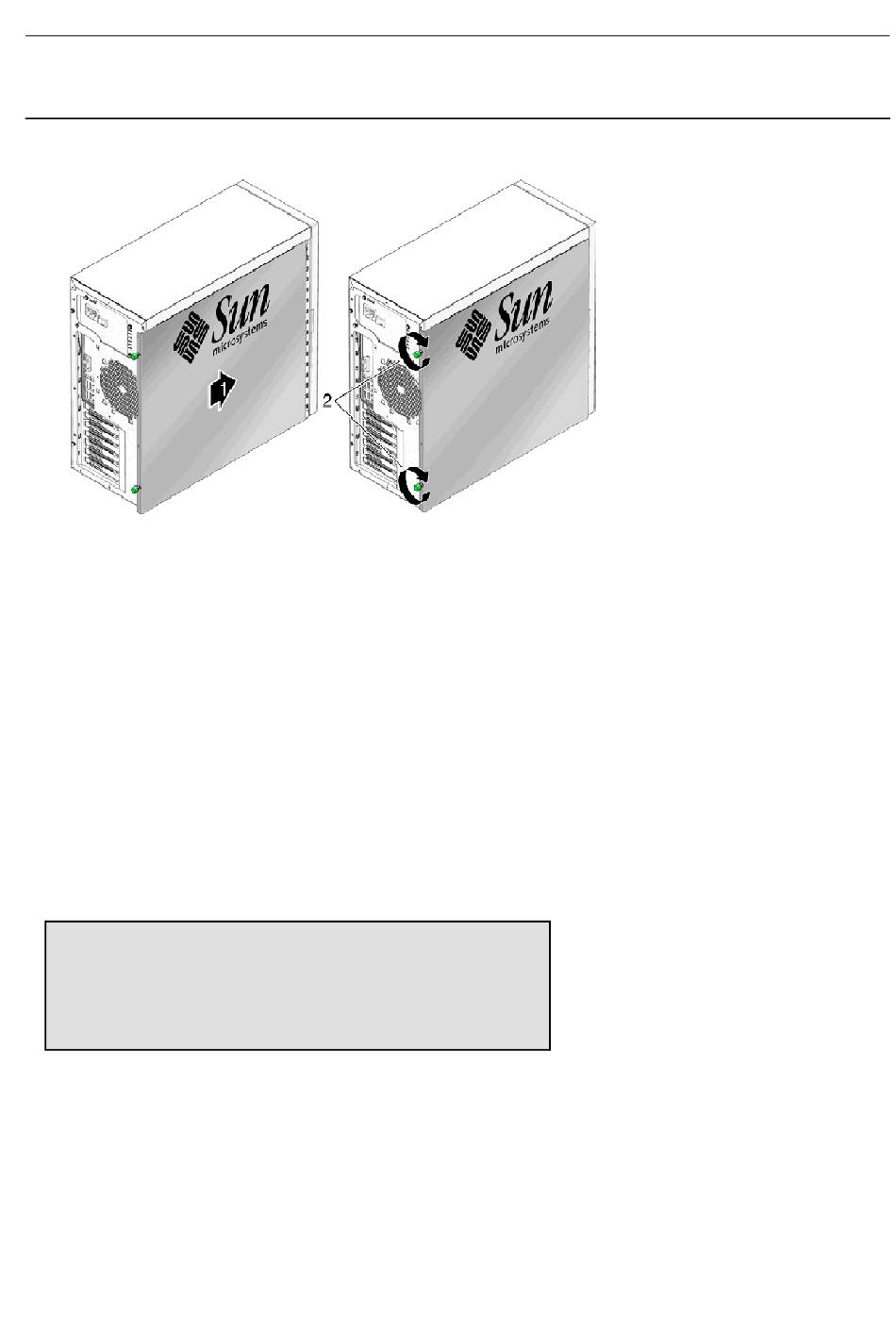

15. Pressing gently against the top of the access panel, slide the panel toward the front of the chassis.
The access panel lies flat against the chassis, with no gaps between the two.
16. Tighten the two captive thumbscrews located on the rear lip of the panel. The access panel is
installed flat against the chassis with the thumbscrews tightened.
17. Put the U20 Workstation back into the Control Station (refer to
AWS
Unit), and re-connect it to all the cables (refer to
Unit). Turn the power switch on the back of the U20 chassis to the ON position ( I ).
18. Reinstall the Control Station omega cover. See
tion Covers on page
19. Reinstall the Control Station top cover. See
Covers on page
503.
20. Reinstall the X-ray Console.
21. Power on the Senographe system from the X-ray Console.
22. If necessary, power on the U20 from button O located in front panel under the DVD-ROM drive.
23. Immediately press repeatedly the F2 key until you enter the Bios setup.
24. Use the cursor keys to select the Boot item.
25. Use the vertical cursor keys and + - keys to have the boot order as follows:
Boot priority order:
1: IDE CD : DVD_model_name
2: PCI SATA1 : Hard_drive_model_name
...
26. Press the right cursor key to go into the Power item.
JC-DR-A-335.fm
Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A335 - AWS (U20) Motherboard Battery (V3 Control Stations only)
503.
section 6-3-2
Job Card PHY A040 - Remove/Reinstall Control Sta-
Job Card PHY A040 - Remove/Reinstall Control Station
Page no. 1539
section 6-3-2
in
Job Card D/R A311 -
in
Job Card D/R A311 - AWS
Senographe DS
Chapter 9
- Quick Links:
- Err Sub A001 - Generator Error...
Hide quick links:
Advertisement
Table of Contents
Troubleshooting
Need help?
Do you have a question about the Senographe DS and is the answer not in the manual?
Questions and answers
G.E.Essential l have recently bought What is the full weight.of the mamo Full weight of the console and other İtem's also measurements of each item with the main machine please All this Shipping Company required
The GE Senographe DS mammography machine is shipped in three crates with the following dimensions and weights:
- Crate 1 (Gantry, Generator Cabinet, and ramp):
- Dimensions: 2066 mm (81.34 in) depth × 848 mm (33.39 in) width × 2292 mm (90.24 in) height
- Mass: 641 kg (1410.2 lbs)
- Crate 2 (Control Station):
- Dimensions: 1110 mm (43.70 in) depth × 770 mm (30.31 in) width × 1850 mm (72.83 in) height
- Mass: 210.5 kg (464.07 lbs) for truck transport (without side covers and lid)
- Mass: 223.5 kg (492.73 lbs) for plane/boat transport (with side covers and lid)
- Crate 3 (Detector):
- Dimensions: 872 mm (34.33 in) depth × 2270 mm (89.37 in) width × 260 mm (10.24 in) height
- Mass: 104.4 kg (229.68 lbs)
### Total Mass:
- For truck transport: 641 + 210.5 + 104.4 = 955.9 kg (2104.95 lbs)
- For plane/boat transport: 641 + 223.5 + 104.4 = 968.9 kg (2133.61 lbs)
These values include the gantry, generator cabinet, control station, detector, and all related components.
This answer is automatically generated
