GE Healthcare
Revision 1
Job Card D/R A207 - Lift Belt
6
PROCEDURE
6-1

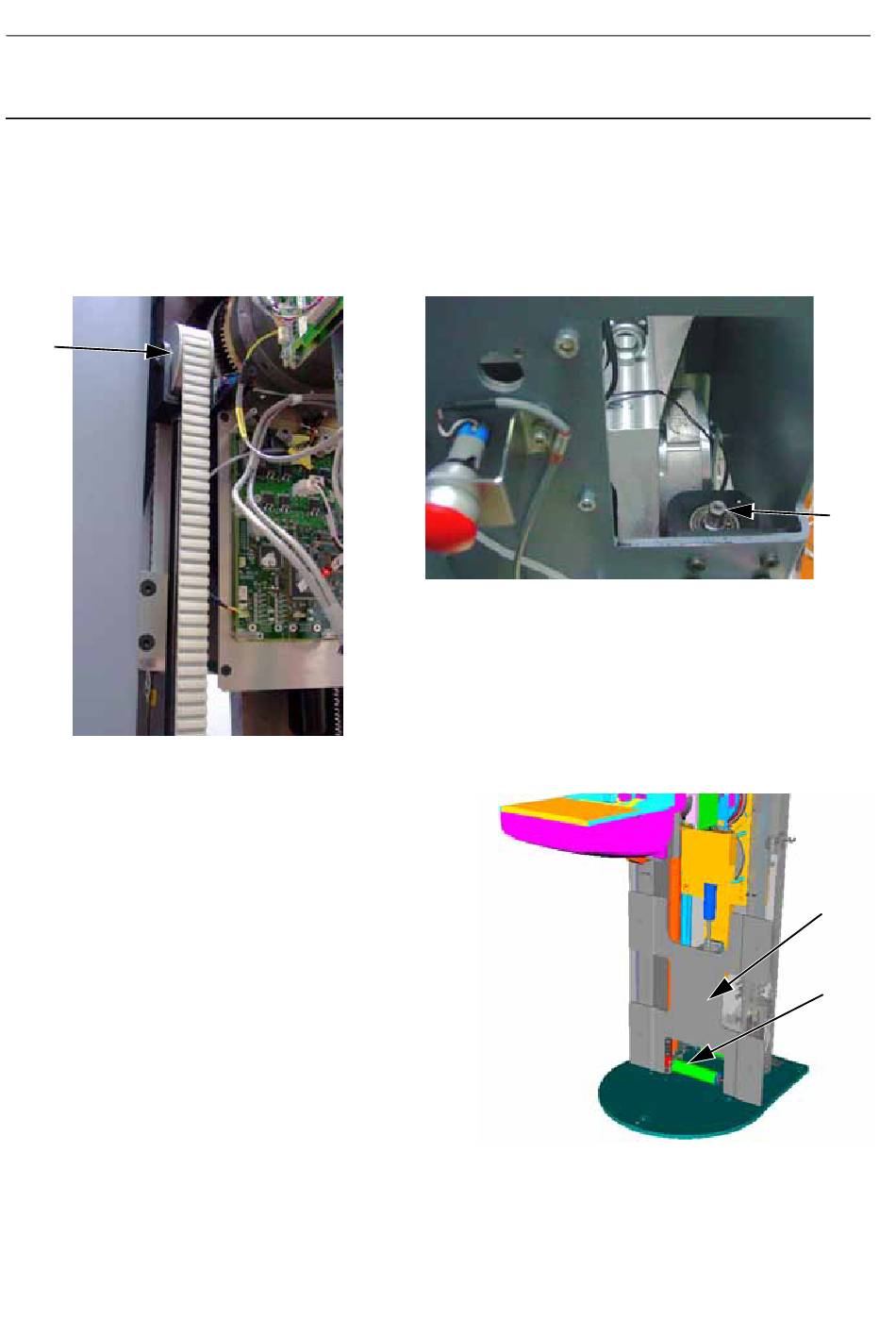

Disassembly of the Lift Belt
1. Continue to raise the belt pulley (2) manually (raise the arm) until the lift belt is loosened
Access the endless screw (3) on the top right side of the Gantry, use a ratchet handle (13 mm hex
socket) and turn clockwise.
2
UPPER LEFT SIDE - FRONT VIEW
2. Release the four bolts securing the lower X plate (4)
(10 mm open-ended wrench).
3. Remove the curtain roller (5).
Chapter 9
Service Information and Procedures Class A 2385072-16-8EN
UPPER RIGHT SIDE - LATERAL VIEW
Page no. 1190
Senographe DS
3
4
5
JC-DR-A-207.fm
