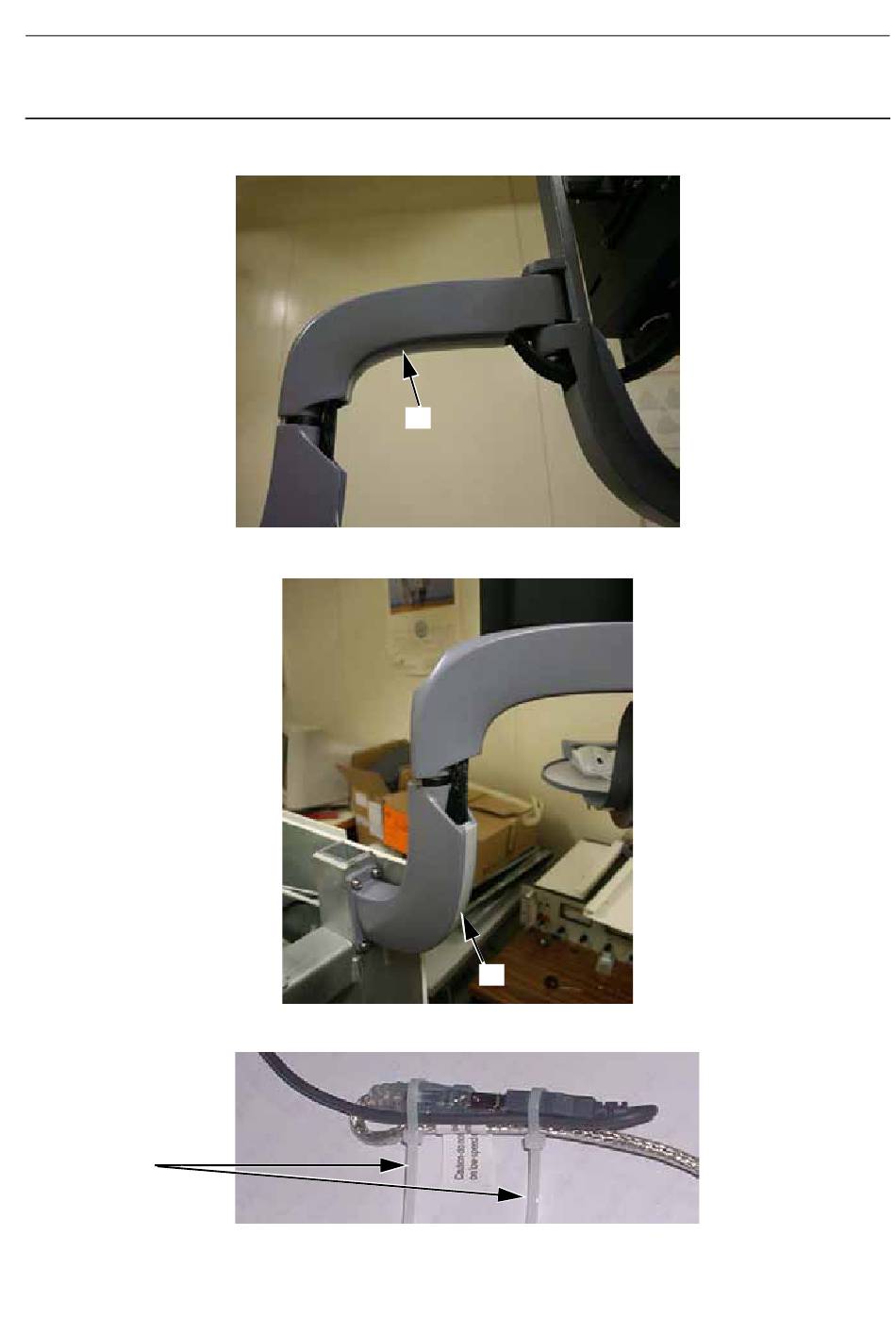

5. Insert the upper silicone mask (shorter of the two) (5) into the rotative arm. The rounded edge of the
silicone mask must point outwards.
6. Insert the lower silicone mask (longer of the two) (6) into the rotative arm. The rounded edge of the
silicone mask must point outwards.
7. Use either the existing USB extension cable or the USB extension cable to connect the trackball to
the ADS computer. Secure the Trackball and USB extension cable connectors with two cable ties (7).
