GE Healthcare
Revision 1
Job Card D/R A406 - Generator Command Board 400-PL1
1
SUPPLIES
•
Generator Command Board 400-PL1
2
TOOLS
•
Standard Tool Box
3
REQUIRED EFFORT
Personnel: 1 Field Engineer
Time: 90 minutes
4
SAFETY PRECAUTIONS
Steps in this Job Card tell you when to take appropriate action to avoid electric shock
5
PREREQUISITES
None
6
PROCEDURE
6-1
Removal of the Generator Command Board 400-PL1
1. Switch off the electrical power supply from the Mains Distribution Panel in the room. Apply an appro-
priate LOTO padlock and label. Wait 10 minutes for the components within the Generator to dis-
charge.
2. Remove the four Generator side panels (see
Covers on page
513) to reveal the Generator Command board 400-PL1.

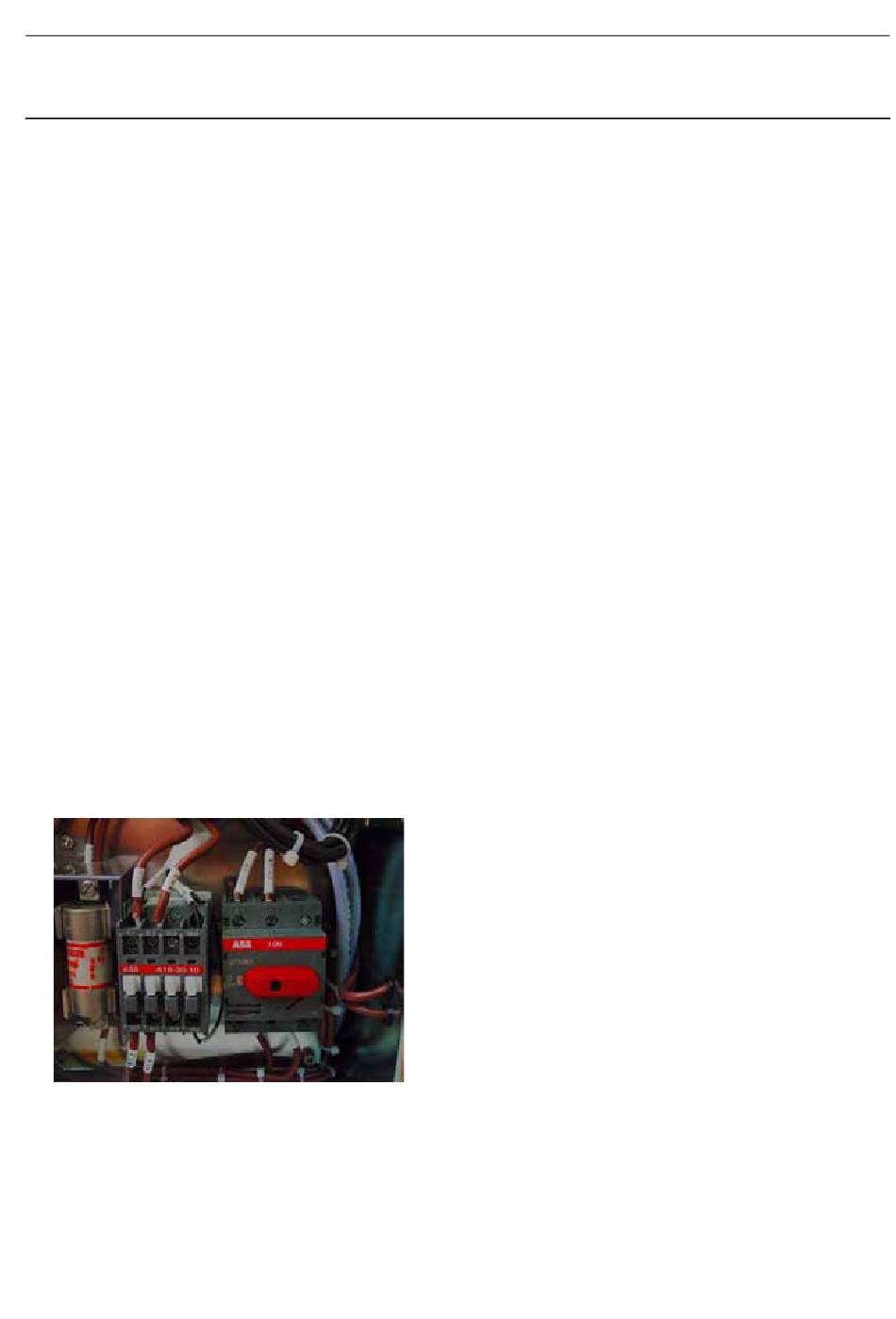

3. Switch off the electrical power supply on the rotary switch in the Generator cabinet (position 0).
4. Using a voltmeter (rating 1000 V DC), check that there is no residual voltage between screws S1 and
JC-DR-A-406.fm
Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A406 - Generator Command Board 400-PL1
Job Card PHY A042 - Remove/Reinstall Generator
Page no. 1569
Senographe DS
Chapter 9
Chapter 9
