b. Position the top lip of the Gantry LOTO Tool so that it sits behind the inner surface of the Gantry.
c. Push the knob (7) upwards so that the lower moveable lip (8) disappears into the lower part of the
Gantry LOTO Tool.
8
d. With the lower lip hidden, push the lower part of the Gantry LOTO Tool into the Gantry so that it
sits flush with the outer surface of the Gantry framework. If necessary, look down the guidance
hole (9) to check the bottom part of the Arm disk is visible above the lower surface of the recess.
e. When the lower part of the Gantry LOTO Tool is flush with the outer surface of the Gantry frame-
JC-DR-A-232.fm
Service Information and Procedures Class A 2385072-16-8EN
9
7
Page no. 1261
Job Card D/R A232 - Lift Screw Assembly

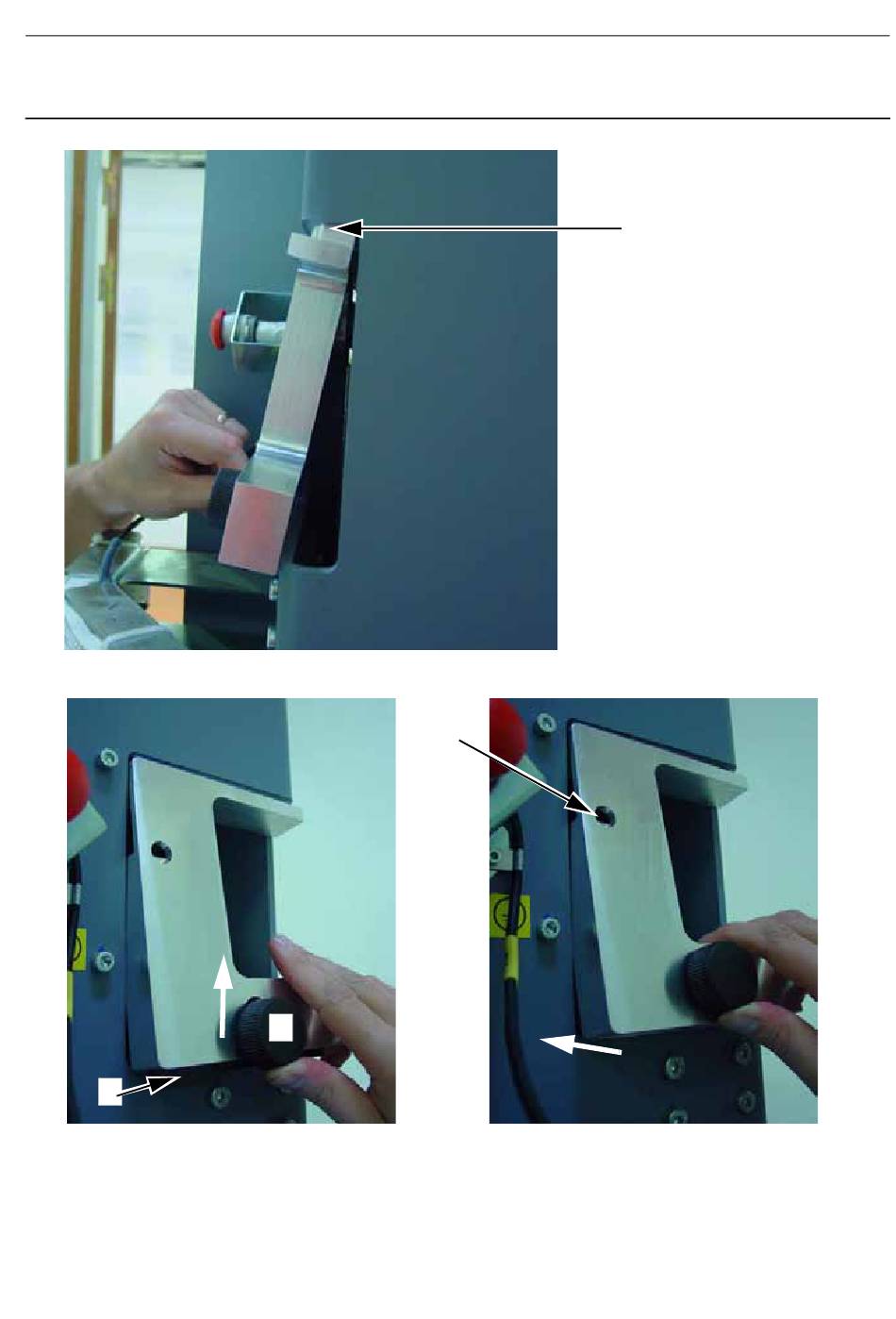

Slide Top lip of the Gan-
try LOTO Tool behind the
inner edge of the Gantry.
