GE Healthcare
Revision 1
Job Card D/R A313 - Trackball
6
PROCEDURE FOR ERGOTRON A ARMS
6-1
Disassembly of Trackball on Ergotron A Arms

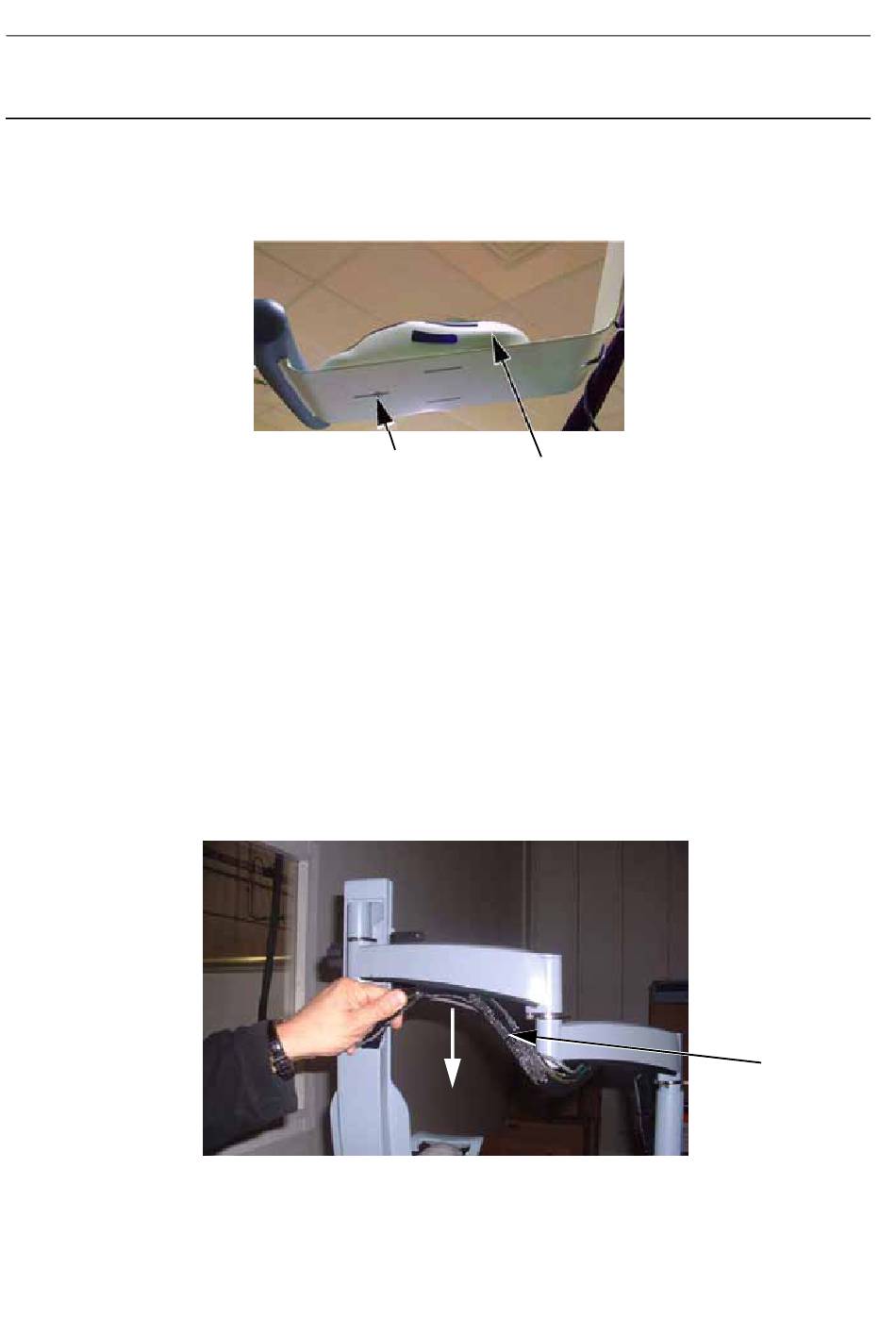

1. Locate the Control Station Trackball (1).
2. Release and remove the trackball securing screw (2) (cross-head screwdriver).
3. Unplug the trackball USB cable from the AWS workstation rear panel.
6-2
Reassembly of New Trackball on Ergotron A Arms
Reverse the disassembly procedure.
7
PROCEDURE FOR ERGOTRON B ARMS
7-1
Disassembly of Trackball on Ergotron B Arm
1. Unplug and remove the X-ray Console.
2. Remove Control Station Top Cover. See
Covers on page
503.
3. Remove Control Station Omega Cover. See
Covers on page
503.
4. Carefully extract the harness (1) from the rotative arm.
5. Cut the cable ties from the monitor harness to free the trackball cable.
6. Disconnect the trackball cable from the USB extension cable.
7. Extract the trackball cable from the opening of the rotative arm support (2) and from the trackball and
Chapter 9
Service Information and Procedures Class A 2385072-16-8EN
2
Job Card PHY A040 - Remove/Reinstall Control Station
Job Card PHY A040 - Remove/Reinstall Control Station
Page no. 1428
1
Senographe DS
1
JC-DR-A-313.fm
