Job Card D/R A312 - Mouse
8 PROCEDURE FOR SISFLE ARM
8-1 Disassembly of Mouse on Sisfle Arm
1. Unplug and remove the X-ray Console.
2. Remove the Top Cover (see
503).
3. Remove the Omega Cover (see
page 503).

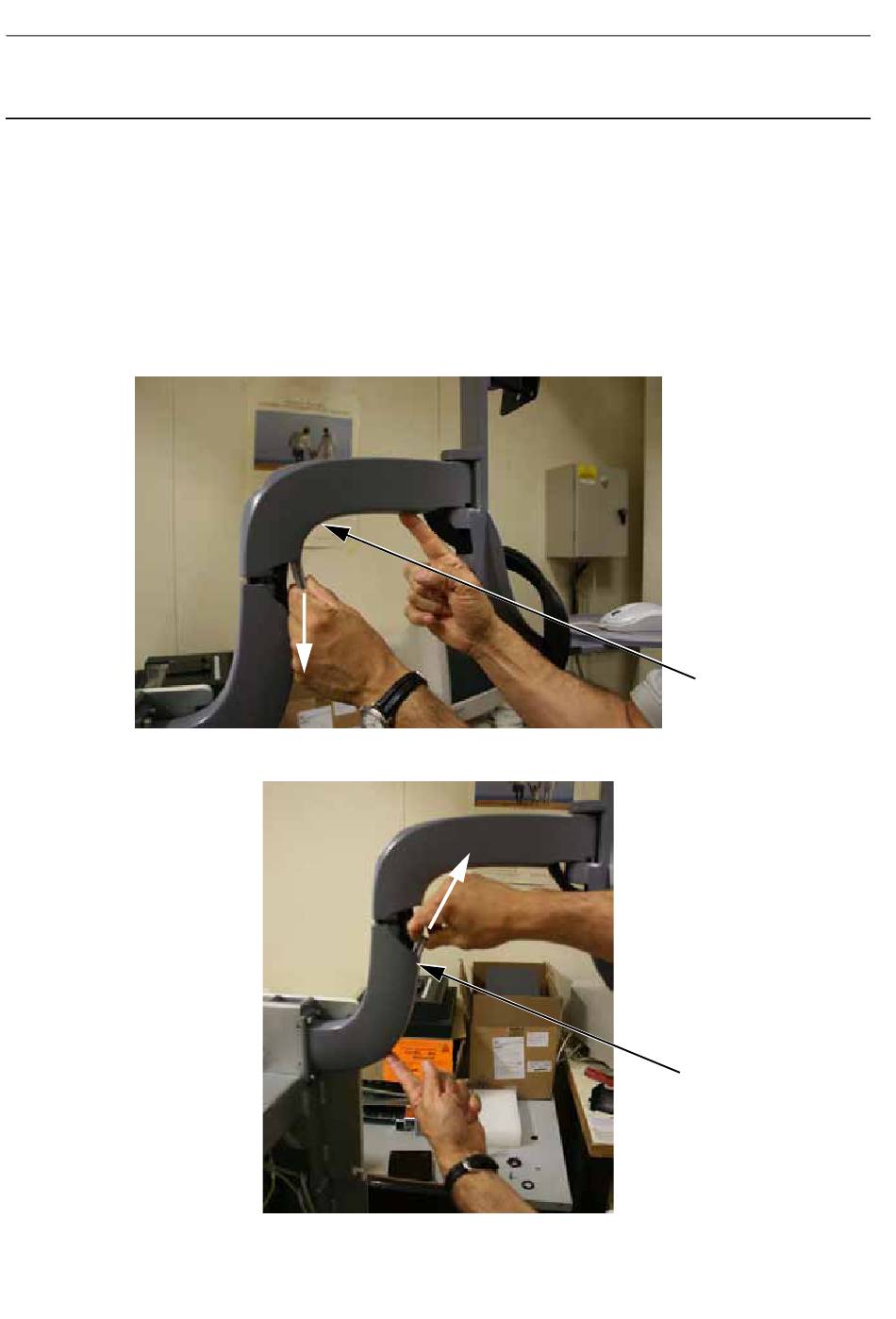

4. Carefully pull on the upper silicone mask (1) to remove it from the rotative arm. Store the upper sili-
cone mask in a clean place.
5. Carefully pull on the lower silicone mask (2) to remove it from the rotative arm support. Store the
lower silicone mask in a clean place.
