GE Senographe DS Manual page 749

GE Healthcare
Revision 1
/ LED settings is selected, and press
With monitor connected via DVI (V3/V4 CS)

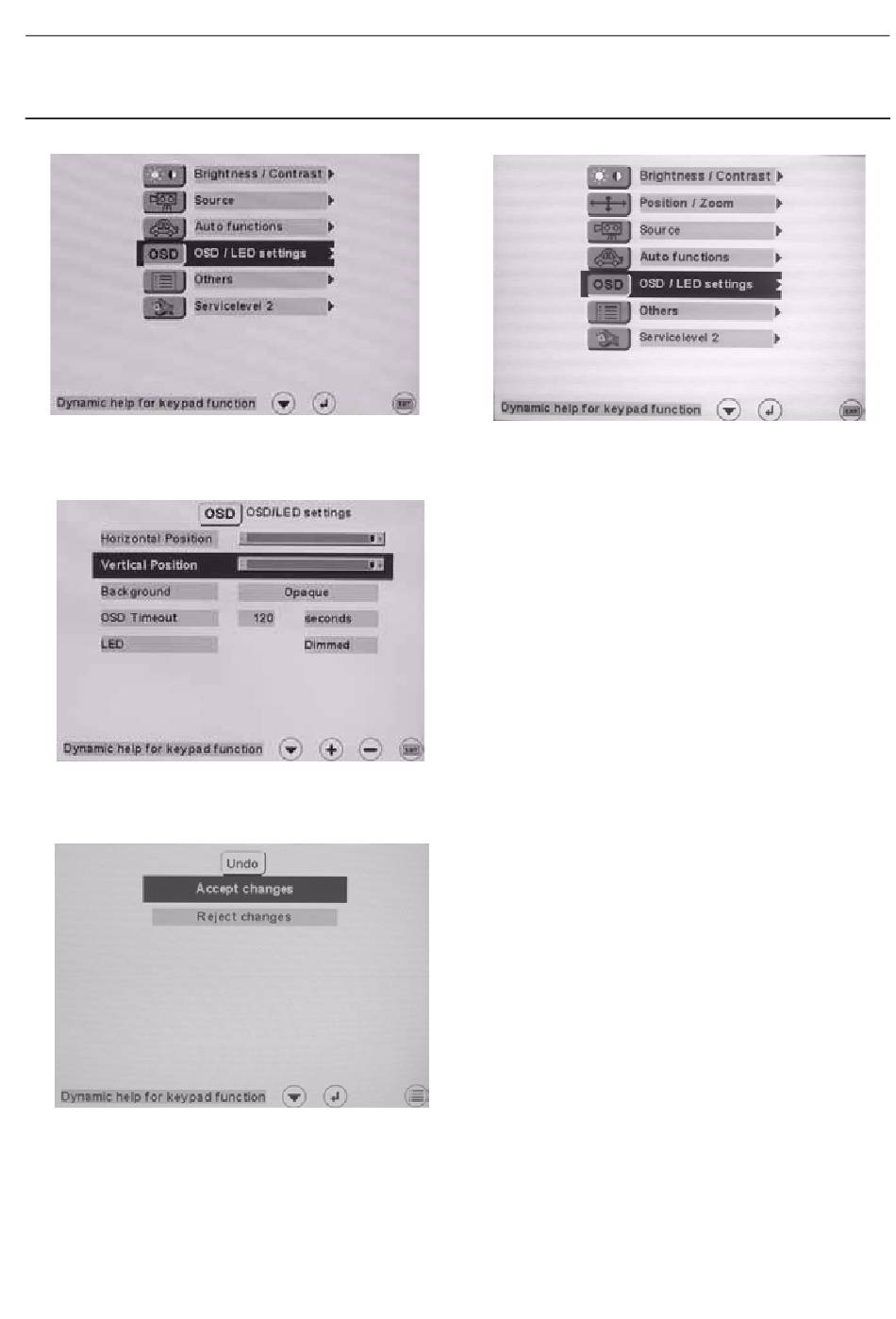

3. From the OSD / LED settings menu, keep pressing the Key1 button until Vertical Position is selected,
and press
the Key2/Key3 button
4. When you have reached the desired position for the OSD, keep pressing the Key4 button until Exit
OSD appears. Then keep pressing the Key1 button until Accept changes is selected, then press the
Key2 button to exit and save the settings.
5. Once the OSD menu is in a convenient position, proceed as follows:
• If you have a V3/V4 Control Station, go to
• If you have a V1/V2 Control Station, go to
JC-ELE-A-043.fm
Service Information and Procedures Class A 2385072-16-8EN
the Key2 button
until the position of the OSD is towards the top of the screen.
section 8-6-1
section 8-6-2
Page no. 749
Job Card ELE A043 - AWS Monitor Calibration
to enter the OSD / LED settings menu.
With monitor connected via BNC (V1/V2 CS)
for the 19" monitor.
for the 19" monitor.
Senographe DS
Chapter 7
