GE Healthcare
Revision 1
5-1-1

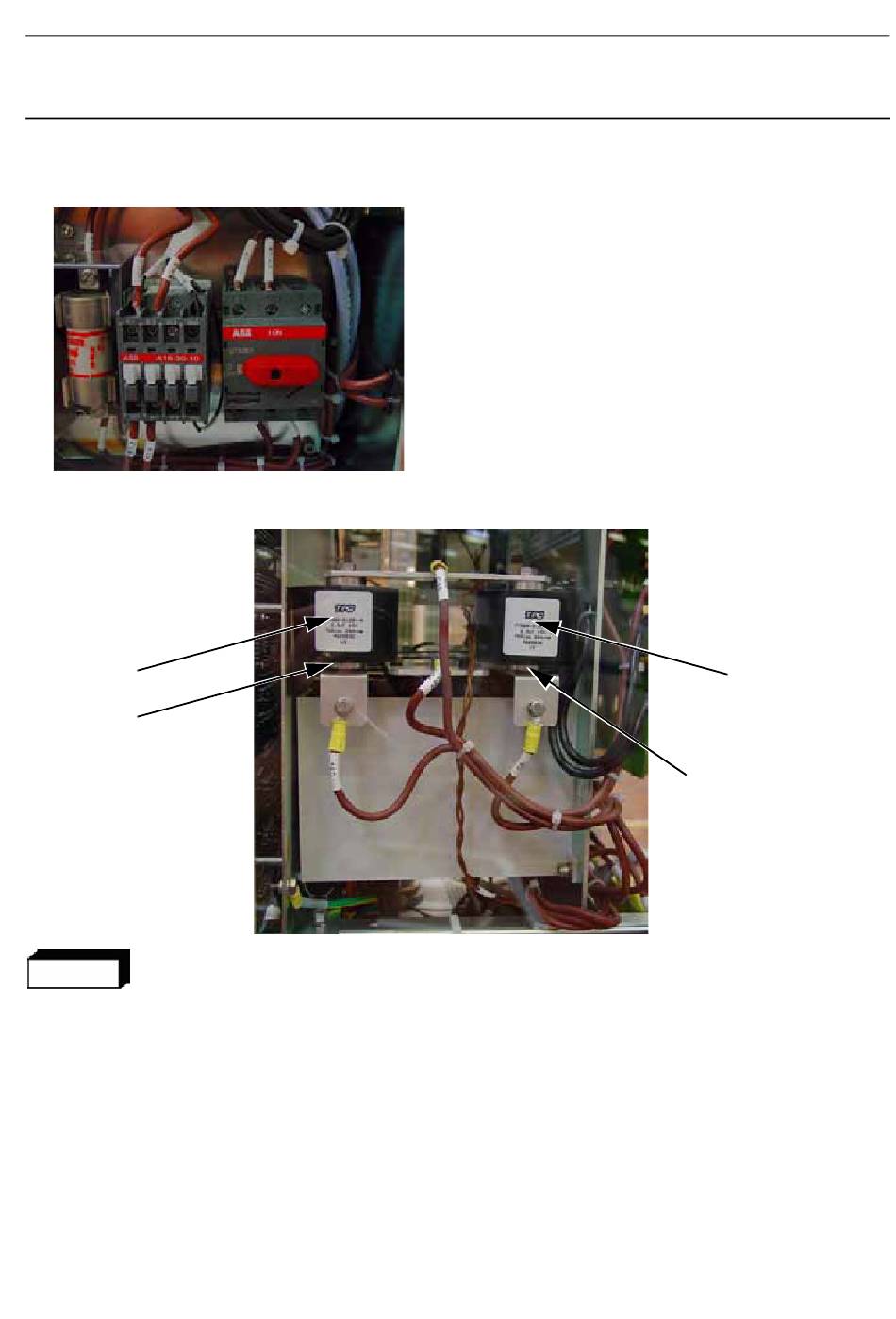

Ensure that the Generator Command Board Capacitors are Discharged
1. Wait 10 minutes for the components within the Generator to discharge.
2. Switch off the electrical power supply on the rotary switch in the Generator cabinet (position 0).
3. Using a voltmeter (rating 1000 V DC), check that there is no residual voltage between screws S1 and
S2 before proceeding.
RC1
S1
WARNING
Residual voltage stored in the resonant capacitors can be dangerous. Ensure that the res-
onant capacitors are fully discharged before you handle the fuses on the Generator Com-
mand board.
JC-DR-A-150.fm
Service Information and Procedures Class A 2385072-16-8EN
Page no. 1111
Senographe DS
Job Card D/R A150 - System Fuses
RC2
S2
Chapter 9
