Job Card TSG A016 - Rotation Movement Troubleshooting
5. While applying resistance during the downward motion, check on the Gantry LCD Display whether
the following Rotation related errors appear:
• 112/011 - Rotation control error
• 112/012 - Rotation control error
• 112/023 - Rotation control error
If there are no Rotation related errors/warnings during the downward motion resistance test, the cor-
rective action worked, and no further action is required.
If there are Rotation related errors/warnings during the downward motion resistance test, the correc-
tive action did not work, and you must continue with the troubleshooting tasks in illustration 1.
3-2 Cable Checks
1. Remove the Gantry column covers.
2. Ensure that the Motor cables W206 and W205 to the Rotation Board (connector J10 and J9) are
routed and secured with cable ties as indicated in illustration 2. If they are not routed correctly, re-
route them as indicated in
3. Ensure that the clutch cables are correctly positioned, and secured to the spacer of Rotation Board
PL202 by a cable tie as indicated in illustration 3.If they are not routed correctly, re-route them as
indicated in section 3-3
4. Use the slow speed Arm Control buttons to rotate the Arm over the whole range in slow speed, and
check that the Rotation Motor cables and Rotation Clutch cables are free to move without physical
interference from other parts of the Gantry.
3-3 Cable Re-routing
Ensure that the Motor cables W206 and W205 to the Rotation Board (connector J10 and J9) are routed
and secured with cable ties as indicated in illustration 2.

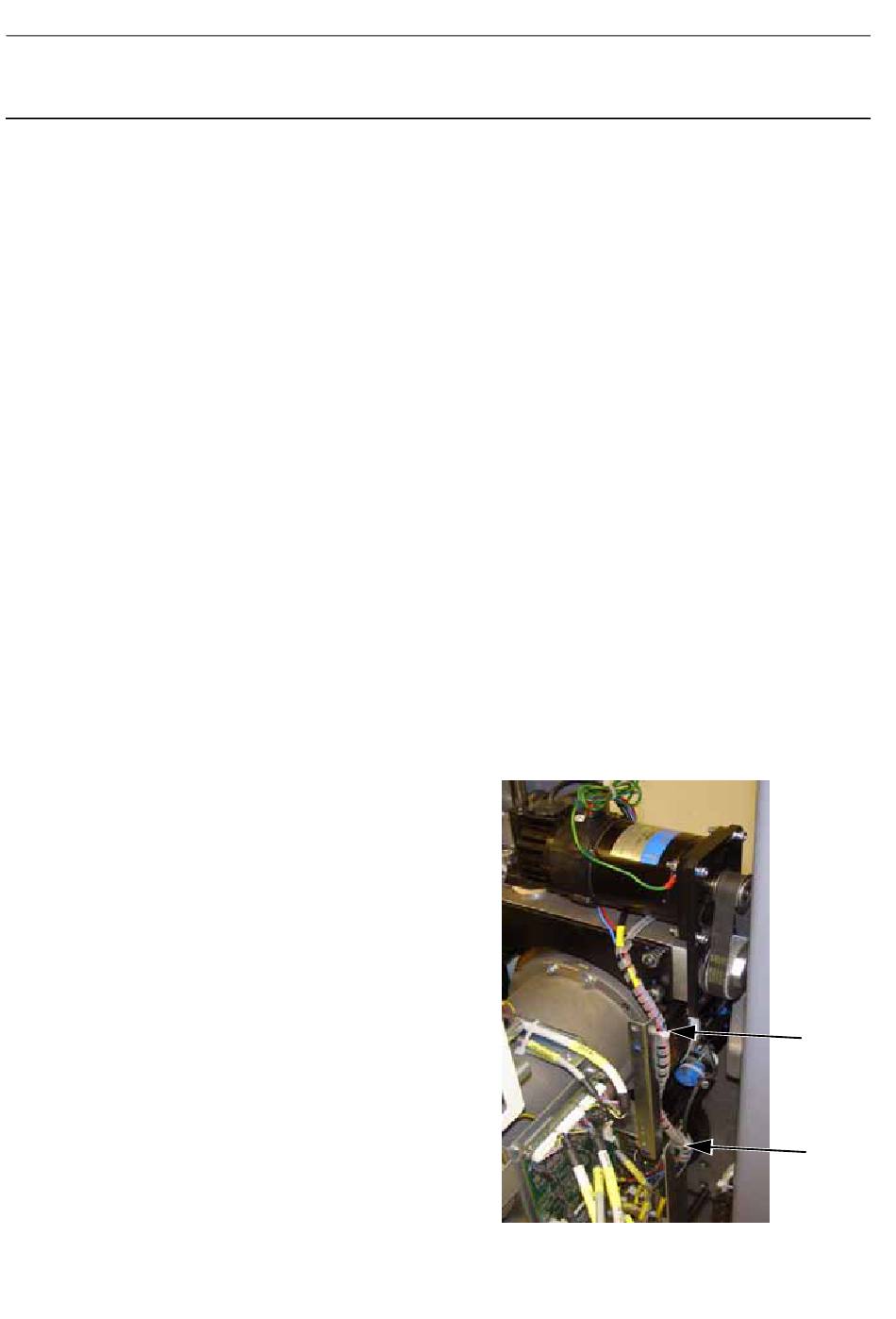

ILLUSTRATION 2 - RECOMMENDED ROTATION MOTOR CABLE ROUTING
Chapter 9
Service Information and Procedures Class A 2385072-16-8EN
section 3-3 Cable Re-routing
,
Cable Re-routing
, .
Page no. 1062
.
Senographe DS
Cable
Tie
Cable
Tie
