95% / 100% grey level square

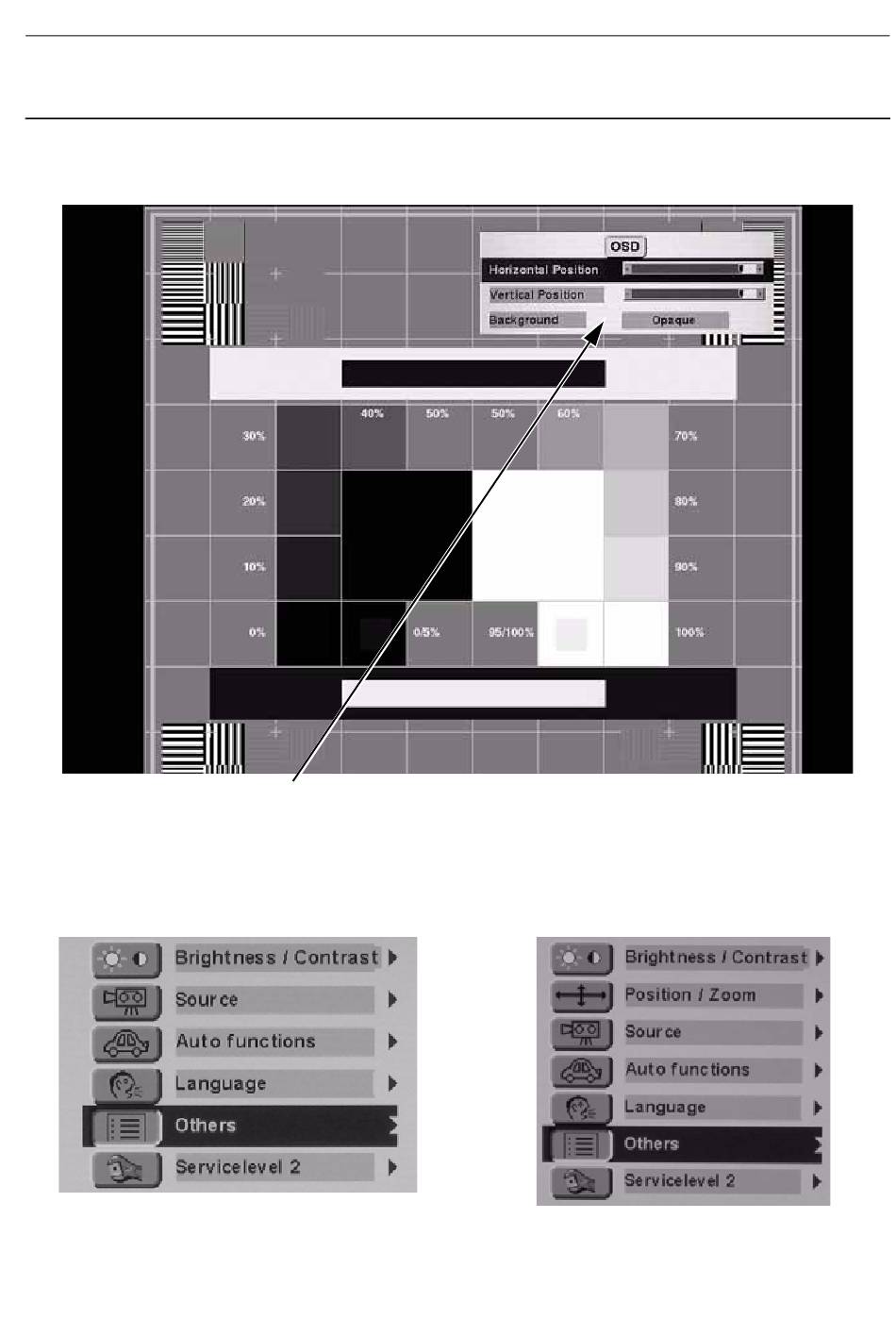

The image below represents a good example of OSD menu position with respect to the SMPTE pattern
displayed.
1. If the OSD main menu is already in a good position, go to step 6.
2. Press the MENU button to access the OSD main menu, then keep pressing the MENU button until
Others is selected, and press
With monitor connected via DVI (V3/V4 CS)
JC-ELE-A-043.fm
Service Information and Procedures Class A 2385072-16-8EN
The OSD menu does not cover the central white level
square used to do the monitor contrast, brightness or
backlight adjustment.
the UP button
Page no. 735
Job Card ELE A043 - AWS Monitor Calibration
to enter the Others menu.
With monitor connected via BNC (V1/V2 CS)
Senographe DS
Chapter 7
