GE Healthcare
Revision 1
Job Card D/R A311 - AWS Unit

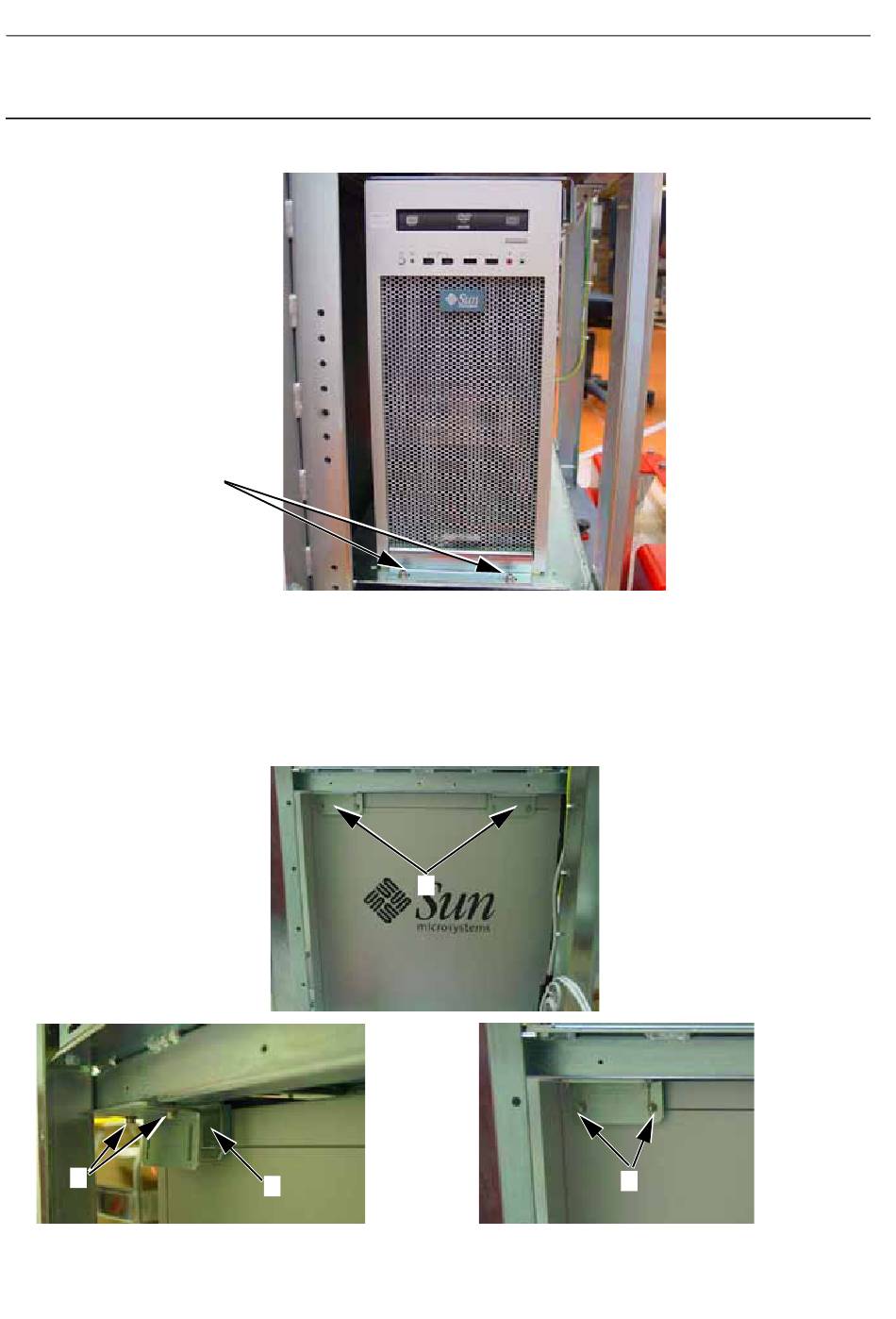

3. Attach the two allen screws and associated bracket (3) to secure the front of the AWS unit (4 mm
allen wrench).
4. Secure the top of the AWS unit to each of the side L-brackets (4) as follows:
a. Gently place the C-bracket (5) on the top of the AWS unit, so that its threads line up with the holes
on the L-bracket.
b. Push the L-bracket away onto threads of the C-Bracket.
c. Attach the two nuts (6) to secure the L-bracket to the C-bracket (7 mm open ended wrench).
d. Tighten the two allen screws (7) to secure the L-bracket to the Control Station framework (4 mm
allen wrench).
7
Chapter 9
Service Information and Procedures Class A 2385072-16-8EN
3
5
4
Page no. 1408
Senographe DS
6
JC-DR-A-311.fm
- Quick Links:
- Err Sub A001 - Generator Error...
Hide quick links:
Advertisement
Table of Contents
Troubleshooting
Need help?
Do you have a question about the Senographe DS and is the answer not in the manual?
Questions and answers
G.E.Essential l have recently bought What is the full weight.of the mamo Full weight of the console and other İtem's also measurements of each item with the main machine please All this Shipping Company required
The GE Senographe DS mammography machine is shipped in three crates with the following dimensions and weights:
- Crate 1 (Gantry, Generator Cabinet, and ramp):
- Dimensions: 2066 mm (81.34 in) depth × 848 mm (33.39 in) width × 2292 mm (90.24 in) height
- Mass: 641 kg (1410.2 lbs)
- Crate 2 (Control Station):
- Dimensions: 1110 mm (43.70 in) depth × 770 mm (30.31 in) width × 1850 mm (72.83 in) height
- Mass: 210.5 kg (464.07 lbs) for truck transport (without side covers and lid)
- Mass: 223.5 kg (492.73 lbs) for plane/boat transport (with side covers and lid)
- Crate 3 (Detector):
- Dimensions: 872 mm (34.33 in) depth × 2270 mm (89.37 in) width × 260 mm (10.24 in) height
- Mass: 104.4 kg (229.68 lbs)
### Total Mass:
- For truck transport: 641 + 210.5 + 104.4 = 955.9 kg (2104.95 lbs)
- For plane/boat transport: 641 + 223.5 + 104.4 = 968.9 kg (2133.61 lbs)
These values include the gantry, generator cabinet, control station, detector, and all related components.
