Job Card D/R A319 - Rotative Arm
6 PROCEDURE FOR ERGOTRON B ARM
6-1 Disassembly of Ergotron B Arm

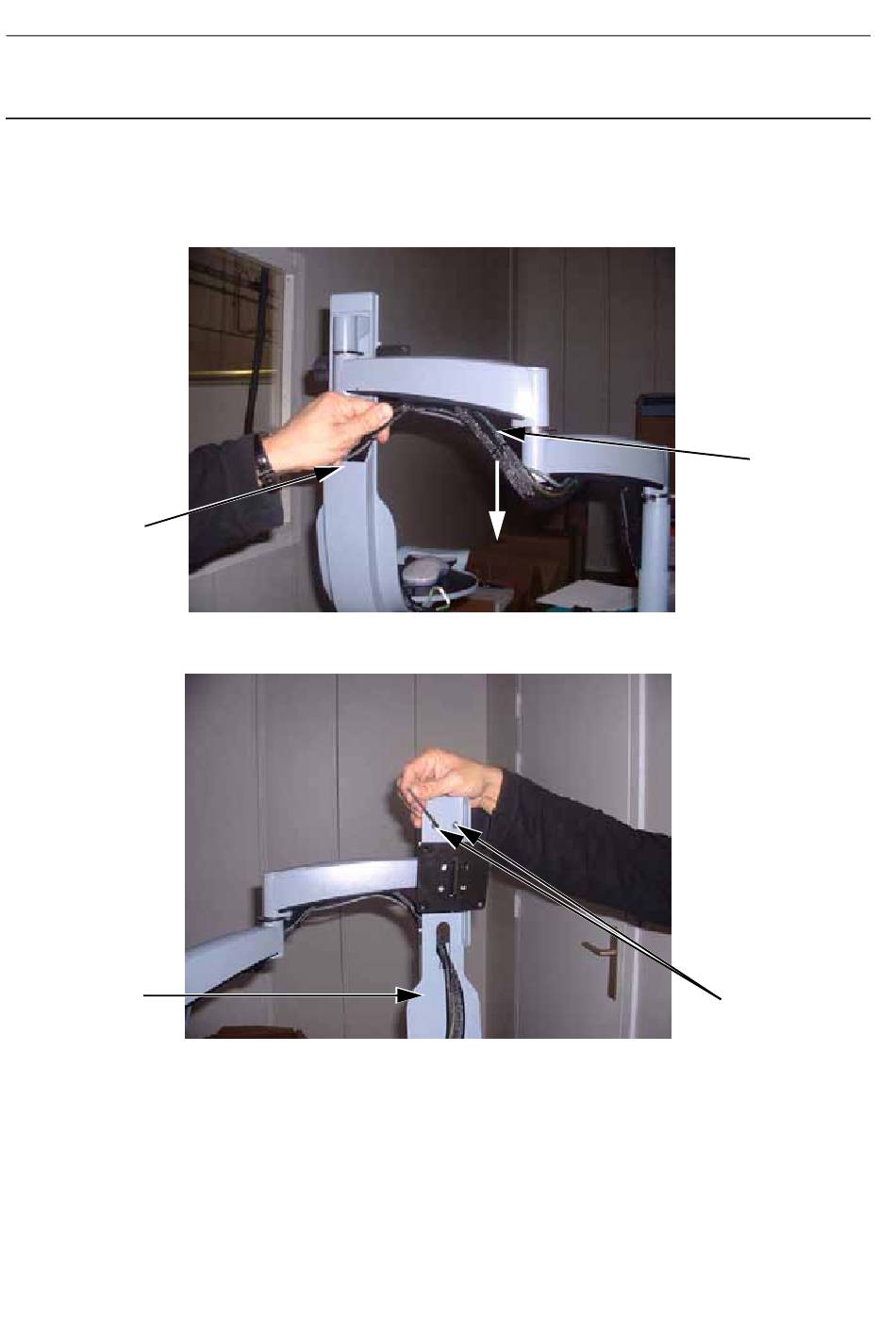

1. Carefully extract the harness (1) from the Rotative Arm and release them from the Monitor and
Mouse Support (2).
2
2. While holding the Monitor and Mouse Support (2), remove the two screws (3) securing it (allen
wrench 3/32'').
2
