GE Senographe DS Manual page 1574

GE Healthcare
Revision 1
Job Card D/R A406 - Generator Command Board 400-PL1

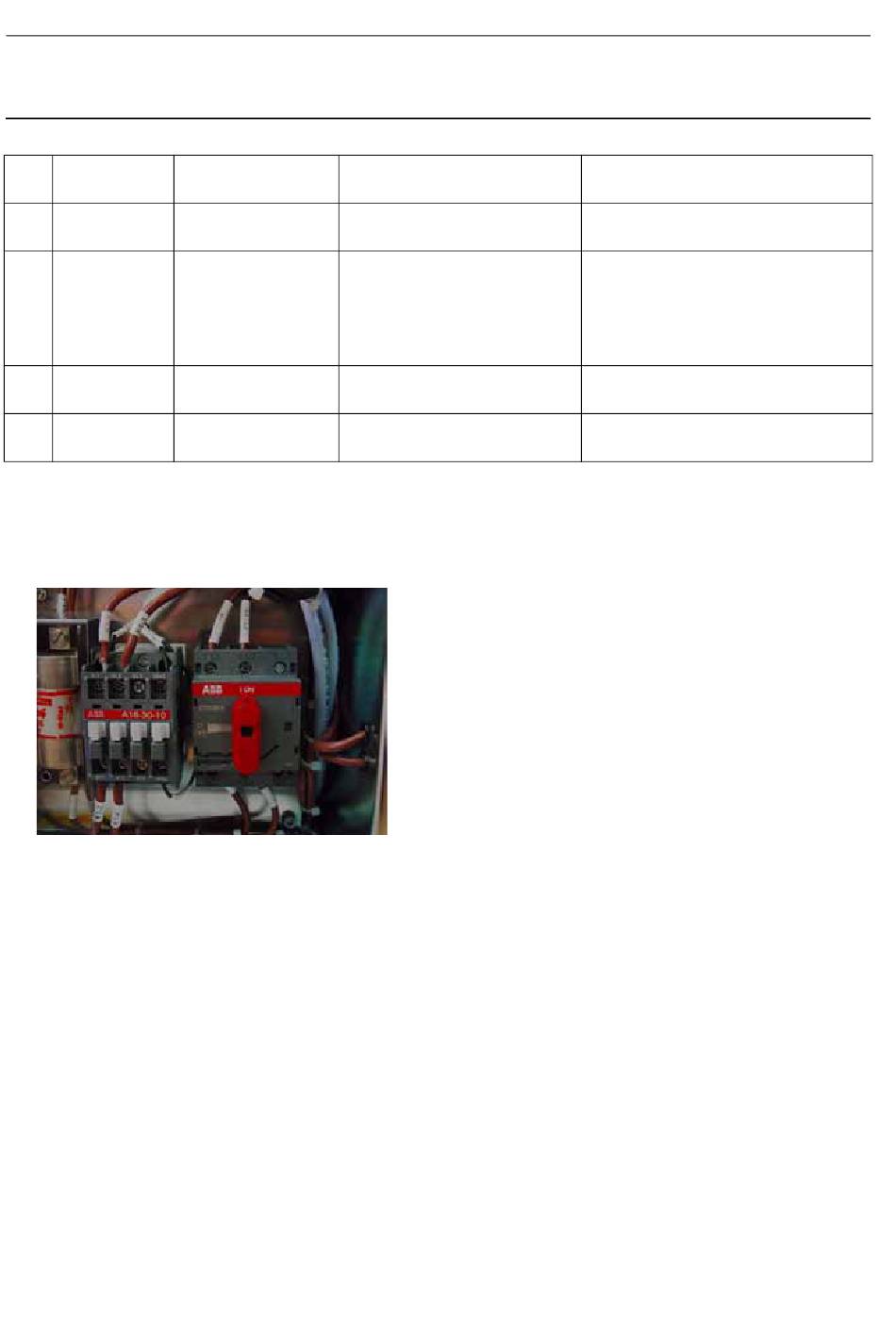

TABLE 1 - JP1 AND JP2 JUMPER SETTINGS
JP1
(PREP)
1 0
2 0
3 1
4 1
0 = No jumper
6. Ensure that all the Test Point (TP) connectors (labeled TP1, ... etc.) on the Generator Command
board are open.
7. Switch on the electrical power supply, both from the Mains Distribution Panel in the room and on the
rotary switch in the Generator cabinet (position I).
8. Switch on the Senographe system electrical power (i.e. Generator, Gantry, and Control Station).
9. Wait until the Gantry boot is complete, and check that no error has been reported.
If the Generator Command board is operating correctly, the LED states on the Generator Command
board are as follows:
• green DS1 LED is OFF
• yellow DS2 LED is OFF
• green DS3 LED is OFF
• red DS4 LED is ON
• yellow DS5 LED is OFF
• green DS6 LED is ON
• yellow DS7 LED ON
10. Reinstall the Generator covers (see
page 513).
Chapter 9
JP2
(RADIOGRAPHY)
0 PREP and RADIOGRAPHY
enabled
1 PREP and RADIOGRAPHY
enabled
0 PREP and RADIOGRAPHY
enabled
1 PREP and RADIOGRAPHY
enabled
1 = Jumper present
Job Card PHY A042 - Remove/Reinstall Generator Covers on
Service Information and Procedures Class A 2385072-16-8EN
Door closed
• red DS8 LED is OFF
• green DS9 LED ON
• yellow DS10 LED is OFF
• green DS11 LED ON
• red DS12 LED is OFF
• red DS13 LED is OFF
Page no. 1574
Senographe DS
Door opened
PREP and RADIOGRAPHY
disabled
PREP and RADIOGRAPHY
disabled.
if the door opens during
NOTE:
an exposure, the exposure is not
aborted and completes normally
PREP enabled
RADIOGRAPHY disabled
PREP and RADIOGRAPHY
enabled
)
