GE Healthcare
Revision 1
Job Card D/R A319 - Rotative Arm
port (7). Remove the mouse and store it in a clean place.

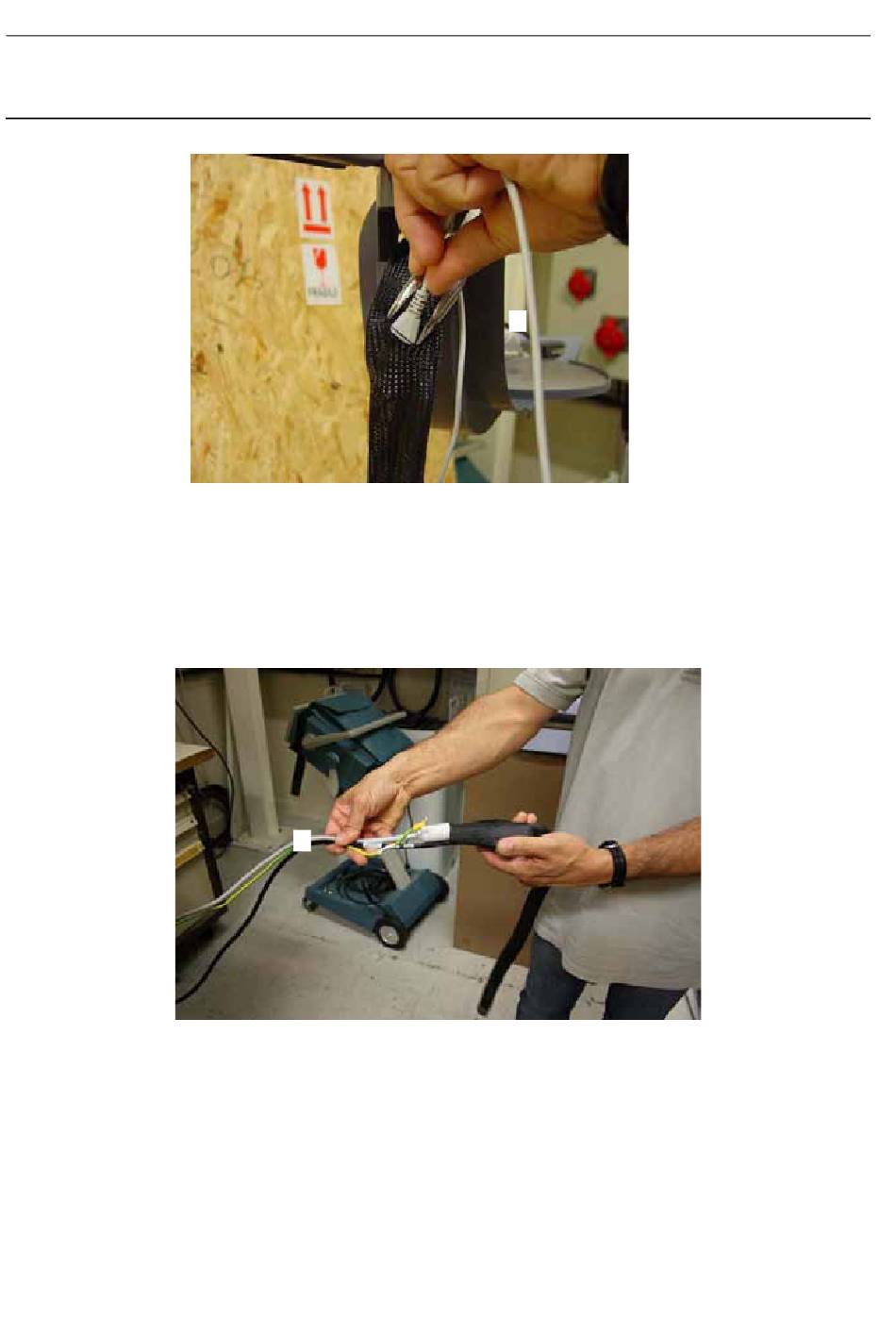

7. Extract the harness from the opening of the monitor support (7). To ease the harness extraction, pull
the harness back from the monitor cables and remove the monitor cables from opening of the moni-
tor support in the following order:
•
Ground cable
•
DVI video cable (for V3/V4 Control Stations) or BNC video cables (for V2 Control Stations)
•
Power cable
8. Remove the monitor cables (8) from the harness, and put the harness in a clean place.
9. Pass each of the monitor cables through the opening of the rotative arm support and store them on
top of the Control Station keyboard. To do this easily, proceed as described in the following sub-
steps.
Chapter 9
Service Information and Procedures Class A 2385072-16-8EN
8
Page no. 1490
6
Senographe DS
JC-DR-A-319.fm
- Quick Links:
- Err Sub A001 - Generator Error...
Hide quick links:
Advertisement
Table of Contents
Troubleshooting
Need help?
Do you have a question about the Senographe DS and is the answer not in the manual?
Questions and answers
G.E.Essential l have recently bought What is the full weight.of the mamo Full weight of the console and other İtem's also measurements of each item with the main machine please All this Shipping Company required
The GE Senographe DS mammography machine is shipped in three crates with the following dimensions and weights:
- Crate 1 (Gantry, Generator Cabinet, and ramp):
- Dimensions: 2066 mm (81.34 in) depth × 848 mm (33.39 in) width × 2292 mm (90.24 in) height
- Mass: 641 kg (1410.2 lbs)
- Crate 2 (Control Station):
- Dimensions: 1110 mm (43.70 in) depth × 770 mm (30.31 in) width × 1850 mm (72.83 in) height
- Mass: 210.5 kg (464.07 lbs) for truck transport (without side covers and lid)
- Mass: 223.5 kg (492.73 lbs) for plane/boat transport (with side covers and lid)
- Crate 3 (Detector):
- Dimensions: 872 mm (34.33 in) depth × 2270 mm (89.37 in) width × 260 mm (10.24 in) height
- Mass: 104.4 kg (229.68 lbs)
### Total Mass:
- For truck transport: 641 + 210.5 + 104.4 = 955.9 kg (2104.95 lbs)
- For plane/boat transport: 641 + 223.5 + 104.4 = 968.9 kg (2133.61 lbs)
These values include the gantry, generator cabinet, control station, detector, and all related components.
