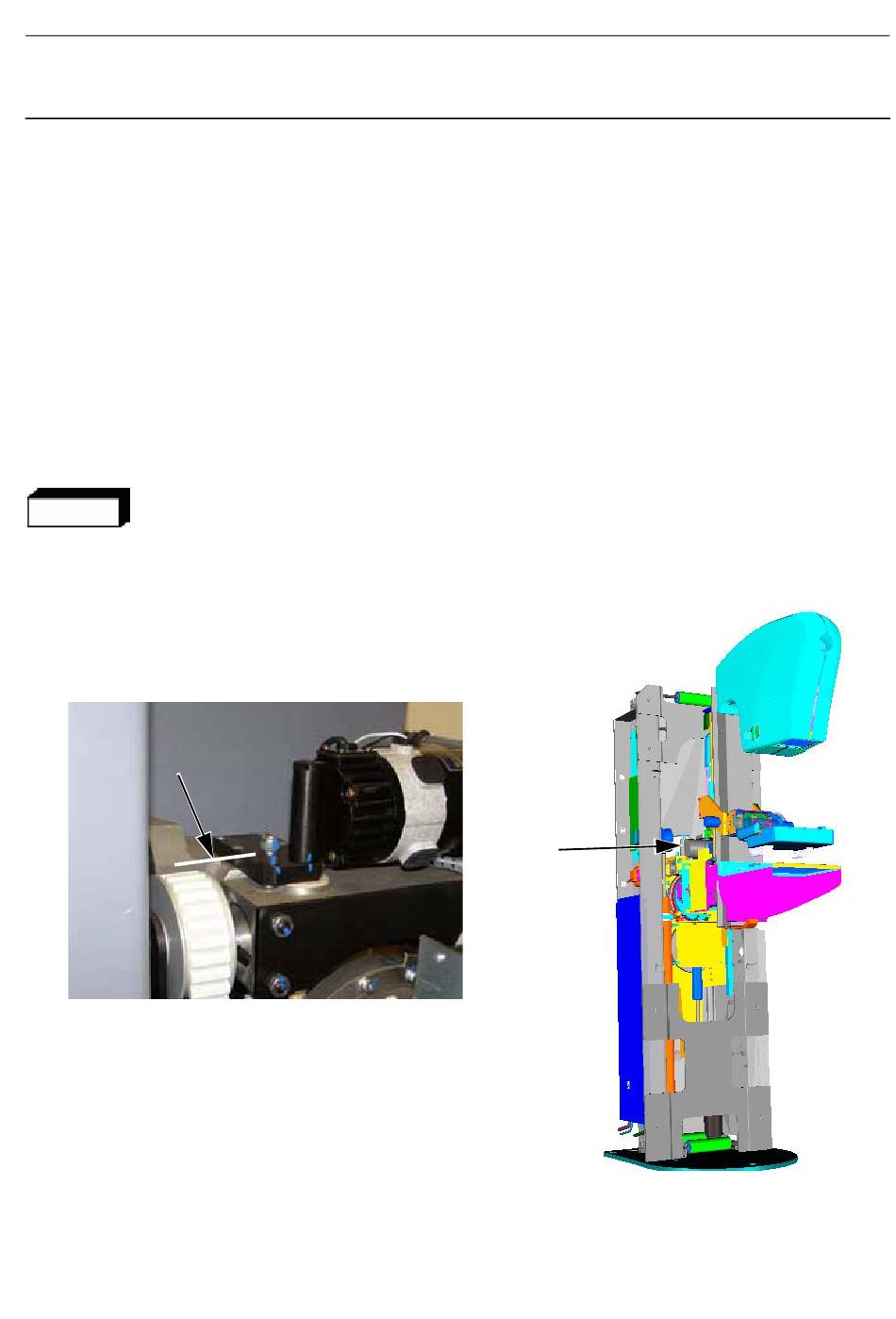

Job Card D/R A224 - Gas Spring for Rotation Worm Gear
1
SUPPLIES
Gas Spring for Rotation Worm Gear-100N
2
TOOLS
Standard Tool Box
3
REQUIRED EFFORT
Personnel: 1 Field Engineer
Time: 60 minutes
4
SAFETY PRECAUTIONS
WARNING
The Gantry must be powered off.
5
PREREQUISITES
•
Remove the front covers (refer to
Remove/Reinstall Gantry Covers on page
•
Raise the arm until the mounting plate of the Gas Spring
rises above the pulley of lift belt.
•
Rotate the arm to about 45 degrees clockwise from verti-
cal for good access to the housing of the Gas Spring (1)
•
Switch off the Gantry power.
JC-DR-A-224.fm
Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A224 - Gas Spring for Rotation Worm Gear
Job Card PHY A044 -
523).
Page no. 1235
