GE Healthcare
Revision 1
Job Card TSG A012 - Use of DB9 Adaptors to Reduce Intermittent IDC or ADS Communication Errors
The DB9 Adaptor Kit contains eight DB9 straight male/female adaptors that will improve the electrical
connection on the serial and RT cables within the system.

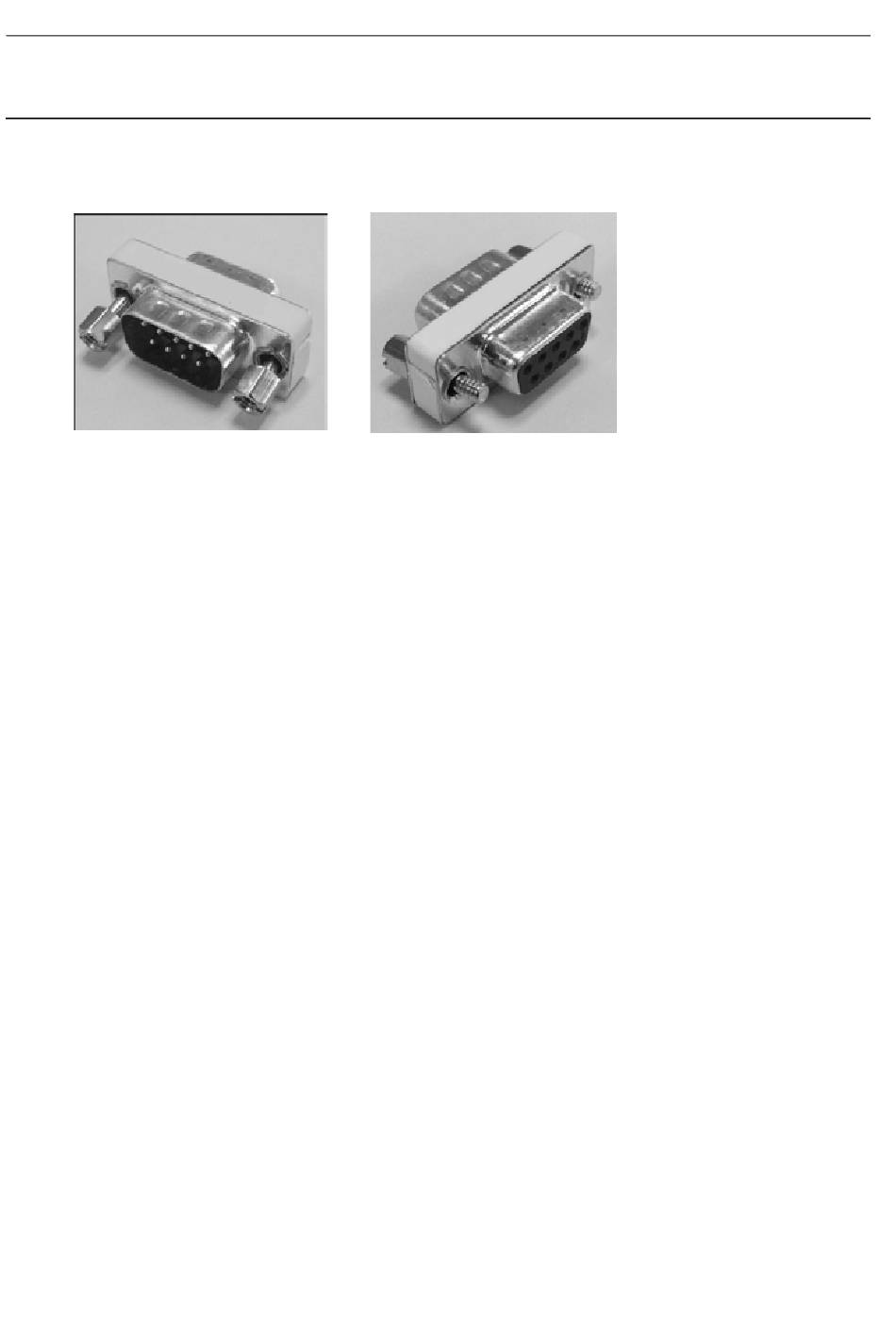

ILLUSTRATION 2 - DB9 STRAIGHT MALE/FEMALE ADAPTORS
Female Side
2
APPLICABILITY
Perform this Job Card only if your other previous trouble-shooting attempts have failed to resolve the
IDC and/or ADS errors listed in Table 1.
3
SUPPLIES
DB9 Adaptor Kit (5420609).
4
TOOLS
Standard Tool Box
(including a small flat screwdriver).
5
REQUIRED EFFORT
Personnel: 1 Field Engineer
Time: 25 to 40 minutes including all functional checks
6
SAFETY PRECAUTIONS
None.
7
PREREQUISITES
•
Shut down the system and switch off the Generator hospital supply circuit breaker.
•
Remove Control Station omega cover. See
Covers on page
503.
Chapter 9
Service Information and Procedures Class A 2385072-16-8EN
Male Side
Job Card PHY A040 - Remove/Reinstall Control Station
Page no. 1030
Senographe DS
JC-TSG-A-012.fm
