Job Card D/R A243 - Compression Potentiometer and Cable
6 PROCEDURE
6-1 Disassembly of the Potentiometer
1. Disconnect the Potentiometer cable (W303) from the Compression Board (connector J6).

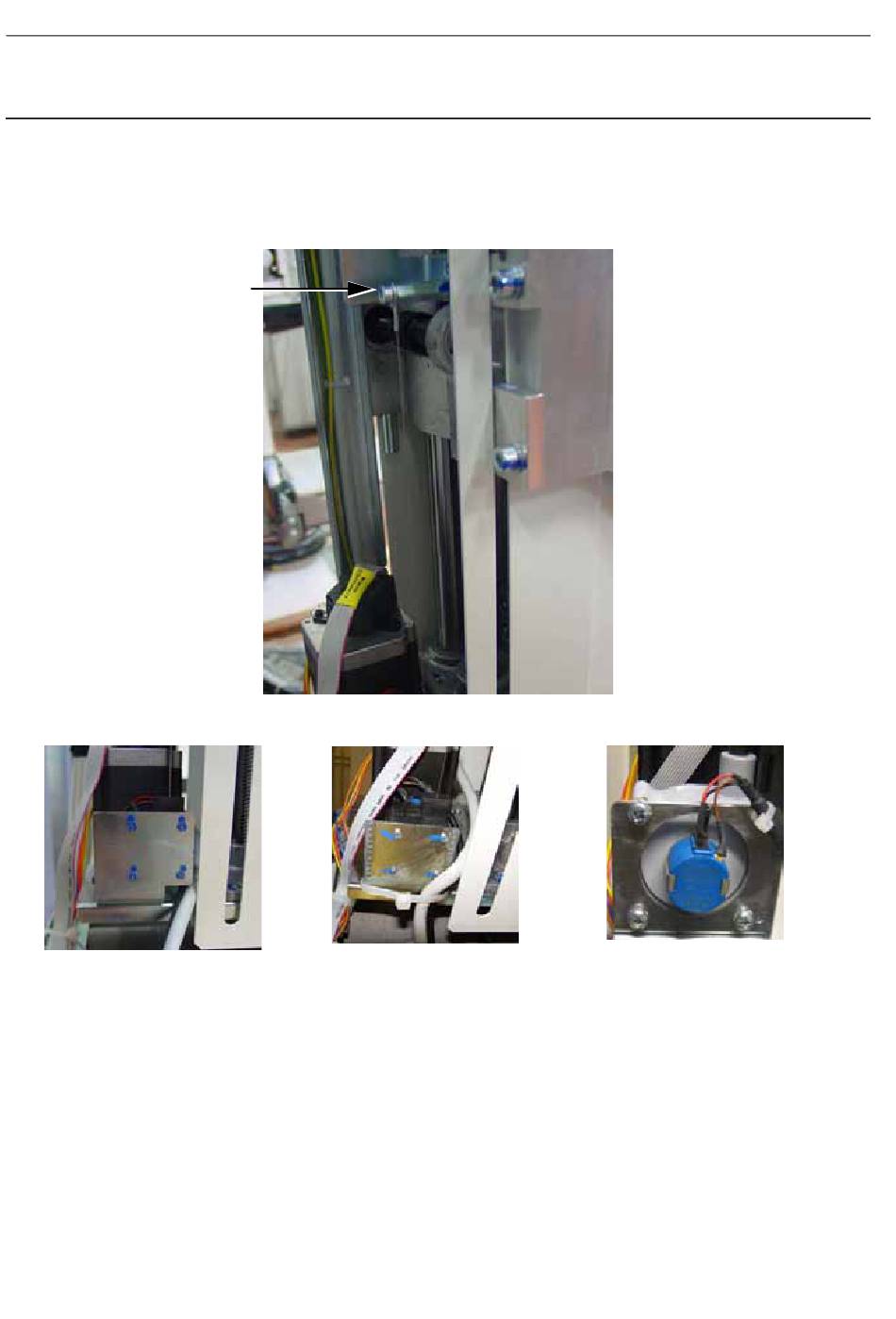

2. Release the screw securing the extremity of the position detecting wire (1) (3 mm Allen wrench).
3. Identify the type of Compression Potentiometer currently installed (see illustration below) to deter-
mine your next step.
Type 1
Determine your next step:
• If you have a Type 1 or Type 2 Compression Potentiometer, go to step 6.
• If you have a Type 3 Compression Potentiometer, go to step 4.
4. Remove the screws (2) securing the Compression Potentiometer to the Compression Potentiometer
Chapter 9
Service Information and Procedures Class A 2385072-16-8EN
1
Page no. 1290
Type 2
Senographe DS
Type 3
