GE Healthcare
Revision 1
Job Card D/R A414 - Power Line Filter Box

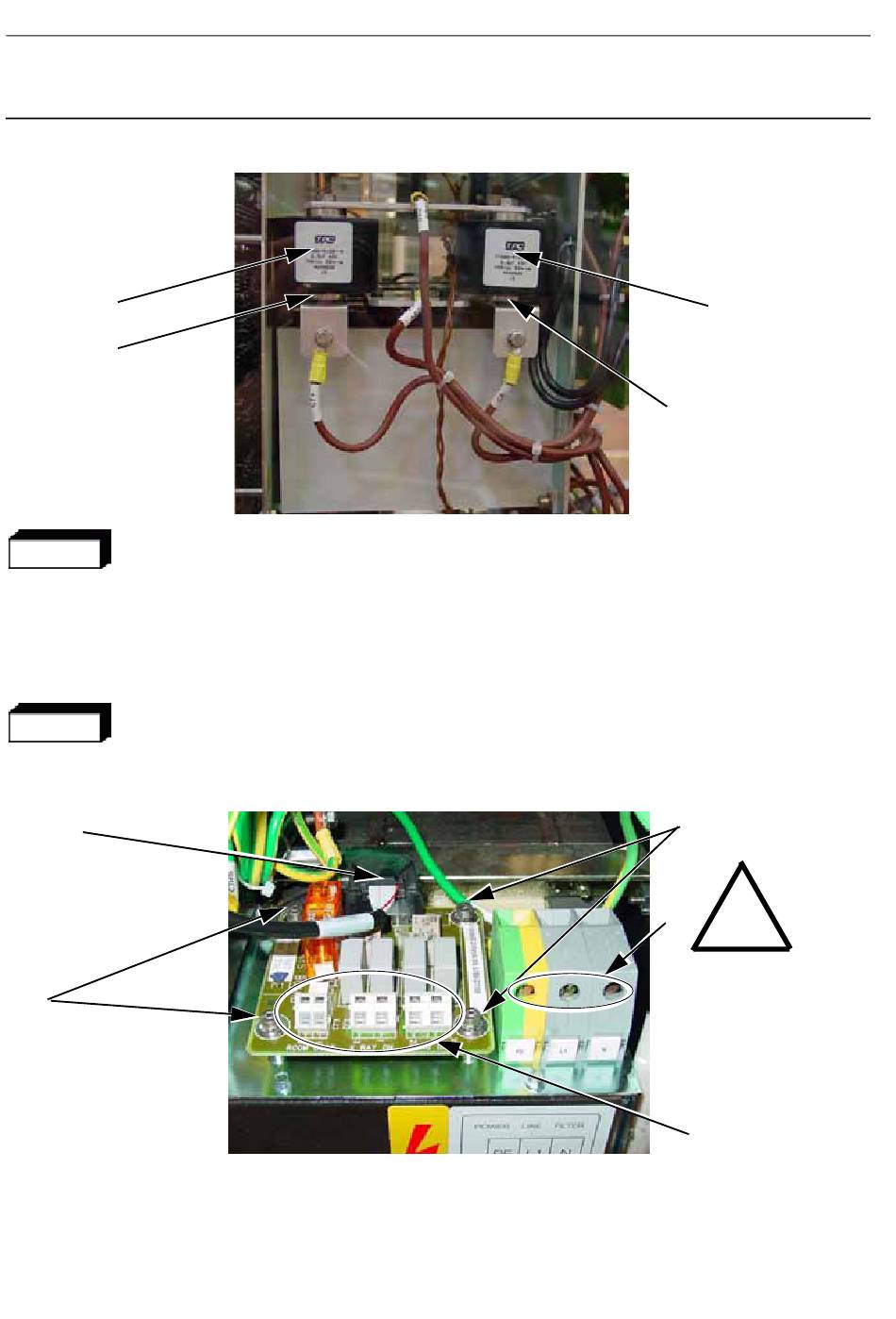

4. Using a voltmeter (rating 1000 V DC), check that there is no residual voltage between screws S1 and
S2 before proceeding.
RC1
S1
WARNING
Residual voltage stored in the resonant capacitors can be dangerous. Ensure that the res-
onant capacitors are fully discharged before you handle the Relay board and Power Line
Filter.
5. Switch off the external power supply that runs between the room lamps and the cables (1) that are
connected to the Generator Relay board.
WARNING
The lamp cables contain a live voltage from an external source. It is important that you
switch off the external power supply to the lamp cables because you will be handling them
in order to remove Generator Relay board.
3
4
6. The Generator Relay board is located on the side of the Generator, behind the Generator Interface
board. Make a note of the Generator Relay board current lamp and door cable configuration. The
configuration determines how the room lamps and door operate with the Senographe system for that
Chapter 9
Service Information and Procedures Class A 2385072-16-8EN
Page no. 1618
Senographe DS
RC2
S2
4
!
2
Ensure that the external
power from the room Mains
Distribution Panel has been
switched off before you start
to handle the Line Supply
Cables.
1
JC-DR-A-414.fm
- Quick Links:
- Err Sub A001 - Generator Error...
Hide quick links:
Advertisement
Table of Contents
Troubleshooting
Need help?
Do you have a question about the Senographe DS and is the answer not in the manual?
Questions and answers
G.E.Essential l have recently bought What is the full weight.of the mamo Full weight of the console and other İtem's also measurements of each item with the main machine please All this Shipping Company required
The GE Senographe DS mammography machine is shipped in three crates with the following dimensions and weights:
- Crate 1 (Gantry, Generator Cabinet, and ramp):
- Dimensions: 2066 mm (81.34 in) depth × 848 mm (33.39 in) width × 2292 mm (90.24 in) height
- Mass: 641 kg (1410.2 lbs)
- Crate 2 (Control Station):
- Dimensions: 1110 mm (43.70 in) depth × 770 mm (30.31 in) width × 1850 mm (72.83 in) height
- Mass: 210.5 kg (464.07 lbs) for truck transport (without side covers and lid)
- Mass: 223.5 kg (492.73 lbs) for plane/boat transport (with side covers and lid)
- Crate 3 (Detector):
- Dimensions: 872 mm (34.33 in) depth × 2270 mm (89.37 in) width × 260 mm (10.24 in) height
- Mass: 104.4 kg (229.68 lbs)
### Total Mass:
- For truck transport: 641 + 210.5 + 104.4 = 955.9 kg (2104.95 lbs)
- For plane/boat transport: 641 + 223.5 + 104.4 = 968.9 kg (2133.61 lbs)
These values include the gantry, generator cabinet, control station, detector, and all related components.
This answer is automatically generated
