Job Card D/R A190 - Gantry CPU Board
To prevent damage to the connectors on the Interface Board, ensure that the top screws are progres-
sively tightened on each side.
4. Switch on the Gantry electrical power.
5. Wait until the Gantry boot is complete, and check that no error has been reported.

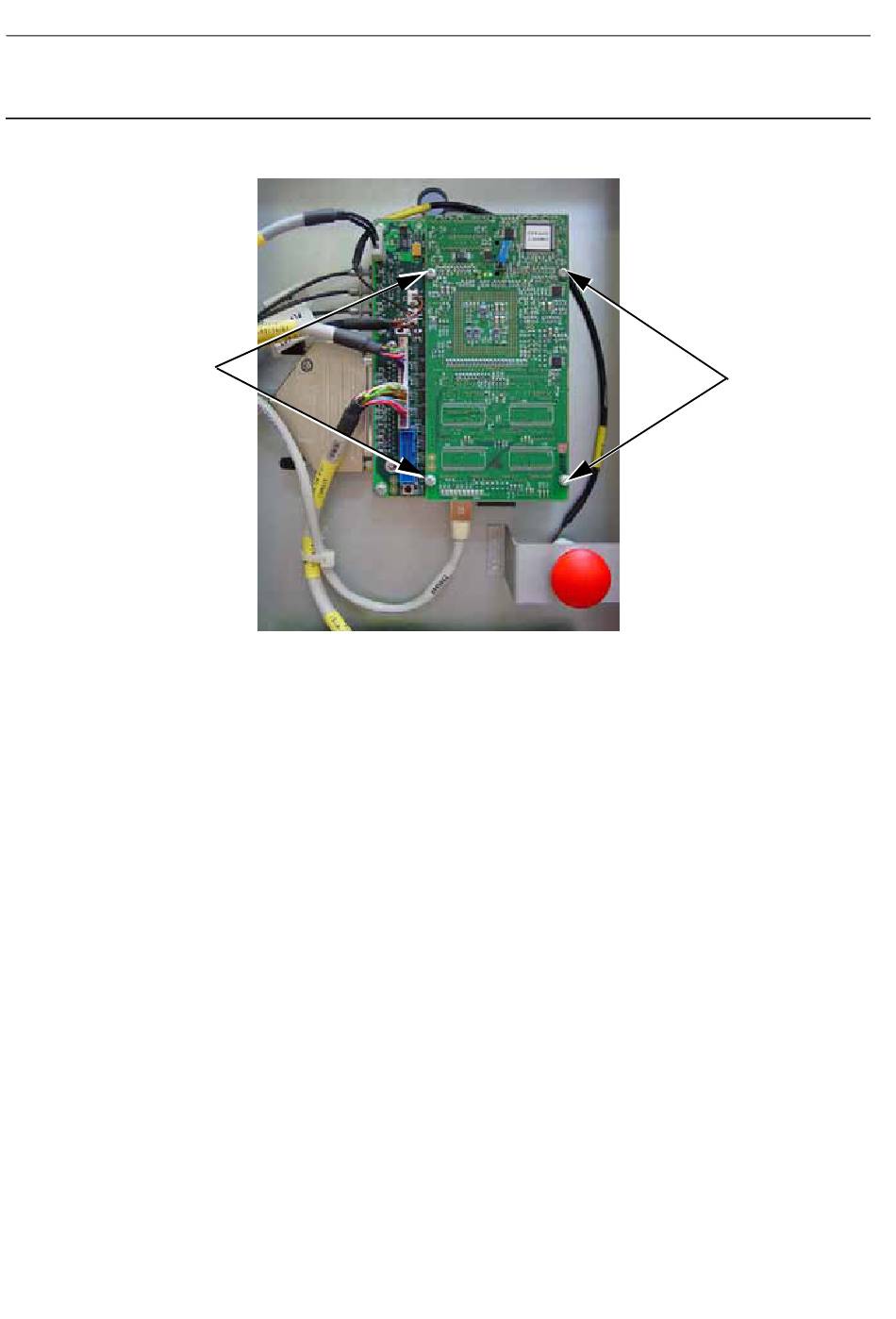

If the Gantry CPU board is operating correctly, the LED states are as follows:
•
all three of the green LEDs in the upper part of the Gantry CPU board (i.e. DS1, DS2, and DS3)
are ON
•
the first eight of the block of yellow LEDs starting on the left (i.e. DS4, DS5, DS6, DS7, DS8, DS9,
DS10, and DS11) blink in a cycling fashion from outside to inside
•
the last two of the block of yellow LEDs on the right-hand side (i.e. DS12 and DS13) are OFF
6. Switch off the Senographe electrical power.
7. Lift the top metal panel up to release it from the left side of the framework. Put it back over the frame-
work to hide the newly installed Gantry CPU board.
8. Reinstall the column cover (CPU side); refer to
ers on page
523.
Chapter 9
2
Service Information and Procedures Class A 2385072-16-8EN
Job Card PHY A044 - Remove/Reinstall Gantry Cov-
Page no. 1134
Senographe DS
2
JC-DR-A-190.fm
- Quick Links:
- Err Sub A001 - Generator Error...
Hide quick links:
Advertisement
Table of Contents
Troubleshooting
Need help?
Do you have a question about the Senographe DS and is the answer not in the manual?
Questions and answers
G.E.Essential l have recently bought What is the full weight.of the mamo Full weight of the console and other İtem's also measurements of each item with the main machine please All this Shipping Company required
The GE Senographe DS mammography machine is shipped in three crates with the following dimensions and weights:
- Crate 1 (Gantry, Generator Cabinet, and ramp):
- Dimensions: 2066 mm (81.34 in) depth × 848 mm (33.39 in) width × 2292 mm (90.24 in) height
- Mass: 641 kg (1410.2 lbs)
- Crate 2 (Control Station):
- Dimensions: 1110 mm (43.70 in) depth × 770 mm (30.31 in) width × 1850 mm (72.83 in) height
- Mass: 210.5 kg (464.07 lbs) for truck transport (without side covers and lid)
- Mass: 223.5 kg (492.73 lbs) for plane/boat transport (with side covers and lid)
- Crate 3 (Detector):
- Dimensions: 872 mm (34.33 in) depth × 2270 mm (89.37 in) width × 260 mm (10.24 in) height
- Mass: 104.4 kg (229.68 lbs)
### Total Mass:
- For truck transport: 641 + 210.5 + 104.4 = 955.9 kg (2104.95 lbs)
- For plane/boat transport: 641 + 223.5 + 104.4 = 968.9 kg (2133.61 lbs)
These values include the gantry, generator cabinet, control station, detector, and all related components.
This answer is automatically generated
