Senographe DS
Revision 1
Service Information and Procedures Class A 2385072-16-8EN

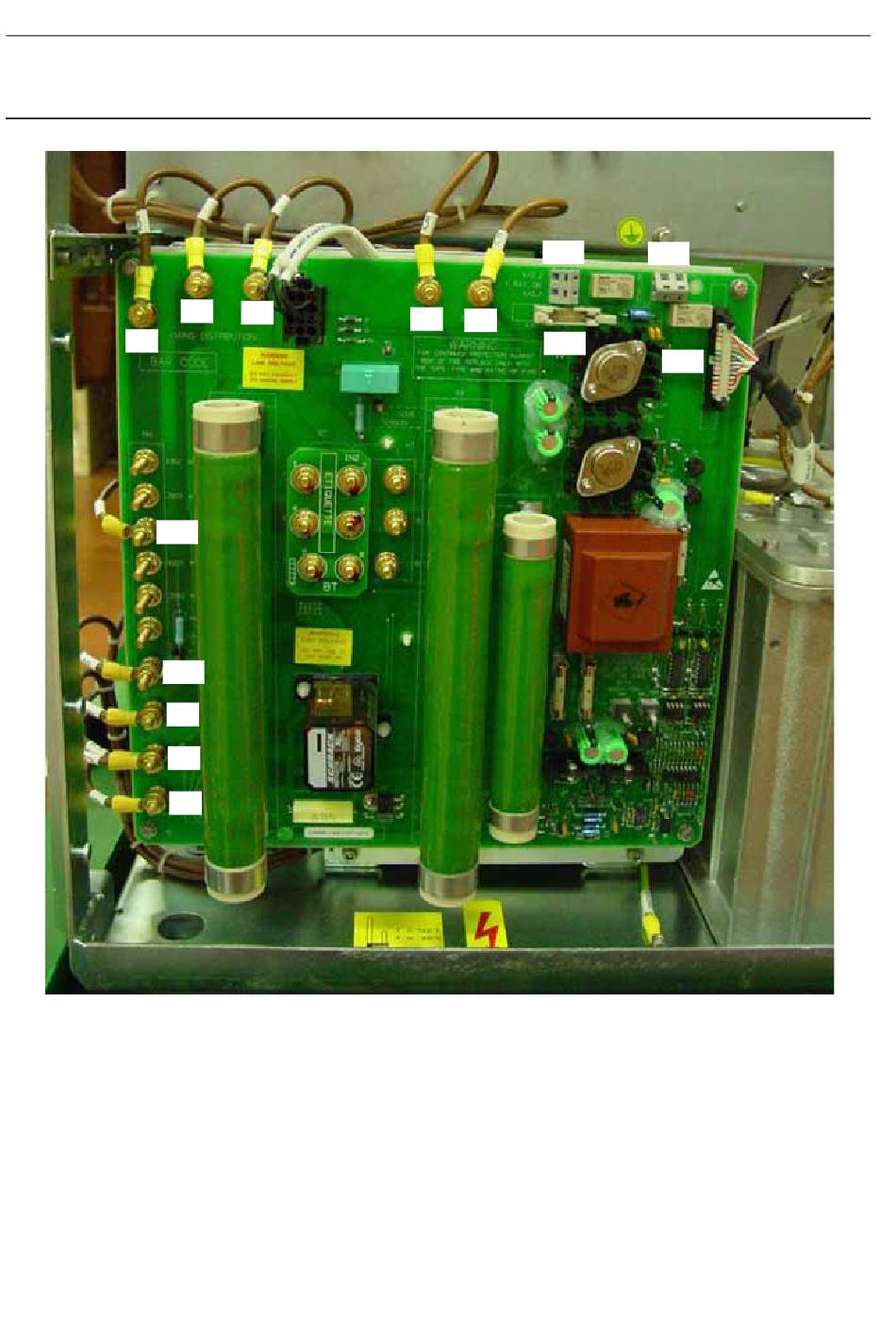

Job Card D/R A411 - Mains Distribution Board 200-PL1
XJ13
XJ12
XJ6
XJ7
XJ8
XJ9
XJ4
XJ14
XJ11
TR1-5
TR1-0
XJ3
XJ2
XJ1
4. Switch on the electrical power supply, both from the Mains Distribution Panel in the room and on the
