GE Healthcare
Revision 1
•

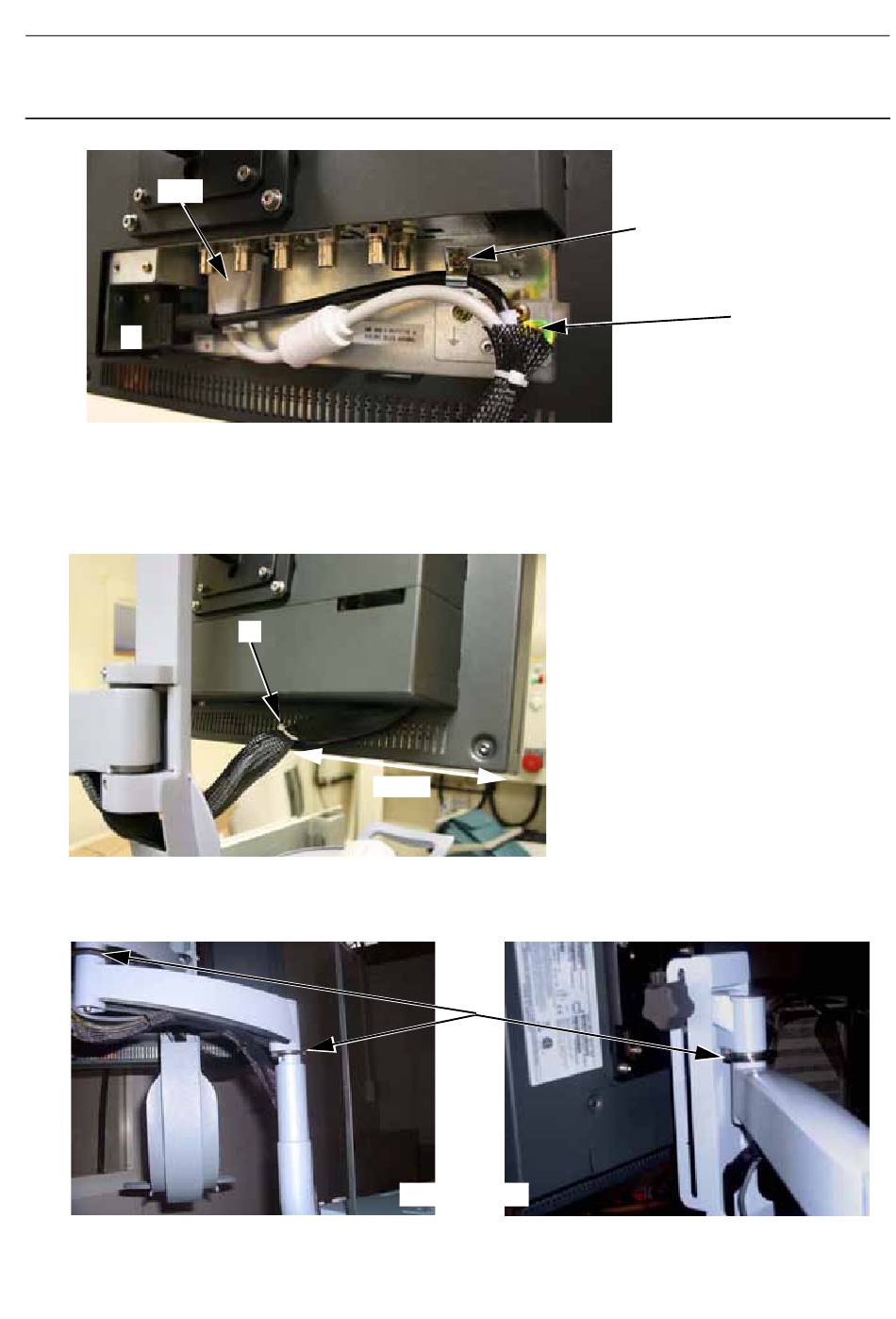

On V3/V4 Control Stations, connect the DVI cable.
DVI
7
9. Connect the power supply cable (7) and secure it with a cable clamp (8).
10. Re-install the cable protecting plate (5) while ensuring that the cables pass through the exit without
being trapped, and tighten the securing screw (4) (screwdriver).
11. At 17 cm away from the right edge (looking from behind), secure the monitor harness to the back of
the LCD monitor with a black cable tie (9).
12. Perform a monitor collision check as follows:
•
For the Ergotron B arm, check that the three stop brackets and three stop screws (10) are cor-
rectly positioned to avoid a collision with the radiation screen.
JC-DR-A-318.fm
Service Information and Procedures Class A 2385072-16-8EN
9
17 cm
Ergotron Arm
Page no. 1477
Job Card D/R A318 - LCD Monitor
10
Senographe DS
8
6
Chapter 9
- Quick Links:
- Err Sub A001 - Generator Error...
Hide quick links:
Advertisement
Table of Contents
Troubleshooting
Need help?
Do you have a question about the Senographe DS and is the answer not in the manual?
Questions and answers
G.E.Essential l have recently bought What is the full weight.of the mamo Full weight of the console and other İtem's also measurements of each item with the main machine please All this Shipping Company required
The GE Senographe DS mammography machine is shipped in three crates with the following dimensions and weights:
- Crate 1 (Gantry, Generator Cabinet, and ramp):
- Dimensions: 2066 mm (81.34 in) depth × 848 mm (33.39 in) width × 2292 mm (90.24 in) height
- Mass: 641 kg (1410.2 lbs)
- Crate 2 (Control Station):
- Dimensions: 1110 mm (43.70 in) depth × 770 mm (30.31 in) width × 1850 mm (72.83 in) height
- Mass: 210.5 kg (464.07 lbs) for truck transport (without side covers and lid)
- Mass: 223.5 kg (492.73 lbs) for plane/boat transport (with side covers and lid)
- Crate 3 (Detector):
- Dimensions: 872 mm (34.33 in) depth × 2270 mm (89.37 in) width × 260 mm (10.24 in) height
- Mass: 104.4 kg (229.68 lbs)
### Total Mass:
- For truck transport: 641 + 210.5 + 104.4 = 955.9 kg (2104.95 lbs)
- For plane/boat transport: 641 + 223.5 + 104.4 = 968.9 kg (2133.61 lbs)
These values include the gantry, generator cabinet, control station, detector, and all related components.
