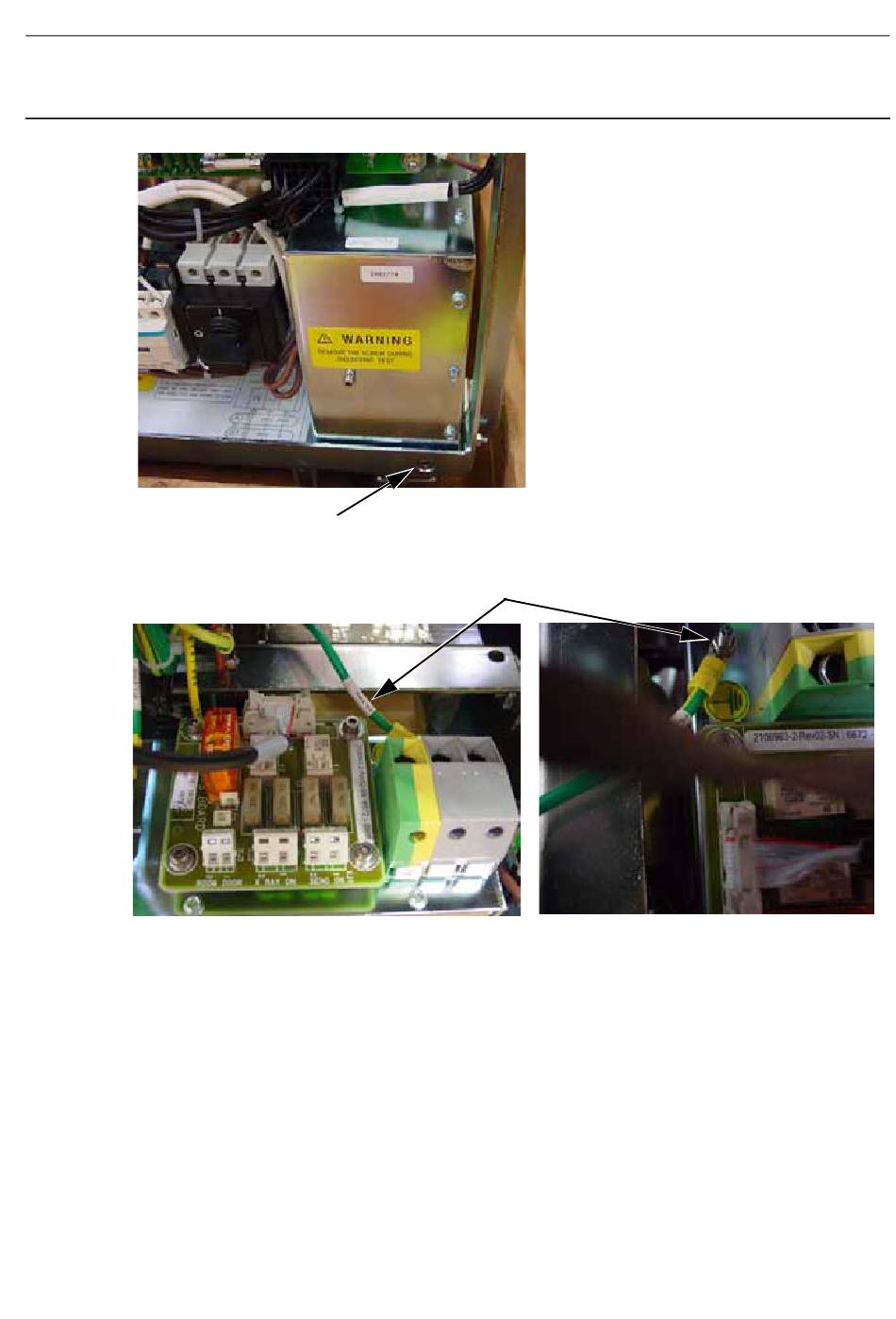

(3 mm allen wrench).
4. Connect the earth cable lablelled FILTRE (3) to the Power Line Filter (4 mm open ended wrench).
5. Carefully place the Generator Relay board (that you removed from the faulty Power Line Filter) on
the new Power Line Filter. Ensure that the holes for the four allen screws line up with the four threads
JC-DR-A-414.fm
Service Information and Procedures Class A 2385072-16-8EN
2
Page no. 1621
Job Card D/R A414 - Power Line Filter Box
3
Senographe DS
Chapter 9
