Job Card D/R A318 - LCD Monitor

1 SUPPLIES
1. Examine the label on the rear of the LCD Monitor connected to the Senographe system to determine
whether which monitor exists.

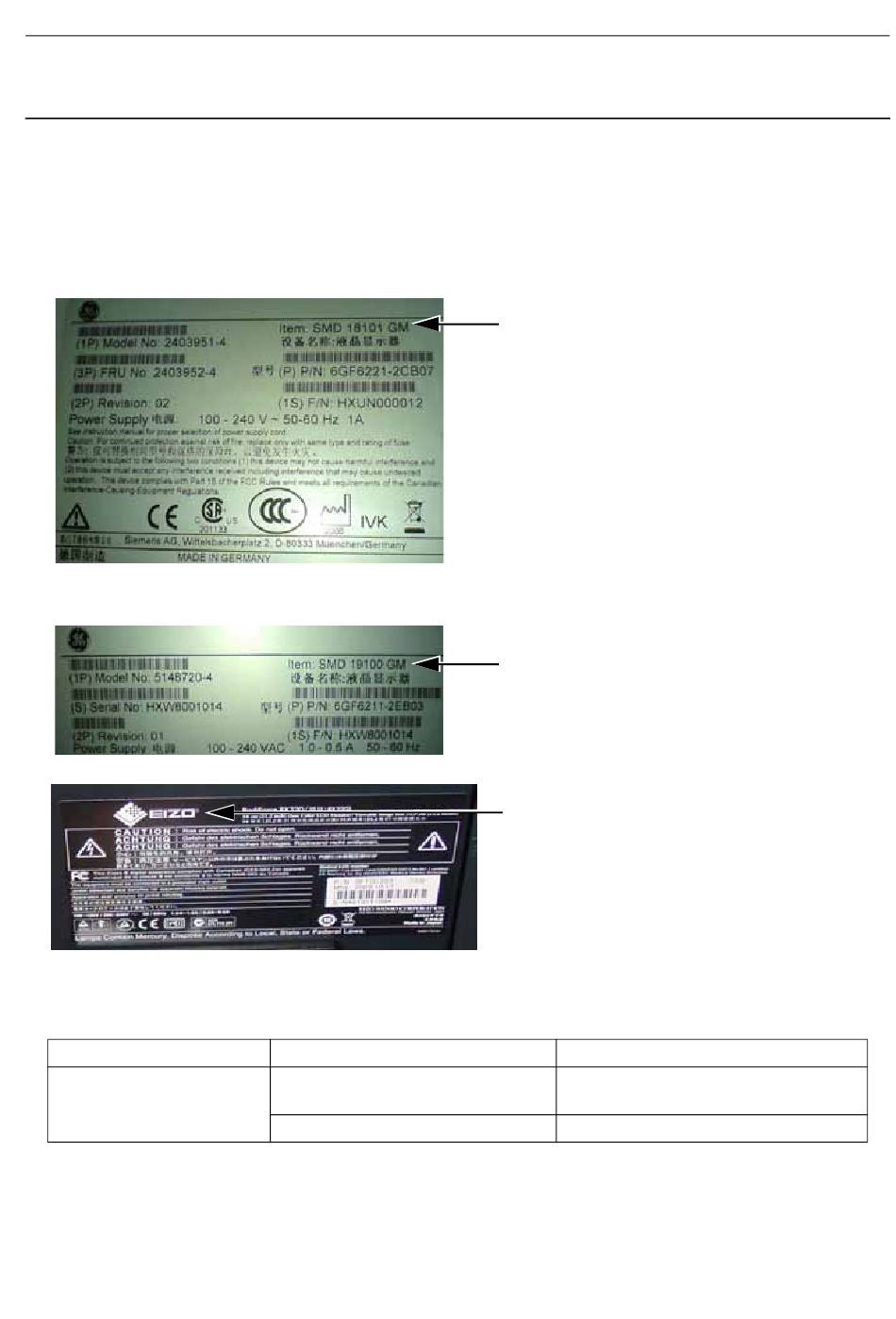

18" LCD Monitor Label
19" LCD Monitor Label
21" 3MP LCD Monitor Label
2. Order the appropriate LCD Monitor as follows:
ADS Version
Below 53.40
(pre-Penduick)
JC-DR-A-318.fm
Service Information and Procedures Class A 2385072-16-8EN
Existing Monitor
18" LCD Monitor (2403952-4)
19" LCD Monitor (5148720-4)
Page no. 1469
Job Card D/R A318 - LCD Monitor
18" LCD Monitor has:
• 18 as the first two numbers after
SMD in the Item code.
• 2403951-4 as the Model No.
• 2403952-4 as the FRU No.
19" LCD Monitor has:
• 19 as the first two numbers after
SMD in the Item code.
• 5148720-4 as the Model No.
21" LCD Monitor has EIZO on the label.
New Monitor
19" LCD Monitor with BNC connectors
(5397967)
19" LCD Monitor (5148720-4)
