GE Senographe DS Manual page 1180

GE Healthcare
Revision 1
Job Card D/R A205 - Lift Motor
5 PREREQUISITES

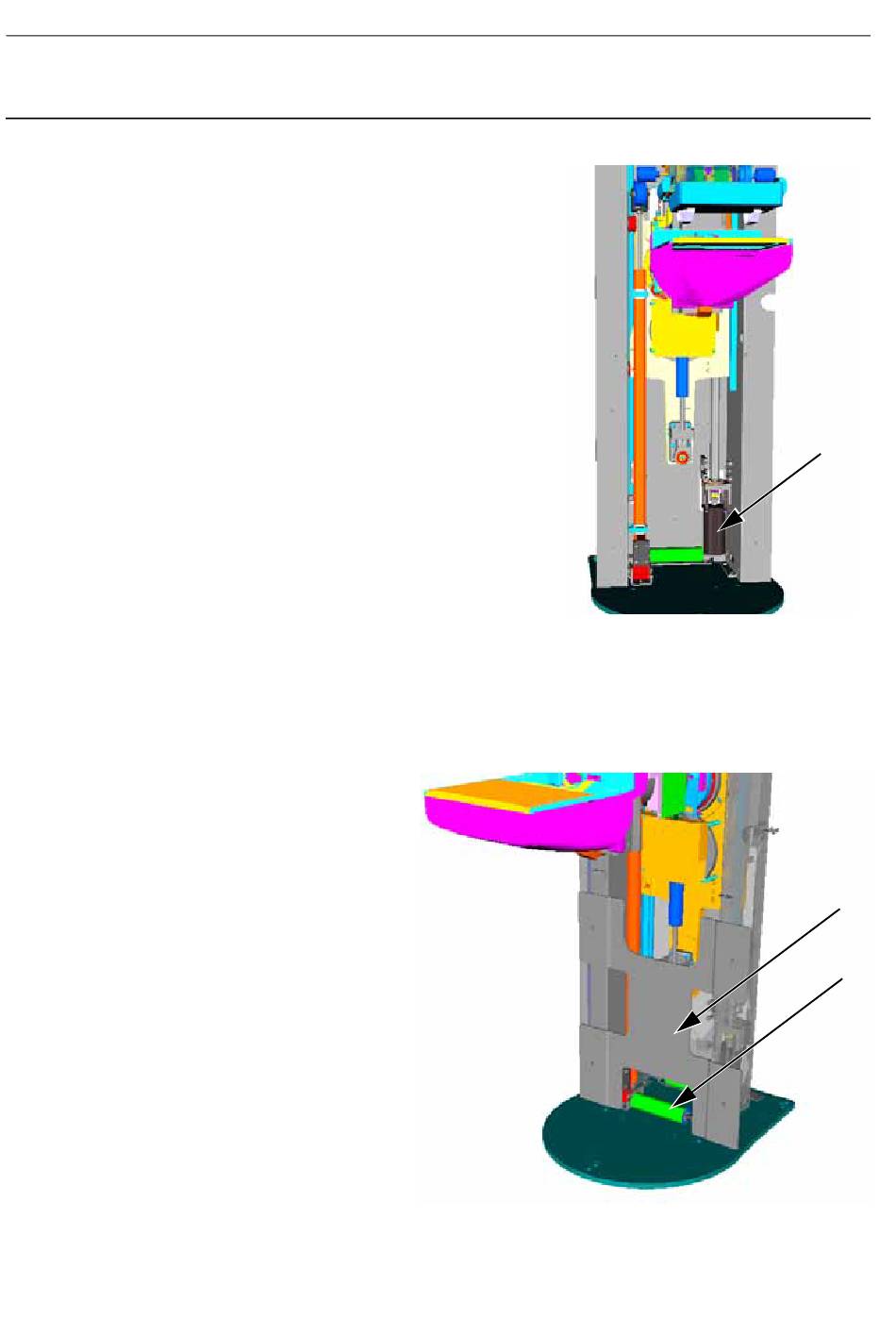

• Raise the column as required for access to the lift motor (1).
• Switch off the system power.
• Remove the front and the column covers (refer to
A044 - Remove/Reinstall Gantry Covers on page
• Loosen and remove the Gantry curtain (refer to
A208 - Gantry Curtains on page
6 PROCEDURE
6-1 Disassembly of the Lift Motor
1. Release the bolts securing the lower X plate
(2) (10 mm open-ended wrench)
2. Remove the curtain roller (3).
Chapter 9
Service Information and Procedures Class A 2385072-16-8EN
Job Card PHY
523).
Job Card D/R
1193).
Page no. 1180
Senographe DS
1
2
3
JC-DR-A-205.fm
