GE Senographe DS Manual page 1440

GE Healthcare
Revision 1
Job Card D/R A314 - External CD-RW Unit
7-2 Install and connect the new CD-RW unit
1. Power OFF the system.
2. Remove the Control Station top cover (see
Covers on page 503).

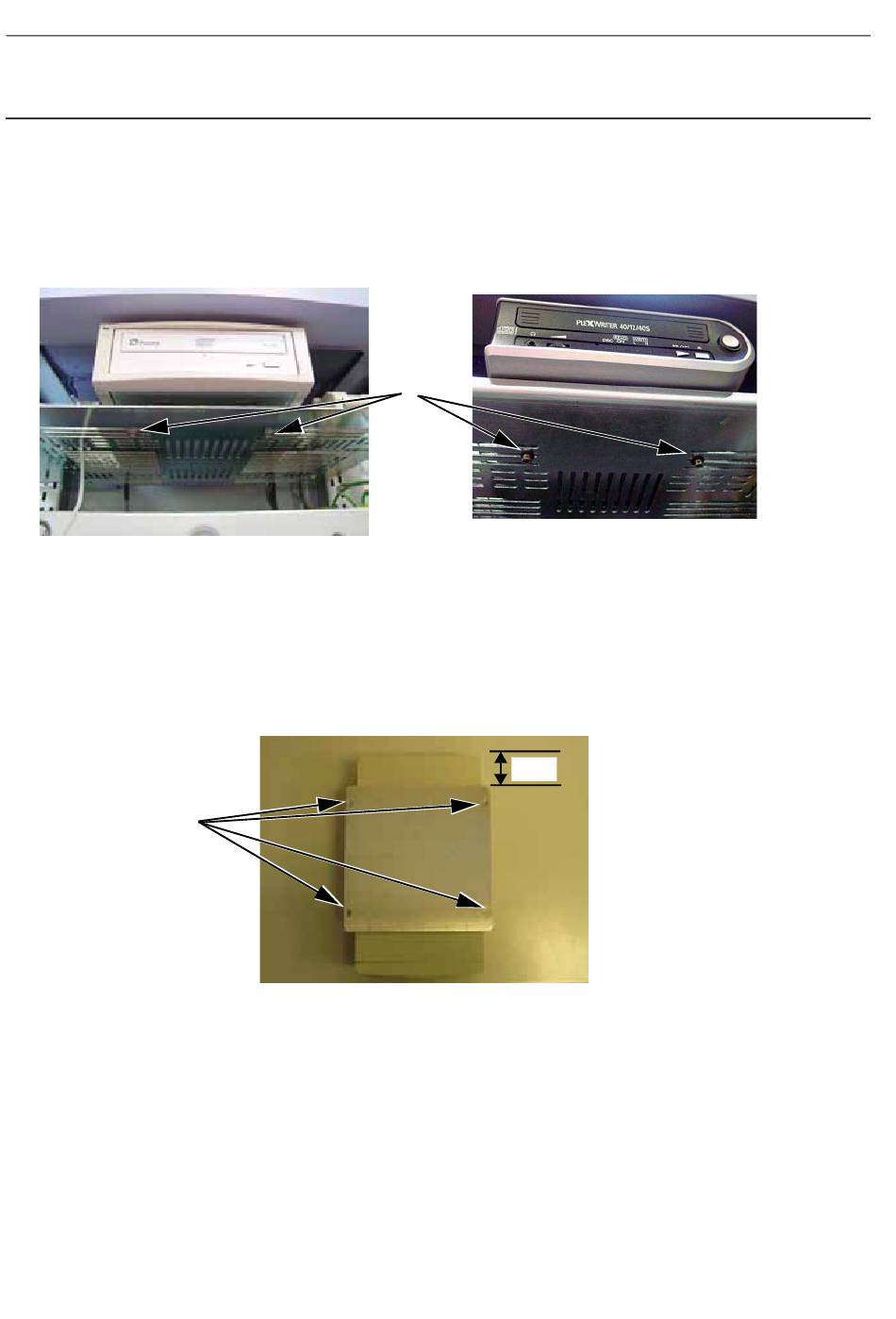

3. Untighten and remove the two screws and washers (1) (3 mm allen wrench) that secure the old CD-
RW unit to the Control Station.
Note:
Older CD-RW units that exist in some systems are not mounted in a housing unit. Whereas newer
CD-RW units that exist in systems are mounted in a housing unit.
4. Carefully slide the old CD-RW unit from the Control Station, remove the power and SCSI cable from
the back panel of the old CD-RW unit and remove it from the Control Station. Leave the power and
SCSI cable in a convenient place so that they can be attached to the new CD-RW unit.
5. For newer CD-RW units that need replacing, untighten the four screws (2) that clamp the old CD-RW
unit to the housing unit. Slide out the old CD-RW unit from the housing unit.
6. Slide the new CD-RW unit into the housing unit. Make sure that the distance between the back of the
CD-RW unit and the back of the housing unit is 4 cm.
7. Tighten the four screws (2) so that the new CD-RW unit is securely clamped in the housing unit.
Chapter 9
2
Service Information and Procedures Class A 2385072-16-8EN
Job Card PHY A040 - Remove/Reinstall Control Station
1
4 cm
Page no. 1440
Senographe DS
JC-DR-A-314.fm
