Job Card D/R A202 - Upper Optical Fork
6 PROCEDURE
6-1 Disassembly of Upper Optical Fork
1. Release the four bolts securing the lower X plate (10 mm open-ended wrench).

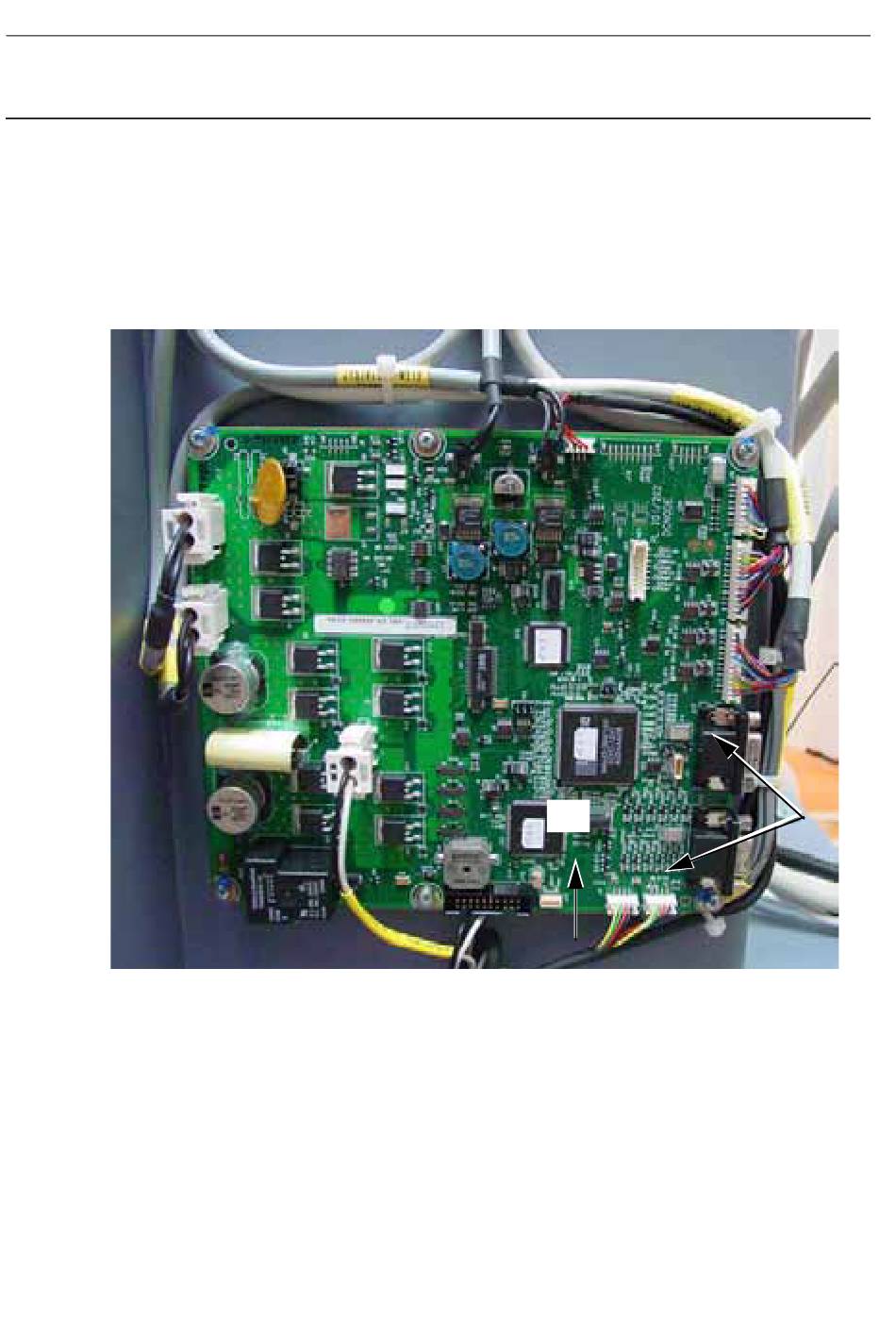

2. Disconnect the Upper Optical Fork cable (1) labeled J4/PL201 - W201 from the J4 connector on the
Lift Board.
3. Carefully cut the cable ties (2) to unattach the Upper Optical Fork cable labeled J4/PL201 - W201
from the rest of the cables running up the right-hand side of the Lift Board.
4. Release the two screws securing the lower optical fork in order to free the Upper Optical Fork cable
(W201) (2.5 mm allen wrench).
Chapter 9
Service Information and Procedures Class A 2385072-16-8EN
Page no. 1168
