Job Card ELE A043 - AWS Monitor Calibration
8-3
Preliminary Configuration Checks for 19" Monitors
1. Unlock the OSD (see
necessary.
2. Press the Key1 button to access the OSD main menu, then keep pressing the Key1 button until Ser-
vice level 2 is selected.

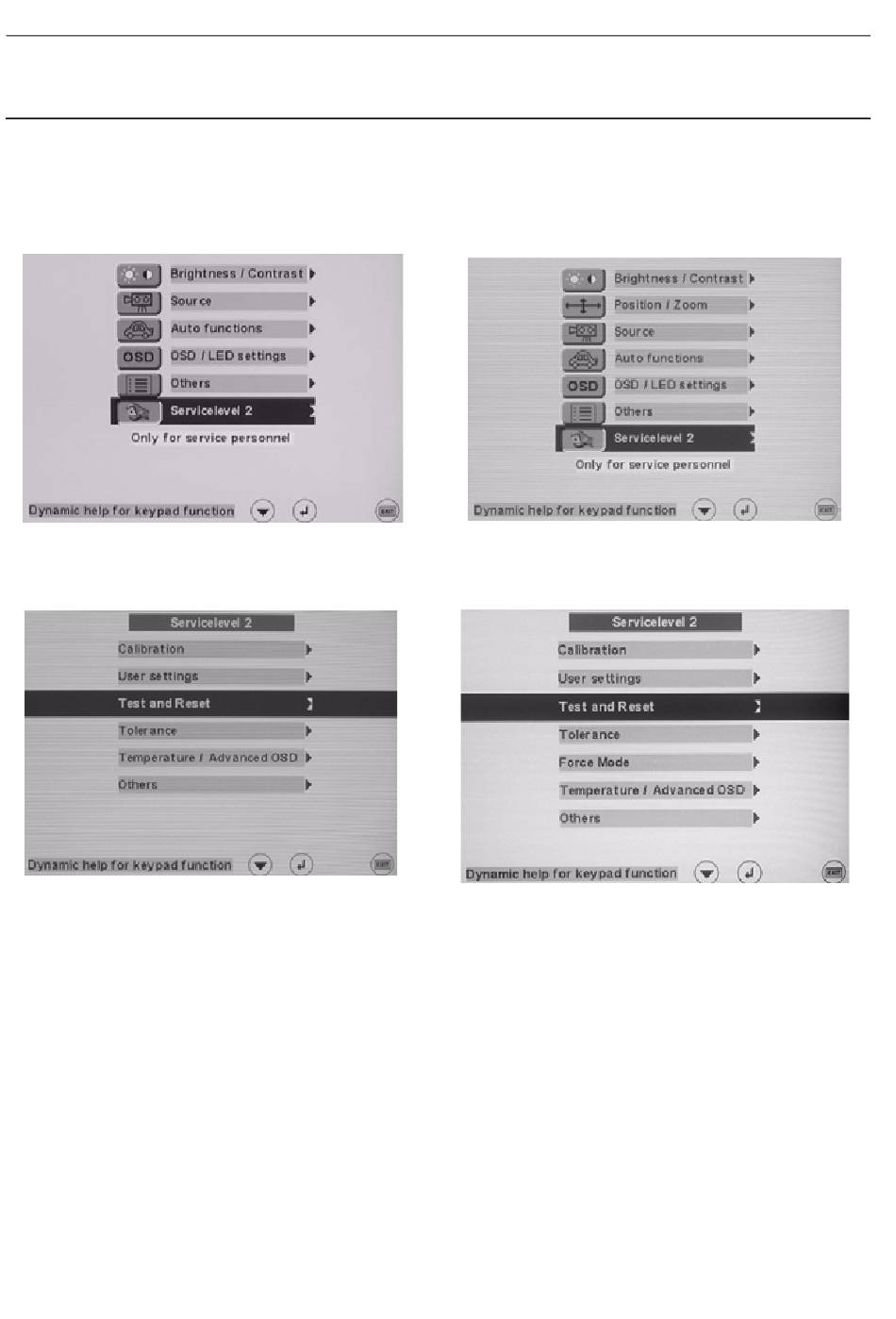

With monitor connected via DVI (V3/V4 CS)
3. Press the Key2 button once, then immediately press and hold the Key3 button until the Service level
2 menu re-appears as shown below.
With monitor connected via DVI (V3/V4 CS)
4. From the Service level 2 menu, keep pressing the Key1 button until Test and Reset is selected, and
Chapter 7
Service Information and Procedures Class A 2385072-16-8EN
section
8-2) and move the OSD to a convenient position (see
With monitor connected via BNC (V1/V2 CS)
With monitor connected via BNC (V1/V2 CS)
Page no. 744
Senographe DS
section
8-5) if
JC-ELE-A-043.fm
