GE Healthcare
Revision 1

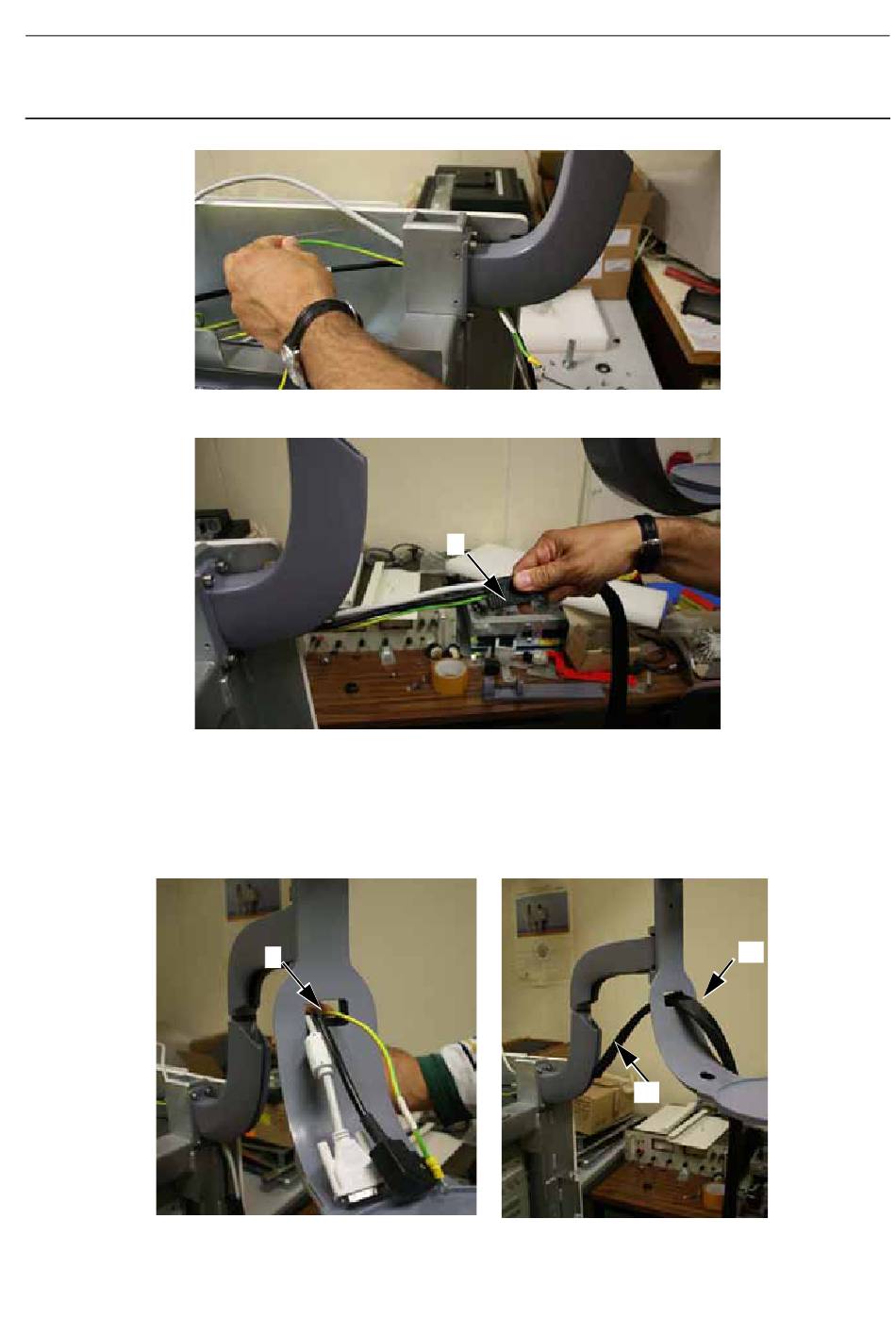

e. Thread the ground cable through the opening of the rotative arm support.
3. Thread the monitor cables (8) through the harness. Ensure that the monitor cables do not cross each
other, as shown below.
4. Put the harness through the opening of the monitor support (9). To do this, pull the harness back
from the monitor cables and insert the monitor cables through the opening of the monitor support in
the following order:
•
Power cable
•
DVI video cable (for V3/V4 Control Stations) or BNC video cables (for V2 Control Stations)
•
Ground cable
JC-DR-A-319.fm
Service Information and Procedures Class A 2385072-16-8EN
9
Page no. 1497
8
Senographe DS
Job Card D/R A319 - Rotative Arm
10
10
Chapter 9
- Quick Links:
- Err Sub A001 - Generator Error...
Hide quick links:
Advertisement
Table of Contents
Troubleshooting
Need help?
Do you have a question about the Senographe DS and is the answer not in the manual?
Questions and answers
G.E.Essential l have recently bought What is the full weight.of the mamo Full weight of the console and other İtem's also measurements of each item with the main machine please All this Shipping Company required
The GE Senographe DS mammography machine is shipped in three crates with the following dimensions and weights:
- Crate 1 (Gantry, Generator Cabinet, and ramp):
- Dimensions: 2066 mm (81.34 in) depth × 848 mm (33.39 in) width × 2292 mm (90.24 in) height
- Mass: 641 kg (1410.2 lbs)
- Crate 2 (Control Station):
- Dimensions: 1110 mm (43.70 in) depth × 770 mm (30.31 in) width × 1850 mm (72.83 in) height
- Mass: 210.5 kg (464.07 lbs) for truck transport (without side covers and lid)
- Mass: 223.5 kg (492.73 lbs) for plane/boat transport (with side covers and lid)
- Crate 3 (Detector):
- Dimensions: 872 mm (34.33 in) depth × 2270 mm (89.37 in) width × 260 mm (10.24 in) height
- Mass: 104.4 kg (229.68 lbs)
### Total Mass:
- For truck transport: 641 + 210.5 + 104.4 = 955.9 kg (2104.95 lbs)
- For plane/boat transport: 641 + 223.5 + 104.4 = 968.9 kg (2133.61 lbs)
These values include the gantry, generator cabinet, control station, detector, and all related components.
